Specifications
Brand Name :
WINEGO
Model Number :
PAE16/3-10/15
Certification :
CE,FSC,France A+
Place of Origin :
Guangzhou,china
MOQ :
100 SQM
Payment Terms :
TT :50% deposit Balance before shipment
Supply Ability :
10000sqm per week
Delivery Time :
2 weeks
Packaging Details :
15*25*15cm LOGO service for big order
Sound Absorption :
0.9 NRC
Fire-resistant :
Class A
Base Material :
MDF/A grade MGO/Solid wood
Size :
W600*L600/1200/2400mm
Thickness :
12/15/18mm
Finish :
Veneer/Melamine/HPL fire-proof/PU Paint
Application :
Offices, Auditoriums, Studios, etc.
Customization :
Perforation size and pattern customization available
Description

High NRC Natural Veneer Perforated Acoustic Wood Panels for Commercial Office

Description:

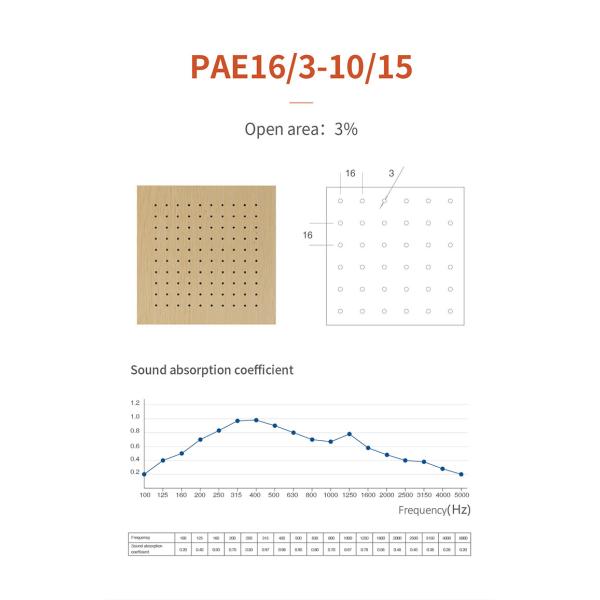

The high NRC natural veneer perforated acoustic wood panels are an advanced sound-absorbing solution, featuring precisely engineered round hole structures on both the front and back of the board. These perforations are designed based on accurate scientific calculations and acoustic principles, making the panels highly effective at absorbing medium and low-frequency sounds. With an impressive NRC rating of 0.9, these panels ensure exceptional sound absorption.

Beyond their superior acoustic performance, the panels have an E1 grade eco-friendly rating and A grade fire resistance, meeting the highest standards for safety and environmental protection. Their versatile design allows for easy installation on both ceilings and walls, making them an ideal choice for commercial office spaces.

Available in a wide array of finishes and high-quality materials, the perforated acoustic wood panels not only enhance sound quality but also serve as sophisticated decorative elements. This dual functionality provides customers with diverse options to meet their acoustic and aesthetic needs.

Feature:

Superior Sound Absorption: Engineered specifically for medium to low frequencies, ensuring excellent acoustic performance.
19 Years of Expertise: Backed by nearly two decades of industry experience, guaranteeing high-quality products.
Eco-Friendly: Manufactured with environmentally friendly materials, ensuring a sustainable choice for builders.
Fire Resistance: Designed to meet fire safety standards, providing an added layer of protection.
Aesthetic Appeal: Combines functional acoustic performance with an attractive design, ideal for enhancing the visual appeal of any space.

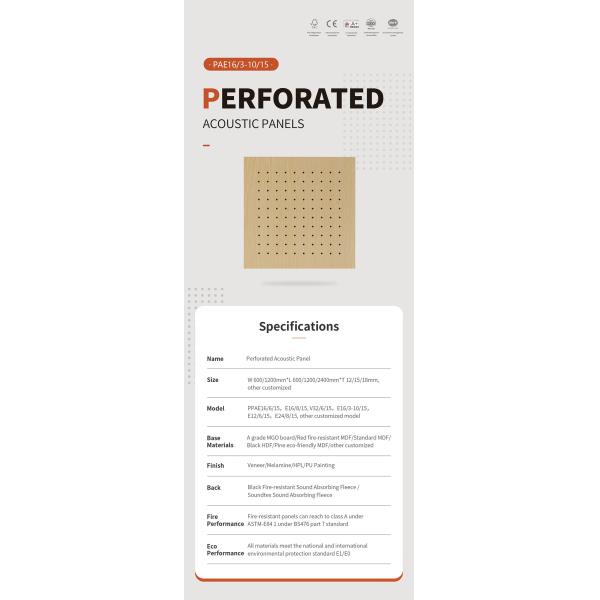

Specifications:

NAME Perforated acoustic panel
FINISH Veneer/Melamine/HPL fire-proof/Eco-friendly paint
BASE MATERIALS MDF/A grade MGO/Solid wood
PANEL COVERAGE 0.36m2/0.72m2/1.44m2
MODEL

PAE16/3-10/15,other customized model

Size

W600*L600/1200/2400*T12/15/18mm

environmental protection E1
warranty 2 years

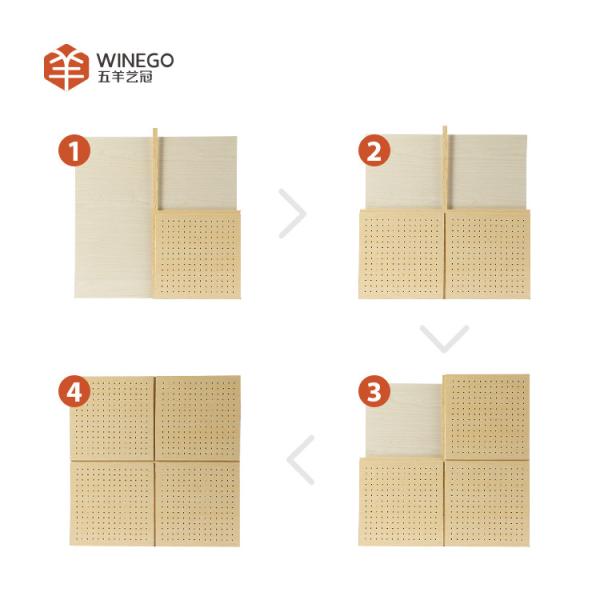

INSTALL Keel/Nail gun
MIN.ORDER 100 PCS
PACKAGE DETAILS

W600mm*L1200mm*T 15mm: 6 pieces per pack,the size of the single package is W615m*L1240mm*T130mm,46kg per pack.

W600mm*L1200mm*T 12mm: 8 pieces per pack,the size of the single package is W1340m*L2540mm*T740mm,98kg per pack.

W1200mm*L2400mm*T 15mm: 1 pieces per pack,the size of the single package is W1220m*L2445mm*T35mm,35.8kg per pack.

Delivery time 2 weeks
Original place Guangzhou,china
Payment term

TT :50% deposit
Balance before shipment

Additional service OEM
NRC 0.9
Certificate CE,FSC,France A+
Brand WINEGO
Project Solution Capability Project Design,3D model design,Graphic design,Material Production,Shipping and Deliver
Design Style Modern
After-sale Service Online technical support,Return and Replacement,Installation Instruction

High NRC Natural Veneer Perforated Acoustic Wood Panels For Commercial OfficeHigh NRC Natural Veneer Perforated Acoustic Wood Panels For Commercial OfficeHigh NRC Natural Veneer Perforated Acoustic Wood Panels For Commercial OfficeHigh NRC Natural Veneer Perforated Acoustic Wood Panels For Commercial OfficeHigh NRC Natural Veneer Perforated Acoustic Wood Panels For Commercial Office High NRC Natural Veneer Perforated Acoustic Wood Panels For Commercial OfficeHigh NRC Natural Veneer Perforated Acoustic Wood Panels For Commercial OfficeHigh NRC Natural Veneer Perforated Acoustic Wood Panels For Commercial OfficeHigh NRC Natural Veneer Perforated Acoustic Wood Panels For Commercial OfficeHigh NRC Natural Veneer Perforated Acoustic Wood Panels For Commercial OfficeHigh NRC Natural Veneer Perforated Acoustic Wood Panels For Commercial Office

Application:

Music Halls:Superior sound absorption enhances the audio quality for performances and events, ensuring a rich and immersive sound experience.

Religious Buildings: Improve speech intelligibility and overall acoustics, making it easier for congregants to hear and understand services and events.

Hotels:Reduce noise levels to create a quieter, more peaceful environment for guests, enhancing their overall comfort and satisfaction during their stay.

High NRC Natural Veneer Perforated Acoustic Wood Panels For Commercial OfficeHigh NRC Natural Veneer Perforated Acoustic Wood Panels For Commercial OfficeHigh NRC Natural Veneer Perforated Acoustic Wood Panels For Commercial OfficeHigh NRC Natural Veneer Perforated Acoustic Wood Panels For Commercial OfficeHigh NRC Natural Veneer Perforated Acoustic Wood Panels For Commercial OfficeHigh NRC Natural Veneer Perforated Acoustic Wood Panels For Commercial OfficeHigh NRC Natural Veneer Perforated Acoustic Wood Panels For Commercial OfficeHigh NRC Natural Veneer Perforated Acoustic Wood Panels For Commercial OfficeHigh NRC Natural Veneer Perforated Acoustic Wood Panels For Commercial OfficeHigh NRC Natural Veneer Perforated Acoustic Wood Panels For Commercial OfficeHigh NRC Natural Veneer Perforated Acoustic Wood Panels For Commercial OfficeHigh NRC Natural Veneer Perforated Acoustic Wood Panels For Commercial Office
