50KVA SBW Automatic Voltage Stabilizer For industry with CE Certificate
50KVA SBW Automatic Voltage Stabilizer For industry with CE Certificate
50KVA SBW Automatic Voltage Stabilizer For industry with CE Certificate
50KVA SBW Automatic Voltage Stabilizer For industry with CE Certificate
50KVA SBW Automatic Voltage Stabilizer For industry with CE Certificate
50KVA SBW Automatic Voltage Stabilizer For industry with CE Certificate
Specifications
Brand Name :
Modern
Model Number :
SBW
Certification :
CE,ISO 9001
Place of Origin :
China
MOQ :
1
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
500 unit/month
Delivery Time :
30 days
Packaging Details :
Wooden Packing
Capacity :
50KVA
Input voltage :
260-450V
Output voltage :
380V
Weight :
88KG
Dimension :
280*820*560mm
Frequency :
50/60hz
Description

50KVA SBW Automatic Voltage Stabilizer For industry with CE Certificate

Quick Detail:

Capacity 50KVA
Certificate CE
Model SBW
Phase Three Phase

Description:

Voltage regulation problems account for more than 90% of the power quality problems seen at most sites. The MODERN Voltage regulators provide protection against mains power sags, surges and brownouts. It is ideal for geographical regions that are subject to inconsistencies in the mains supply, such as Africa, Asia and certain parts of Europe.

Each regulator has a wide input voltage tolerance, and has been designed to provide the ultimate reliability in hostile environments, where the quality of the mains supply cannot be guaranteed.

Applications:

BROADCAST: Regulation for broadcast transmitter sites and studios.

COMMERCIAL: High-rise building, elevator control, large A/C chillers, lighting, and other sensitive critical systems.

INDUSTRIAL: Industrial automation, process control, CNC, factory robotics, heavy load machinery.

MEDICAL: X-ray, CT scanner, MRI system, Radiation therapy machine, other medical imaging equipments.

TELECOM: Mobile base stations, exchanges stations, control centers and transmission relay stations, .

Specifications:

Input Voltage

260-450V
Output Voltage 380V
Supply Frequency 50/60Hz
Insulation Resistance ≥2MΩ
Voltage Regulation Mode Independent phase regulation for three phase
Waveform Distortion nil
Insulation Class H class

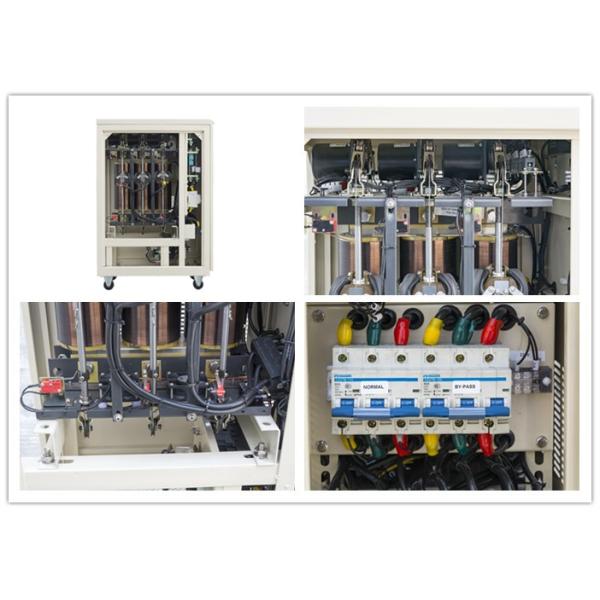

Method of Voltage Regulation Regulation transformer with servomotor
Insulated Strength Three phase: 2500V/1min without puncture
Efficiency >97% on full load
Overload Rating Withstand 200% overload in short time
Protection class IP20(indoor), outdoor type on request
Electrical safety CE equivalent
Operational Temperature -20 °C to +45 °C
Functions Power-on style, Malfunction protection, Short-circuit protection, Lack of phase protection, Over voltage shutdown, Under voltage shutdown, Safe start
