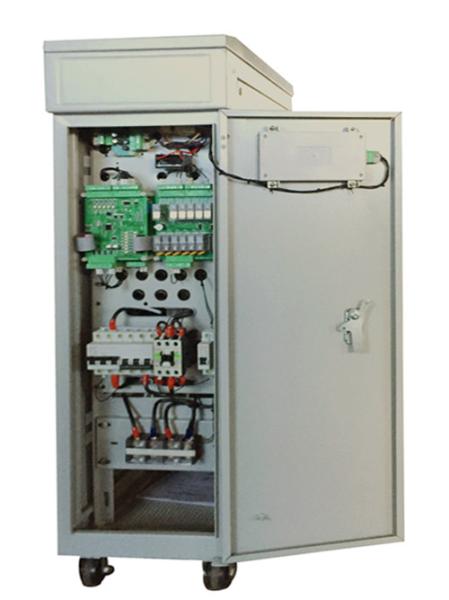

100KVA 380V AC Industrial Automatic Voltage Regulator Three Phase
100KVA 380V AC Industrial Automatic Voltage Regulator Three Phase
100KVA 380V AC Industrial Automatic Voltage Regulator Three Phase
100KVA 380V AC Industrial Automatic Voltage Regulator Three Phase
Specifications
Brand Name :
Modern
Model Number :
SBW
Certification :
CE,ISO 9001
Place of Origin :
China
MOQ :
1
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
500 unit/month
Delivery Time :
30 days
Packaging Details :
Wooden Packing
Capacity :
100KVA
Votage Stability Range :
-2%~+2%
Weight :
153Kg
Current type :
AC
Standard :
CE, ISO9001 -2008
Input Voltage :
380V+/-20%
Description

100KVA 380V AC Industrial Automatic Voltage Regulator Three Phase,Latest AVR Technology Industrial Modern Stabilizer


Overview:

The MODERN range of AC Power Conditioner(Voltage Stabilizer/Voltage Regulator) are universally
recognized as the finest range of servo- controlled voltage stabilizers.

The units couple exceptional
performance with unequalled build quality to provide an unmatched combination of reliability and
versatility.

The units are designed to correct power quality problems like brownouts, surges,over- voltage, sags, voltage imbalance, unbalanced current, line noise etc. In the main power supply.

Column-Type Variable Transformer based voltage regulator, with single and three phase units available, it provides a continuously adjustable output voltage for inputs from 220 to 600V. Utilizes a unique roller carbon brush design to create the most dependable and maintenance-free regulatoravailable.

Voltage Regulator Features:

  • Extremely wide voltage regulation range
  • Maintenance free roller type carbon brush
  • Individual regulation with unique small dimension
  • Maximum capacity up to 2,000KVA
  • Long MTBF time
  • Reliable and quiet servomotors
  • Wheels mounted for easy installation
  • Start up delay to prevent over current inrush
  • Isolation transformer on request
  • Indoor or outdoor version on request


Technical parameter
Input current (A): Correlation to the rated capacity
Input voltage (V): 380VAC+/-20% optional
Output voltage (V): 380VAC+/-5% optional
Phase number: Three phase
Insulated strength: 2000V/1 Min does not have the puncture
Waveform distortion: ≤ 0.1%
Working frequency (Hz): 50~60
Constant voltage precision: +/-5% adjustable

Input Voltage SBW
380±15%,20%, 25%30%,50%
Output Voltage (Preset at 1.5%)380Vac±1-5%
Efficiency>98%
Precision1-5%
Frequency47-53Hz
Response Time<0.5S/20V(Line Voltage)
Insulated Strength2500V/1 minute without puncture
Insulated Resistance>2MΩ
Wave DeformationNil
Isolation transformerOptional
Surge ProtectionOptional
