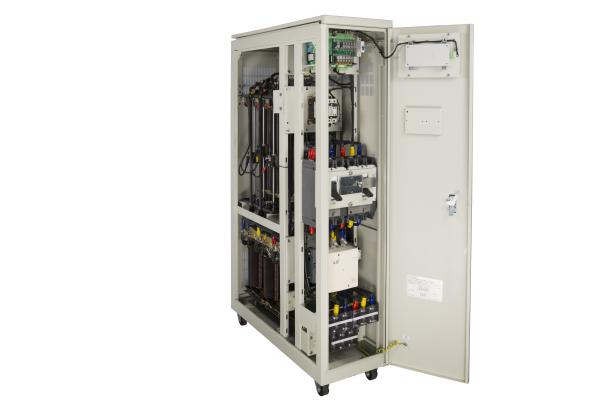

150KVA 380V 3 Phase Voltage Regulator For Telecom Appliances
150KVA 380V 3 Phase Voltage Regulator For Telecom Appliances
150KVA 380V 3 Phase Voltage Regulator For Telecom Appliances
150KVA 380V 3 Phase Voltage Regulator For Telecom Appliances
150KVA 380V 3 Phase Voltage Regulator For Telecom Appliances
150KVA 380V 3 Phase Voltage Regulator For Telecom Appliances
150KVA 380V 3 Phase Voltage Regulator For Telecom Appliances
150KVA 380V 3 Phase Voltage Regulator For Telecom Appliances
150KVA 380V 3 Phase Voltage Regulator For Telecom Appliances
150KVA 380V 3 Phase Voltage Regulator For Telecom Appliances
Specifications
Brand Name :
Modern
Model Number :
SBW
Certification :
CE,ISO 9001
Place of Origin :
China
MOQ :
1
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
500 unit/month
Delivery Time :
30 days
Packaging Details :
Wooden Packing
Dimension :
320×1470×850mm
Capacity :
100KVA
Votage Stability Range :
-2%~+2%
Weight :
337Kg
Export Markets :
Global
Description

150KVA 380V 3 Phase Voltage Regulator For Telecom Appliances​

Description:

DBW SBW compensated voltage stablilizer is a contact adjustable automatic voltage compen-sation high-power regulating power device. When voltage from supply network is varied or dueto loading current effect, it automatically regulates the output voltage to ensure the normal func-tion of the varied of electric equipments.

Voltage Regulator Feature:

1.This series large power voltage stabilizer is an energy-saving new product developed by our company by absorbing the advanced technology of Western Europe.

2.It is provided with two systems of manual/automatic dual control,direct output and stabilizing output, with the functions of over/under-voltage protection,delay and error protection etc, it is reliable and suitable forany load.

Technical parameter

Input current (A): Correlation to the rated capacity
Input voltage (V): 380VAC+/-20% optional, 220VAC+/-20% optional
Output voltage (V): 380VAC+/-5% optional, 220VAC+/-5% optional
Phase number: Three phase single phase
Insulated strength: 2000V/1 Min does not have the puncture
Waveform distortion: ≤ 0.1%
Working frequency (Hz): 50~60
Constant voltage precision: +/-5% adjustable

Input Voltage SBW
380±15%,20%, 25%30%,50%
Output Voltage (Preset at 1.5%) 80Vac±1-5%
Efficiency >98%
Precision 1-5%
Frequency 47-53Hz
Response Time <0.5S/20V(Line Voltage)
Insulated Strength 2500V/1 minute without puncture
Insulated Resistance >2MΩ
Wave Deformation Nil
Isolation transformer Optional
Surge Protection Optional
