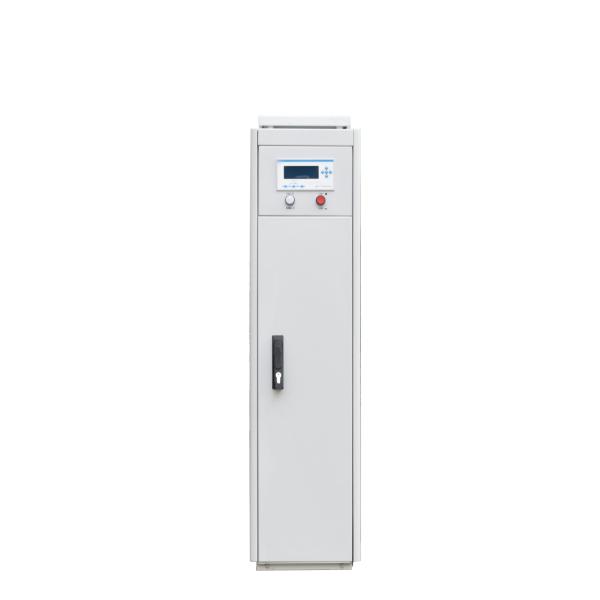

380V AC Auto Industrial Voltage Stabilizer 100KVA High Precision
380V AC Auto Industrial Voltage Stabilizer 100KVA High Precision
380V AC Auto Industrial Voltage Stabilizer 100KVA High Precision
380V AC Auto Industrial Voltage Stabilizer 100KVA High Precision
380V AC Auto Industrial Voltage Stabilizer 100KVA High Precision
380V AC Auto Industrial Voltage Stabilizer 100KVA High Precision
Specifications
Brand Name :
Modern
Model Number :
SBW
Certification :
CE,ISO 9001
Place of Origin :
China
MOQ :
1
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
500 unit/month
Delivery Time :
30 days
Packaging Details :
Wooden Packing
Dimension :
320×1430×850mm
Capacity :
100KVA
Votage Stability Range :
-2%~+2%
Weight :
258.9Kg
Current type :
AC
Standard :
CE, ISO9001 -2008
Description

380V AC Auto Industrial Voltage Stabilizer 100KVA High Precision

Overview:

The MODERN range of AC Power Conditioner(Voltage Stabilizer/Voltage Regulator) are universally

recognized as the finest range of servo- controlled voltage stabilizers. The units couple exceptional

performance with unequalled build quality to provide an unmatched combination of reliability and

versatility. The units are designed to correct power quality problems like brownouts, surges,over- voltage, sags, voltage imbalance, unbalanced current, line noise etc. In the main power supply. Our Power Conditioner features voltage regulation, isolation, filtering, harmonic cancellation, transient suppression, surge protection, or any combination of these in a one- box solution. Besides that, our patent voltage regulating transformer enabling us to make unique small dimension Power Conditioners especially for individual regulation.

Voltage Regulator Features:

Extremely wide voltage regulation range
Maintenance free roller type carbon brush
Individual regulation with unique small dimension
Maximum capacity up to 2,000KVA
Long MTBF time
Reliable and quiet servomotors
Wheels mounted for easy installation
Start up delay to prevent over current inrush
Isolation transformer on request
Indoor or outdoor version on request

Technical parameter
Input current (A): Correlation to the rated capacity
Input voltage (V): 380VAC+/-20% optional
Output voltage (V): 380VAC+/-5% optional
Phase number: Three phase
Insulated strength: 2000V/1 Min does not have the puncture
Waveform distortion: ≤ 0.1%
Working frequency (Hz): 50~60
Constant voltage precision: +/-5% adjustable

Input Voltage SBW
380±15%,20%, 25%30%,50%
Output Voltage (Preset at 1.5%) 380Vac±1-5%
Efficiency >98%
Precision 1-5%
Frequency 47-53Hz
Response Time <0.5S/20V(Line Voltage)
Insulated Strength 2500V/1 minute without puncture
Insulated Resistance >2MΩ
Wave Deformation Nil
Isolation transformer Optional
Surge Protection Optional
