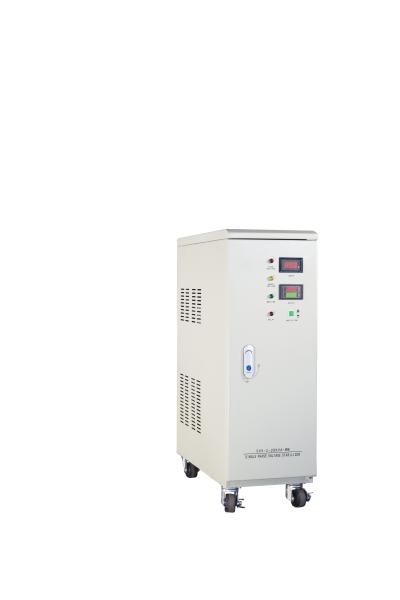

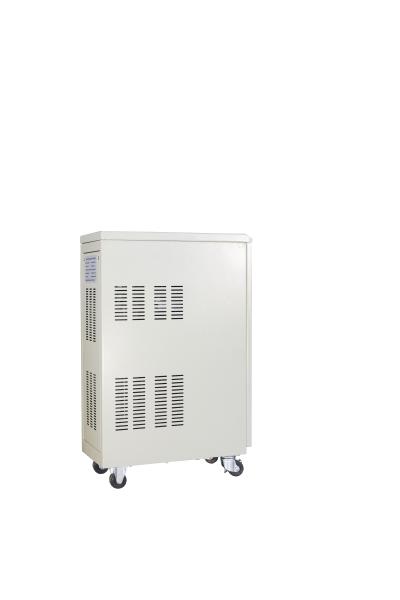

Digital LED Automatic Voltage Stabilizer 20KVA 100V 260V AC 220V
Digital LED Automatic Voltage Stabilizer 20KVA 100V 260V AC 220V
Digital LED Automatic Voltage Stabilizer 20KVA 100V 260V AC 220V
Digital LED Automatic Voltage Stabilizer 20KVA 100V 260V AC 220V
Digital LED Automatic Voltage Stabilizer 20KVA 100V 260V AC 220V
Digital LED Automatic Voltage Stabilizer 20KVA 100V 260V AC 220V
Digital LED Automatic Voltage Stabilizer 20KVA 100V 260V AC 220V
Digital LED Automatic Voltage Stabilizer 20KVA 100V 260V AC 220V
Specifications
Brand Name :
Modern
Model Number :
DBW
Certification :
CE,ISO 9001
Place of Origin :
China
MOQ :
1
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
500 unit/month
Delivery Time :
30 days
Packaging Details :
Wooden Packing
Dimension :
260×785×500mm
Capacity :
20KVA
Votage Stability Range :
-3%~+3%
Weight :
72Kg
Phase :
single phase
Description

Digital LED Automatic Voltage Stabilizer 20KVA 100V 260V AC 220V


Description:

DBW series compensation voltage stabilizer is highly beneficial when the electricity supply to the site is at a higher or lower voltage level than needed. This system stabilizes the input voltage to be stable and generates a reliable output voltage to the residential, commercial, industrial site. Therefore, it can achieve energy saving and electricity bill reduction by decreasing power consumption.

Voltage Regulator Feature:

1.This series large power voltage stabilizer is an energy-saving new product developed by our company by absorbing the advanced technology of Western Europe.
2.It is provided with two systems of manual/automatic dual control,direct output and stabilizing output, with the functions of over/under-voltage protection,delay and error protection etc, it is reliable and suitable forany load.

Applications:

BROADCAST: Regulation for broadcast transmitter sites and studios.
COMMERCIAL: High- rise building, elevator control, large A/C chillers, lighting, and other sensitive critical systems.
INDUSTRIAL: Industrial automation, process control, CNC, factory robotics, heavy load machinery.
MEDICAL: X- ray, CT scanner, MRI system,Radiation therapy machine,other medical imaging equipments.
TELECOM: Mobile base stations, exchanges stations, control centers and transmission relay stations, .

Technical parameter

Input VoltageDBW
220±15%,20%,30%,50%
Output Voltage (Preset at 1.5%)220Vac±1-5%
Efficiency>98%
Precision1-5%
Frequency47-53Hz
Response Time<0.5S/20V(Line Voltage)
Insulated Strength2000V/1 minute without puncture
Insulated Resistance>2MΩ
Wave DeformationNil
Isolation transformerOptional
Surge ProtectionOptional

Model

Dimension(W×D×H)mm

Model

Dimension(W×D×H)mm

DBW-10KVA

300×720×1270

DBW-50KVA

300×800×1370

DBW-20KVA

300×720×1270

DBW-80KVA

300×800×1370

DBW-30KVA

300×720×1270

DBW-100KVA

300×800×1370

SBW-15KVA

300×720×1270

SBW-350KVA

500×1050×1800

SBW-20KVA

300×720×1270

SBW-400KVA

500×1050×1800

SBW-30KVA

300×720×1270

SBW-500KVA

600×1250×2000

SBW-50KVA

300×800×1370

SBW-600KVA

600×1250×2000

SBW-80KVA

300×800×1370

SBW-800KVA

600×1250×2000

SBW-100KVA

300×800×1370

SBW-1000KVA

800×1800×1900

SBW-120KVA

300×800×1370

SBW-1200KVA

1000×1800×1900

SBW-150KVA

400×900×1600

SBW-1500KVA

1000×1800×1900

SBW-180KVA

400×900×1600

SBW-2000KVA

1000×1800×1900 two cabinets

SBW-200KVA

400×900×1600

SBW-3000KVA

1000×1800×1900 two cabinets

SBW-250KVA

500×1050×1800

SBW-4000KVA

1000×1800×1900 three cabinets

SBW-300KVA

500×1050×1800

SBW-5000KVA

1000×1800×1900 four cabinets
