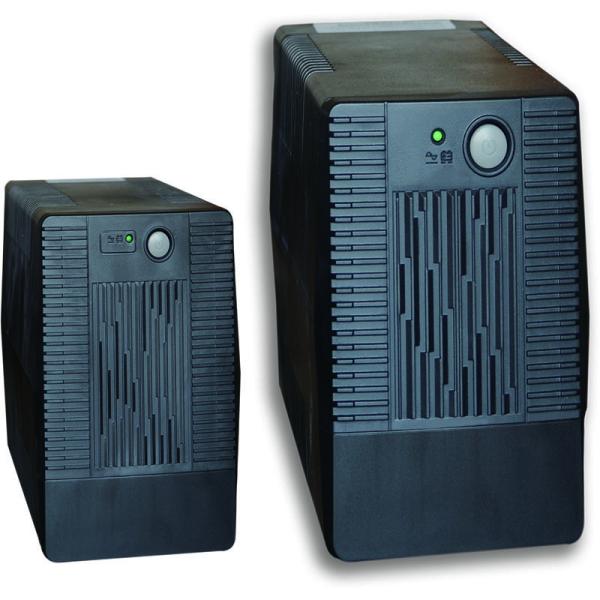

Pure Sine Wave Uninterruptible Bypass Power Supply Online Ups 50hz / 60hz Frequency
Pure Sine Wave Uninterruptible Bypass Power Supply Online Ups 50hz / 60hz Frequency
Pure Sine Wave Uninterruptible Bypass Power Supply Online Ups 50hz / 60hz Frequency
Pure Sine Wave Uninterruptible Bypass Power Supply Online Ups 50hz / 60hz Frequency
Pure Sine Wave Uninterruptible Bypass Power Supply Online Ups 50hz / 60hz Frequency
Pure Sine Wave Uninterruptible Bypass Power Supply Online Ups 50hz / 60hz Frequency
Specifications
Brand Name :
Modern
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T
Phase :
Single Phase, Three Phase
Current type :
AC, stabilizer
Usage :
SVC, To stabilize the input voltage automatically, Printer, power, CNC Machining Centers
Frequency :
50Hz/60Hz 50Hz/60Hz voltage regulator
Description

Capacity Rated Capacity 15000VA/12000W
Input Voltage 3X400VAC(Three Phase+Neutral)
Voltage Range 190-520VAC(Three Phase)@50% Load; 305-520VAC(Three Phase)@100% Load
Frequency Range 46~54Hz or 56-64Hz
Output Voltage 208/220/230/240VAC
Voltage Range(BATT. Mode) ±1%
Frequency Range(Sync Correction Range) 46~54Hz or 56-64Hz
Frequency Range(BATT. Mode) 50Hz±0.2Hz or 60Hz±0.2Hz
Crest Factor 3:1
THD ≤3% THD(Linear Load); ≤5% THD(Non-linear Load)
Transfer Time AC to DC /
Inverter to Bypass /
Waveform(BATT. Mode) Pure Sine-wave
Frequency Power Mode 89%
BATT. Mode 88%
Standard Machine Battery Type 12V/9AH
QTY 16
Charging Time 9 Hours Recover to 90% Capacity
Max. Charging Current Preset 2A, 1A/2A/4A/6A Adjustable
Charging Voltage 218.4VDC±1%
Long-lasting Machine Battery Type Depend on Applicant
QTY
Max. Charging Current Preset 2A, 1A/2A/4A/6A Adjustable
Charging Voltage 218.4VDC±1%
LCD Display Loading/Battery Capacity/Power Mode/BATT. Mode/Bypass Mode/Fault Indication
Alarm BATT. Mode Sounding every 4s
Low Battery Sounding every 1s
Overload Sounding every 0.5s
Fault continuously Sounding
Environment Humidity 0-90% RH@0-40℃(No Condensing)
Noise Less than 60dB@1 meter
Control Management Smart RS232/Optional USB Support Window 2000/2003/XP Nista/2008, Window 7/8, Linux, Unix and Mac
Optional SNMP Power Management Support SNMP & Network Management

Pure Sine Wave Uninterruptible Bypass Power Supply Online Ups 50hz / 60hz Frequency
