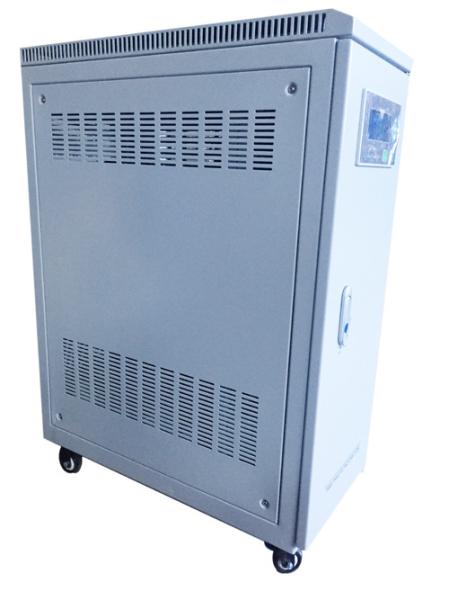

Touch Screen Three Phase Voltage Regulator HMI TSGC2 SVC 200KVA
Touch Screen Three Phase Voltage Regulator HMI TSGC2 SVC 200KVA
Specifications
Brand Name :
Modern/OEM
Certification :
CE/ISO9001
Place of Origin :
Zhejiang, China
MOQ :
1
Payment Terms :
L/C, T/T
Delivery Time :
21
Current type :
AC
Usage :
SVC, TSGC2, low power industrial machine, elevator, lift
Power Factor :
0.8 - 1
Efficiency :
>98% @ full load
Display :
LED/Touch Screen HMI
Regulation Type :
Three phase independent voltage control
Description

Description:

Wenzhou Modern Completed Electric-power Equipment Co.,LTd. is the best China voltage regulator manufacturer and supplier, as a professional company, we have our own factory. Welcome to wholesale voltage regulator, power regulator, voltage regulator, automatic voltage regulator, avr, linear voltage regulator products from us.

Voltage regulation problems account for more than 90% of the power quality problems seen at most sites. The MODERN Voltage regulators provide protection against mains power sags, surges and brownouts. It is ideal for geographical regions that are subject to inconsistencies in the mains supply, such as Africa, Asia and certain parts of Europe.

Each regulator has a wide input voltage tolerance, and has been designed to provide the ultimate reliability in hostile environments, where the quality of the mains supply cannot be guaranteed.

Applications:

BROADCAST: Regulation for broadcast transmitter sites and studios.

COMMERCIAL: High-rise building, elevator control, large A/C chillers, lighting, and other sensitive critical systems.

INDUSTRIAL: Industrial automation, process control, CNC, factory robotics, heavy load machinery.

MEDICAL: X-ray, CT scanner, MRI system, Radiation therapy machine, other medical imaging equipments.

TELECOM: Mobile base stations, exchanges stations, control centers and transmission relay stations, .

Specifications:

Capacity 200KVA
Input voltage Phase to phase: 400V ±20%
Output voltage Phase to phase: 400V ±1-5%
Frequency 50Hz
Insulation resistance ≥2MΩ
Noise <55dB
Wave deformation Nil
Insulation class of transformer H class
Wire system 3 phase 4 wires + GND
Operation time ≥80,000 hours
Method of voltage regulation Three phase independent regulation
Insulated strength Three phase: 2500V/1 min without puncture
Degree of Protection IP21
Efficiency >98%(full load)
Color of housing Beige
Package Export wooden package
Electrical safety CE equivalent
Ambient temperature operating 0°C to +55 °C
Altitude <1000m
Relative humidity <90%
Functions Malfunction protection, Short-circuit protection, Lack of phase protection, Wrong sequence protection, Over voltage protection, Under voltage protection, Overload protection, Safe start, Manual bypass, Indicating alarms.
