Acrel APM800 Network Power Meter Multifunction Meter Monitoring Power Quality Three Phase Energy Meter External Modules
Acrel APM800 Network Power Meter Multifunction Meter Monitoring Power Quality Three Phase Energy Meter External Modules
Specifications
Brand Name :
Acrel
Model Number :
APM800
Certification :
CE
Place of Origin :
China
MOQ :
1pc
Payment Terms :
T/T
Supply Ability :
5000pc/day
Delivery Time :
2-3 work days
Packaging Details :
carton
Communication :
RS485 Port MODBUS-RTU Protocol
Rated current :
AC 1A/ 5A
Rated voltage :
100V/110V400V690V
Display :
Digital LCD Display
Product name :
Three Phase Electronic RS485 Energy Meter
Description

APM series multifunction meter

Functional characteristics:

  • Large screen bright LCD
  • High-precision full power metering
  • Power Quality Analysis
  • Various electricity rate options
  • Expandable SD card event recording function and cross-line alarm
  • With multiple optional D1D0 interface and analog input and output interface
  • Various communication methods are available (RS-485, Ethernet, Profibus-DP)

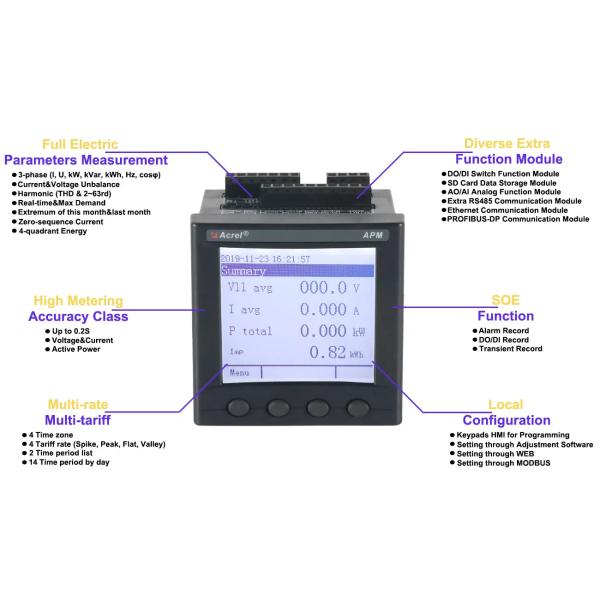

Panel description

Acrel APM800 Network Power Meter Multifunction Meter Monitoring Power Quality Three Phase Energy Meter External Modules

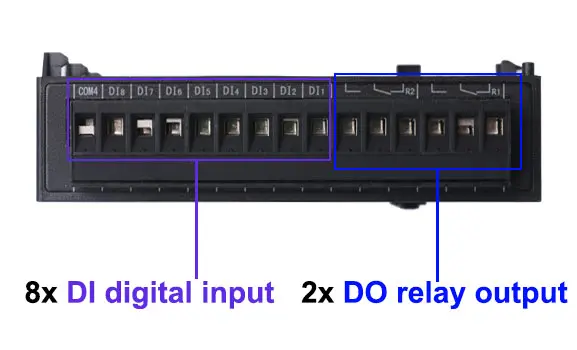

Optional modules

Acrel APM800 Network Power Meter Multifunction Meter Monitoring Power Quality Three Phase Energy Meter External ModulesAcrel APM800 Network Power Meter Multifunction Meter Monitoring Power Quality Three Phase Energy Meter External ModulesAcrel APM800 Network Power Meter Multifunction Meter Monitoring Power Quality Three Phase Energy Meter External ModulesAcrel APM800 Network Power Meter Multifunction Meter Monitoring Power Quality Three Phase Energy Meter External ModulesAcrel APM800 Network Power Meter Multifunction Meter Monitoring Power Quality Three Phase Energy Meter External Modules

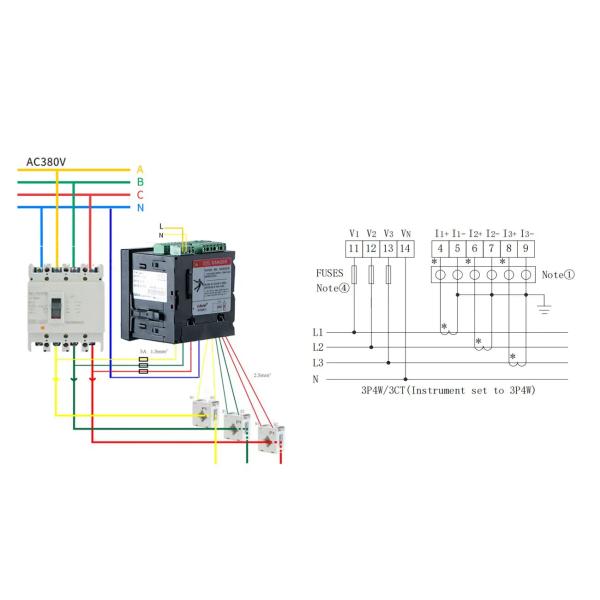

Wiring

Acrel APM800 Network Power Meter Multifunction Meter Monitoring Power Quality Three Phase Energy Meter External ModulesAcrel APM800 Network Power Meter Multifunction Meter Monitoring Power Quality Three Phase Energy Meter External Modules

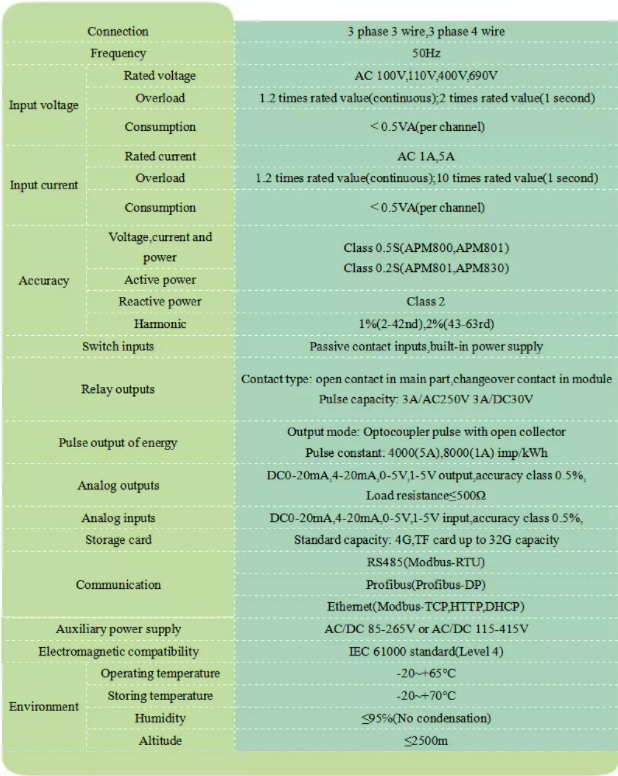

Parameters

Acrel APM800 Network Power Meter Multifunction Meter Monitoring Power Quality Three Phase Energy Meter External ModulesAcrel APM800 Network Power Meter Multifunction Meter Monitoring Power Quality Three Phase Energy Meter External Modules

Certificate

Acrel APM800 Network Power Meter Multifunction Meter Monitoring Power Quality Three Phase Energy Meter External Modules

Company

Acrel APM800 Network Power Meter Multifunction Meter Monitoring Power Quality Three Phase Energy Meter External Modules

Contact us

Acrel APM800 Network Power Meter Multifunction Meter Monitoring Power Quality Three Phase Energy Meter External Modules
