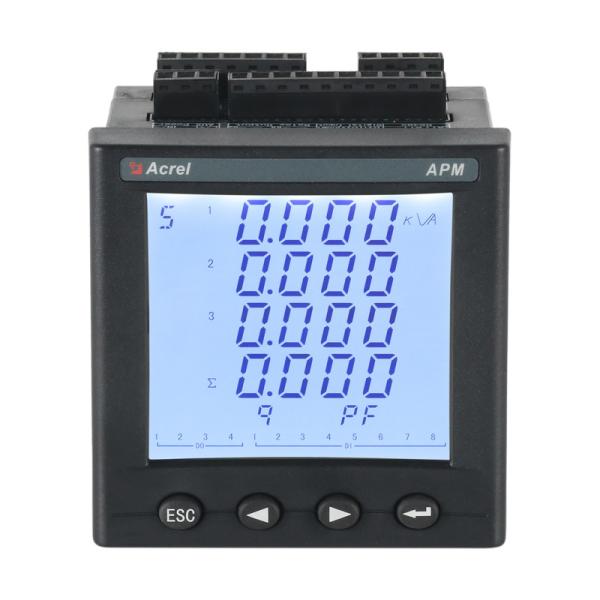

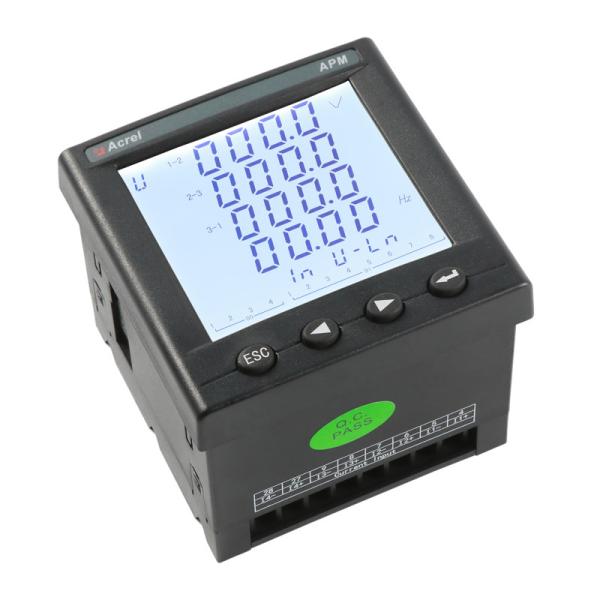

Accuracy 0.2s 50Hz 1A 5A AC Energy Meter ISO CE Certified
Accuracy 0.2s 50Hz 1A 5A AC Energy Meter ISO CE Certified
Accuracy 0.2s 50Hz 1A 5A AC Energy Meter ISO CE Certified
Accuracy 0.2s 50Hz 1A 5A AC Energy Meter ISO CE Certified
Specifications
Brand Name :
Acrel
Model Number :
APM801
Certification :
ISO/CE
Place of Origin :
Jiangsu, China
MOQ :
1
Price :
USD 355-385 PCS
Payment Terms :
L/C, T/T
Supply Ability :
2000000 per year
Delivery Time :
5-8 work days
Description

APM801 Multifunction Meter

● True RMS Measurements

● Unbalance & Phase Angles

● Demands and Multi-Tariff energy

● Max/Min Log with Timestamp

● Accuracy: 0.2s

Characteristic

Accuracy 0.2s 50Hz 1A 5A AC Energy Meter ISO CE Certified

Accuracy 0.2s 50Hz 1A 5A AC Energy Meter ISO CE Certified

Accuracy 0.2s 50Hz 1A 5A AC Energy Meter ISO CE Certified

Communication

Display

Rated U and I

Standard: RS485(Modbus-RTU)
Optional: Profibus(Profibus-DP), Ethernet(Modbus-TCP,HTTP,DHCP)

LCD display U, I, P, Q, PF, kWh and other energy consumption, power measurement, harmonic content

Voltage:AC 100V,110V,400V,690V；Current:AC 1A, 5A, support 2 mm2 line access

Function & Parameter

Connection
3 phase 3 wire, 3 phase 4 wire
Frequency
50Hz
Input Voltage
Rated Voltage
AC 100V, 110V, 400V, 690V
Overload
1.2 times rated value(continuous); 2 times rated value(1 second)
Consumption
<0.5VA(per channel)
Input Current
Rated Voltage
AC 1A, 5A
Overload
1.2 times rated value(continuous); 2 times rated value(1 second)
Consumption
<0.5VA(per channel)
Accuracy
Voltage, current and power
Class 0.5S(APM800, APM810)
Class 0.2S(APM801, APM830)
Active power
Reactive power
Class 2
Harmonic
1%(2-42nd), 2%(43-63rd)
Switch inputs
Passive contact inputs, built-in power supply
Relay outputs
Contact type: open contact in main part, changeover contact in module
Pulse capacity: 3A/AC250V, 3A/DC30V
Pulse output of energy
Output mode: Optocoupler pulse with open collector
Pulse constant: 4000(5A), 8000(1A) imp/kWh
Analog output
DC0-20mA, 4-20mA, 0-5V, 1-5V output, accuracy class 0.5%,
Load resistance≤500Ω
Analog input
DC0-20mA, 4-20mA, 0-5V, 1-5V input, accuracy class 0.5%,
Storage card
Standard capacity: 4G, TF card up to 32G capacity
Communication
RS485(Modbus-RTU), Profibus(Profibus-DP),
Ethernet(Modbus-TCP, HTTP, DHCP)
Auxiliary power supply
AC/DC 85~265V or AC/DC 115~415V
Electromagnetic compatibility
IEC 61000 standard(Level 4)
Environment
Operating temperature
-20~65℃
Storing temperature
-20~70℃
Humidity
≤95%(No condensation)
Altitude
≤2500m

LCD Display

Accuracy 0.2s 50Hz 1A 5A AC Energy Meter ISO CE Certified

Wiring

Accuracy 0.2s 50Hz 1A 5A AC Energy Meter ISO CE Certified

Typical connection

Accuracy 0.2s 50Hz 1A 5A AC Energy Meter ISO CE Certified
