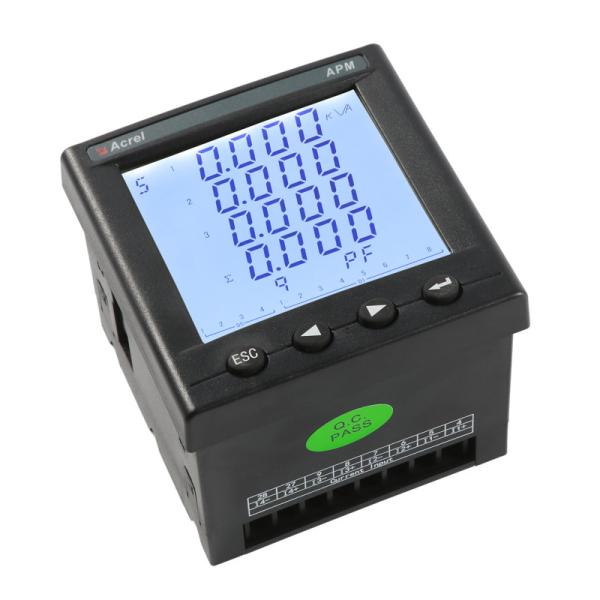

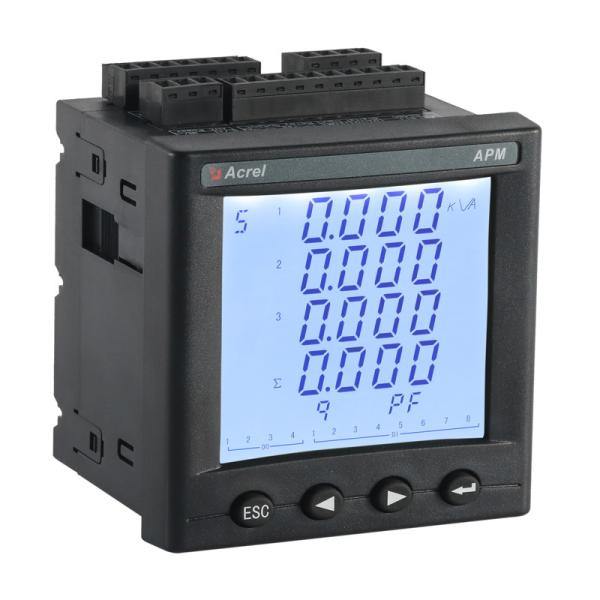

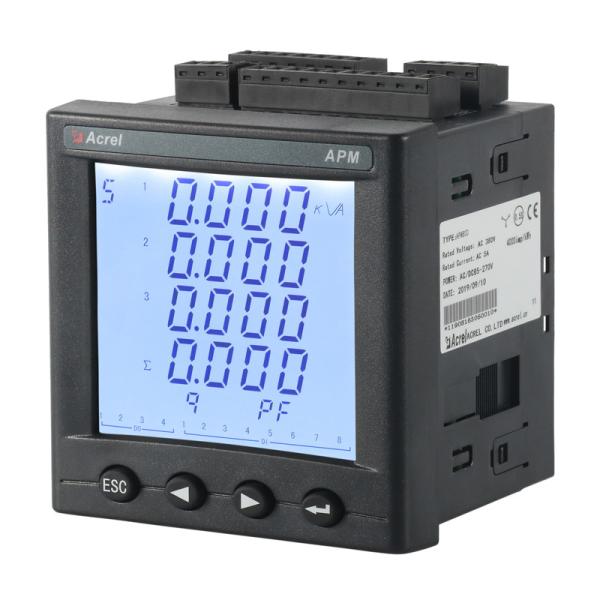

High Accuracy Class 0.5S AC Energy Meter APM810 multi function
High Accuracy Class 0.5S AC Energy Meter APM810 multi function
High Accuracy Class 0.5S AC Energy Meter APM810 multi function
High Accuracy Class 0.5S AC Energy Meter APM810 multi function
High Accuracy Class 0.5S AC Energy Meter APM810 multi function
High Accuracy Class 0.5S AC Energy Meter APM810 multi function
High Accuracy Class 0.5S AC Energy Meter APM810 multi function
High Accuracy Class 0.5S AC Energy Meter APM810 multi function
High Accuracy Class 0.5S AC Energy Meter APM810 multi function
High Accuracy Class 0.5S AC Energy Meter APM810 multi function
Specifications
Brand Name :
Acrel
Model Number :
APM810
Certification :
ISO/CE
Place of Origin :
Jiangsu, China
MOQ :
1
Price :
USD 355*385 PCS
Payment Terms :
L/C, T/T
Supply Ability :
2000000 per year
Delivery Time :
5-8 work days
Description

APM800 Multifunction Meter

● True RMS Measurements

● Unbalance & Phase Angles

● Demands and Multi-Tariff energy

● Max/Min Log with Timestamp

● Alarms and SOE Logs

● External Option module

Characteristic
High Accuracy Class 0.5S AC Energy Meter APM810 multi function High Accuracy Class 0.5S AC Energy Meter APM810 multi function High Accuracy Class 0.5S AC Energy Meter APM810 multi function
Communication Display Rated U and I

Standard: RS485(Modbus-RTU)
Optional: Profibus(Profibus-DP)

Ethernet(Modbus-TCP,HTTP,DHCP)

 LCD display U, I, P, Q, PF, kWh and other energy consumption, power measurement, harmonic content Voltage:AC 100V,110V,400V,690VCurrent:AC 1A, 5A, support 2 mm2 line access

Function

Accuracy

Voltage,current and power:class 0.5S
Active power:class 0.5S
Reactive power: class 2

Frequency

Range:45-65Hz

Auxiliary power supply

AC/DC 85V～265V or AC/DC 115～415V

Pulse output

Output mode: Optocoupler pulse with open collector;
Pulse constant:4000(5A),8000(1A) imp/kWh；

Consumption

Voltage:Power consumption:<0.5VA;

Current:Power consumption:< 0.5VA;

Auxiliary power supply:power consumption≤15VA

Installation
Panel mounted

Dimension(L*W*H)

Panel size(L×W):96*96mm

Cutout(L×W):92*92mm

Relay
3A/AC250V 3A/DC30V

Starting current
0.1%

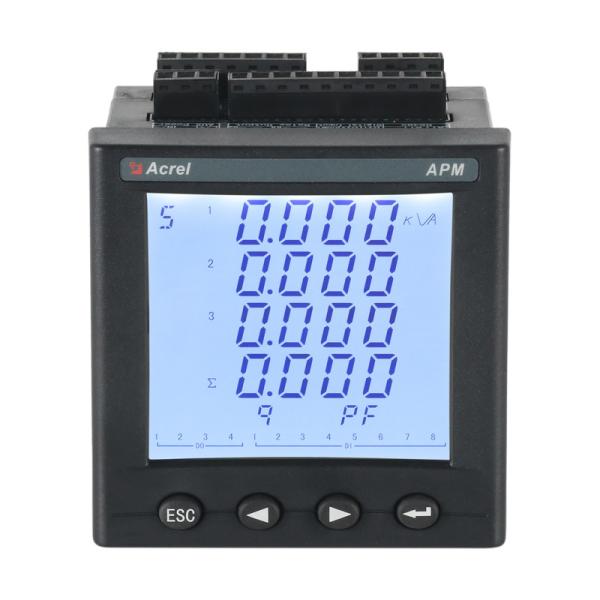

LCD Display

High Accuracy Class 0.5S AC Energy Meter APM810 multi function

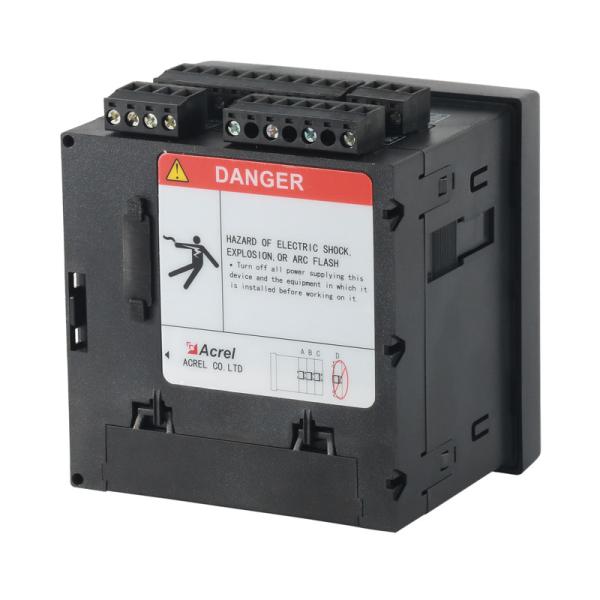

Wiring

High Accuracy Class 0.5S AC Energy Meter APM810 multi function

Typical connection

High Accuracy Class 0.5S AC Energy Meter APM810 multi function
