Specifications
Brand Name :
Acrel
Model Number :
AMC16Z-FDK48
Certification :
ISO/CE
Place of Origin :
YES
Price :
USD+100-260+pcs
Payment Terms :
L/C, T/T
Supply Ability :
6000000+pcs+per year
Delivery Time :
5-8 work days
Packaging Details :
48*45.5*20
Description

AMC16Z-FDK48 monitor the full power parameters and switch state of 48 branches of double-channel DC outlet, 1-channel RS485 communication and phase adjustment.

● Designed specifically for the power supply management of server in the data center

● A+B independent 24 circuits(48 in total)

● kWh Class 0.5

● DIN 35 mm

Characteristic

Data Center AC 220/380V Multi Circuit Energy Meter / Server Power Meter Data Center AC 220/380V Multi Circuit Energy Meter / Server Power Meter Data Center AC 220/380V Multi Circuit Energy Meter / Server Power Meter
Communication Multi-circuit power meter Rated U and I
RS485 (Modbus-RTU) A+B independent 24 circuits (48 in total), DC12V output AC 220/380V

Function

* 24 channels of each circuit of A+B independent 2 circuits the outgoing

* 1 RS485 communication

 Data Center AC 220/380V Multi Circuit Energy Meter / Server Power Meter
Data Center AC 220/380V Multi Circuit Energy Meter / Server Power Meter

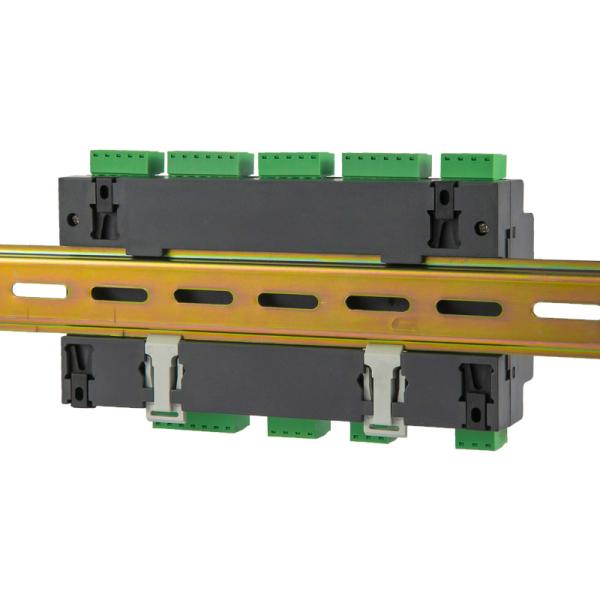

Installation:

DIN rail 35mm

Dimension(L*W*H):

180*94.3*75mm

Appearance

Data Center AC 220/380V Multi Circuit Energy Meter / Server Power Meter Data Center AC 220/380V Multi Circuit Energy Meter / Server Power Meter Data Center AC 220/380V Multi Circuit Energy Meter / Server Power Meter

Wiring

Data Center AC 220/380V Multi Circuit Energy Meter / Server Power Meter

Typical connection

Data Center AC 220/380V Multi Circuit Energy Meter / Server Power Meter

Utline Shape

Data Center AC 220/380V Multi Circuit Energy Meter / Server Power Meter

Installation Diagram

Data Center AC 220/380V Multi Circuit Energy Meter / Server Power Meter

Data Center AC 220/380V Multi Circuit Energy Meter / Server Power Meter

Product Selection

Name Pic Model Main Function

HMI

 Data Center AC 220/380V Multi Circuit Energy Meter / Server Power Meter

ATP007kt

ATP010kt

1.7 or 10 inch touch screen

2.Real-time monitoring and display voltage,current,power,energy,power quality,switch status,waveform curve and so on.

3.monitoring device alarm,communication and other parameters can be configured on the screen.

4. 2 RS485 and 1 Ethernet interface,and data can be uploaded by RS485 or RJ45.
AC incoming line monitoring module Data Center AC 220/380V Multi Circuit Energy Meter / Server Power Meter AMC16Z-ZA

1. Installation:DIN rail 35mm

2. Measurement:A+B independent 3 phase circuits, 6DI2DO,2 leakage current,1 temp. and humidity.

3. With DC 24V output power supply for outgoing line module and touch screen.

4. Communication:RS485 Modbus RTU

AC outgoing line monitoring module Data Center AC 220/380V Multi Circuit Energy Meter / Server Power Meter

AMC16Z-FAK24

AMC16Z-FAK48

1. Installation:DIN rail 35mm

2. Can measure up to 16 circuit 3 phase or 48 circuit single phase

3. DC24V power supply

4. Communication:RS485 modbus RTU
AC outgoing line current transformer Data Center AC 220/380V Multi Circuit Energy Meter / Server Power Meter AKH-0.66W

Current ratio:100A/50mA

Common Specification: 100A/50mA
DC incoming line monitoring module Data Center AC 220/380V Multi Circuit Energy Meter / Server Power Meter AMC16Z-ZD

1.Installation:DIN Rail 35mm

2.Measurement:A+B independent circuits,6DI2DO,1 temp. And humidity.

3.With DC 24V output power supply for outgoing line module and touch screen.

4.Communication:RS485 modbus RTU
DC outgoing line monitoring module Data Center AC 220/380V Multi Circuit Energy Meter / Server Power Meter

AMC16Z-FDK24

AMC16Z-FDK48

1. Installation:DIN Rail 35mm

2. Can measure up to 48 circuits DC outgoing line

3. DC24V power supply

4. Communication:RS485 modbus RTU
DC incoming line insulation monitoring module Data Center AC 220/380V Multi Circuit Energy Meter / Server Power Meter AMC16Z-ZJY

1. Installation:DIN Rail 35mm

2. Measure A+B independent DC circuit ground insulation resistance of main bus

3. DC24V power supply

4. Communication:RS485 modbus RTU
DC outgoing line insulation monitoring module Data Center AC 220/380V Multi Circuit Energy Meter / Server Power Meter AMC16Z-FJY

1. Installation:DIN Rail 35mm

2. Measure 24 circuits ground insulation resistance of DC outgoing line
DC outgoing line hall effect current sensor Data Center AC 220/380V Multi Circuit Energy Meter / Server Power Meter AHKC-BS

Current ratio:100A/5V

Common Specification: 100A/5V

Data Center AC 220/380V Multi Circuit Energy Meter / Server Power Meter
