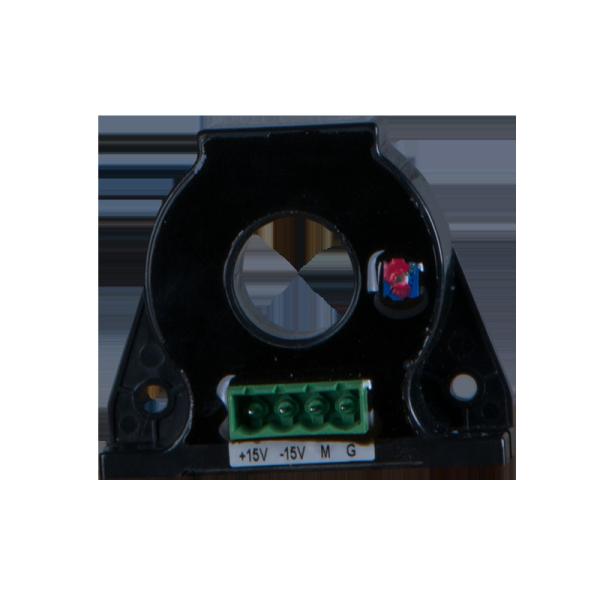

Close Type Open Ring Hall Effect Current Sensor 0-200A Input 5V Output Ac Dc
Close Type Open Ring Hall Effect Current Sensor 0-200A Input 5V Output Ac Dc
Close Type Open Ring Hall Effect Current Sensor 0-200A Input 5V Output Ac Dc
Close Type Open Ring Hall Effect Current Sensor 0-200A Input 5V Output Ac Dc
Close Type Open Ring Hall Effect Current Sensor 0-200A Input 5V Output Ac Dc
Close Type Open Ring Hall Effect Current Sensor 0-200A Input 5V Output Ac Dc
Close Type Open Ring Hall Effect Current Sensor 0-200A Input 5V Output Ac Dc
Close Type Open Ring Hall Effect Current Sensor 0-200A Input 5V Output Ac Dc
Close Type Open Ring Hall Effect Current Sensor 0-200A Input 5V Output Ac Dc
Close Type Open Ring Hall Effect Current Sensor 0-200A Input 5V Output Ac Dc
Close Type Open Ring Hall Effect Current Sensor 0-200A Input 5V Output Ac Dc
Close Type Open Ring Hall Effect Current Sensor 0-200A Input 5V Output Ac Dc
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
ACREL
Model Number :
AHKC-LT
MOQ :
1 Piece
Price :
$26.00 / Piece
Usage :
Magnetic Sensor
Theory :
Hall Sensor
Output signal :
Analog SENSOR
Product name :
close type open ring hall effect current sensor with 0-200A
input current :
ac / dc 0-200A,0-800A
power supply :
±15V
rated output :
5/4V
Accuracy :
class 1
Measuring Aperture(mm) :
32.5
Warranty :
2 years
Selling Units :
Single item
Single package size  :
15X13X15 cm
Single gross weight :
0.420 kg
Package Type :
paper carton with air bubble films
Description
Product Description

close type open ring hall effect current sensor with 0-200A input 5V output ac / dc

close type open ring hall effect current sensor is an open loop device based on the measuring principle of the hall effect, with a galvanic isolation between primary and secondary circuit. It provides accurate electronic measurement of DC, AC or pulsed currents.Hall current sensors are widely applicable for acquisition and feeback control of current signals in the current monitoring,inverter,solar power management,current cabinet,DC motor drive and UPS servo control systems.

Technical data

Model Rated current Power supply Rated output Hole size(mm) Accuracy
AHKC-E 0~(20-500)A ±15v 4/5v φ20 1
AHKC-LT 0~(100-800)A ±15v 4/5v φ32.5 1
AHKC-EA 0~(200-2000)A ±15v 4/5v φ40 1
AHKC-EB 0~(200-2000)A ±15v 4/5v φ60 1
AHKC-BS 0~(20-500)A ±15v 4/5v 20.5*10.5 1
AHKC-BSA DC 0~(50-500)A 12V/24V 4~20mA 20.5*10.5 1
AHKC-F 0~(200-1000)A ±15v 4/5v 43*13 1
AHKC-FA 0~(200-1500)A ±15v 4/5v 52*15 1
AHKC-HAT 0~(400-2000)A ±15v 4/5v 52*32 1

Model Rated current Power supply Rated output Hole size(mm) Accuracy
AHKC-EKA 0~(20-500)A ±15v 5v φ20 1
AHKC-EKAA DC 0~(50-500)A 12V/24V 4~20mA φ20 1
AHKC-EKDA AC 0~(50-500)A 12V/24V 4~20mA φ20 1
AHKC-EKB 0~(200-1000)A ±15v 5v φ40 1
AHKC-EKBA DC 0~(200-1000)A 12V/24V 4~20mA φ40 1
AHKC-EKBDA AC 0~(200-1000)A 12V/24V 4~20mA φ40 1
AHKC-K 0~(400-2000)A ±15v 5v 64x16 1
AHKC-KAA DC 0~(400-2000)A 12V/24V 4~20mA 64x16 1
AHKC-KDA AC 0~(400-2000)A 12V/24V 4~20mA 64x16 1
AHKC-H 0~(500-3000)A ±15v 5v 82x32 1
AHKC-KA 0~(500-5000)A ±15v 5v 104x36 1
AHKC-HB 0~(2000-20000)A ±15v 5v 132x52 1
AHKC-HBAA DC 0~(2000-20000)A 12V/24V 4~20mA 132x52 1
AHKC-HBDA AC 0~(2000-20000)A 12V/24V 4~20mA 132x52 1

Detailed Images

Close Type Open Ring Hall Effect Current Sensor 0-200A Input 5V Output Ac DcClose Type Open Ring Hall Effect Current Sensor 0-200A Input 5V Output Ac DcClose Type Open Ring Hall Effect Current Sensor 0-200A Input 5V Output Ac Dc

Wiring

Close Type Open Ring Hall Effect Current Sensor 0-200A Input 5V Output Ac Dc

Close Type Open Ring Hall Effect Current Sensor 0-200A Input 5V Output Ac Dc
