CE AITR Series Medical Isolation Transformer For Hospital Isolated Power System
CE AITR Series Medical Isolation Transformer For Hospital Isolated Power System
Specifications
Brand Name :
Acrel
Model Number :
AITR
Place of Origin :
Jiangsu, China
MOQ :
1
Payment Terms :
L/C, T/T, T/T
Delivery Time :
5-8 work days
Supply Ability :
5000pc/day
Packaging Details :
carton
Description

● Isolating transformers for medical IT systems

● Double insulation treatment, Electrostatic shielding layer

● PT100 temperature sensor

● Rated power: 3.15…10KVA

● CE

Dimension

CE AITR Series Medical Isolation Transformer For Hospital Isolated Power System

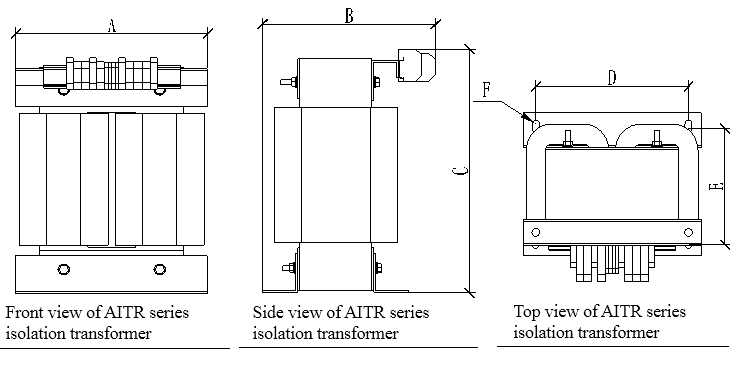

External dimensions of transformer

Type Capacity (VA) A(mm) B(mm) C(mm) D(mm) E(mm) F(mm) Total weight (kg)
AITR10000 10000 280 275 427 240 190 φ11 92
AITR8000 8000 280 265 427 240 190 φ11 90
AITR6300 6300 280 255 427 240 175 φ11 75
AITR5000 5000 280 255 427 240 175 φ11 73
AITR3150 3150 280 225 427 240 175 φ11 53

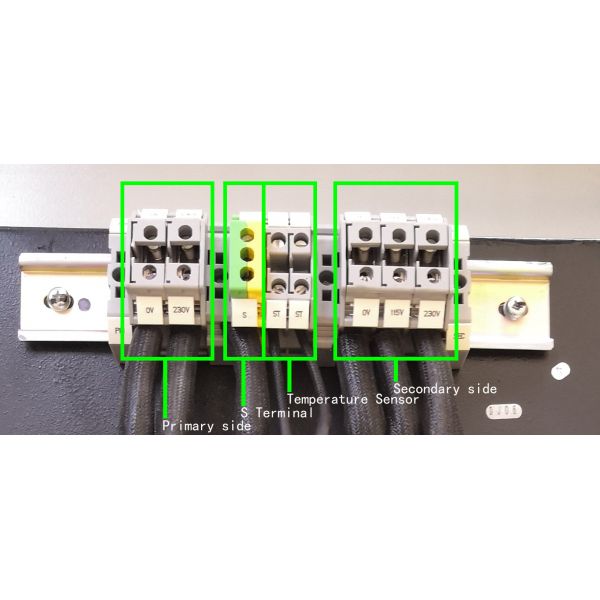

Wiring

CE AITR Series Medical Isolation Transformer For Hospital Isolated Power System

Typical connection

CE AITR Series Medical Isolation Transformer For Hospital Isolated Power System
