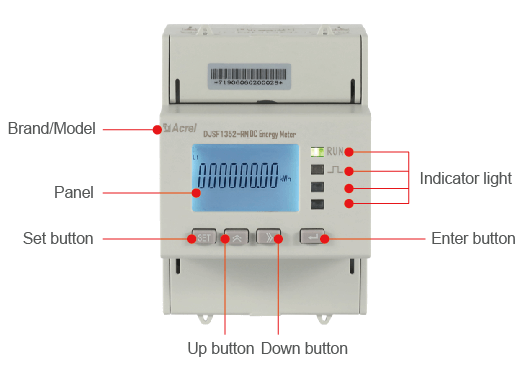

Class 1 DIN35 24V DC Energy Meter With Rs485 DJSF1352-RN
Class 1 DIN35 24V DC Energy Meter With Rs485 DJSF1352-RN
Class 1 DIN35 24V DC Energy Meter With Rs485 DJSF1352-RN
Class 1 DIN35 24V DC Energy Meter With Rs485 DJSF1352-RN
Class 1 DIN35 24V DC Energy Meter With Rs485 DJSF1352-RN
Class 1 DIN35 24V DC Energy Meter With Rs485 DJSF1352-RN
Class 1 DIN35 24V DC Energy Meter With Rs485 DJSF1352-RN
Class 1 DIN35 24V DC Energy Meter With Rs485 DJSF1352-RN
Specifications
Brand Name :
Acrel
Model Number :
DJSF1352-RN
Certification :
CE
Place of Origin :
China
MOQ :
1 pcs
Price :
USD 133/pcs
Supply Ability :
10000/month
Delivery Time :
3 days
Packaging Details :
Individually packed in big carton
Accuracy :
Class 1
Power Supply(self supply) :
AC/DC 85-265V or DC24V(±10%) or DC48V(±10%)
Voltage :
≤0.2VA current ≤0.1VA
Dimension(L*W*H) :
DIN35
Installation :
standard DIN35mm rail mounted
Switch relay :
DC 30V/3A AC 220V/3A
Communication :
RS485(Modbus-RTU) DL/T 645-2007
Display :
LCD display
Description

DJSF1352 series DC electricity meters use liquid crystal display, can exchange data with microcomputer.It is suitable for dc metering of charging pile, battery, solar panel and other DC signal equipment. It can also be used in DC distribution system.

Technical Features

Items Features

Environment

 Temperature -40℃~125℃
Humidity ≤95%
atmospheric pressure 86kPa~106kPa

ATE100M/100/200

Active wireless temperature sensor

 Wireless frequency 470MHz
Communication distance 150m in open area
Sampling frequency 25s
Transmitting frequency 25s-5min
Power source Battery
Installation Magnetic / bolted /Belt
Range of temperature -50℃~+125℃
Precision ±1℃
Application Joints in high or low voltage switchgears
Battery life ≥5 years

400 Passive wireless temperature sensor

 Wireless frequency 470MHz
Communication distance 150m in open area
Sampling frequency 15s
Transmission frequency 15s
Power source CT-powered, starting current≥5A

Installation alloy chip fixing
Sensor probe alloy bottom
Range of temperature -50℃~125℃
Precision ±1℃
Application Joints in high or low voltage switchgears

ATE100P/200P

Outdoor wireless temperature sensor

 Wireless frequency 470MHz
Communication distance 150m in open area
Sampling frequency 25s
Transmitting frequency 25s-5min
Power source Battery
Installation bolted /Belt
Range of temperature -50℃~+150℃
Precision ±0.5℃
Application Voltage switchgears
Battery life ≥5 years
Protection level IP68

Writing

Class 1 DIN35 24V DC Energy Meter With Rs485 DJSF1352-RN

Typical Connection

Class 1 DIN35 24V DC Energy Meter With Rs485 DJSF1352-RN
