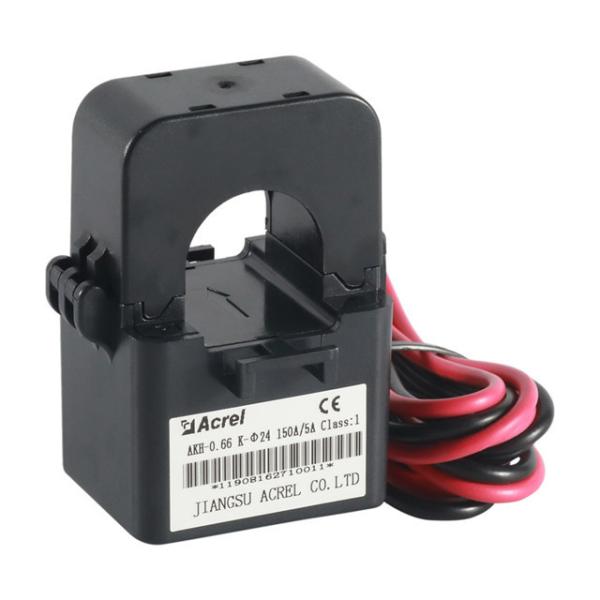

Acrel Split Core Current Transformer AKH-0.66/K
Acrel Split Core Current Transformer AKH-0.66/K
Acrel Split Core Current Transformer AKH-0.66/K
Acrel Split Core Current Transformer AKH-0.66/K
Specifications
Brand Name :
Acrel
Model Number :
AKH-0.66/K-φ24
Certification :
ul
Place of Origin :
China
MOQ :
1 Pieces
Payment Terms :
T/T
Supply Ability :
10000pcs/day
Delivery Time :
2-3 days
Packaging Details :
cardboard box
AKH-0.66/K-φ24 :
Alternating Current (AC)
Accuracy :
Class 0.5
Primary Current Input :
60~400A AC
Rated Voltage :
660V AC
Rated Frequency :
50~60Hz
Installtion :
Clamp-on (installed on Cable)
Loop Count :
1 Loop
Description

General

Split-core current transformers are built primarily for power grid construction or retrofit projects, beautiful appearance, convenient installation split core and wiring, mainly used in power operations and electricity reconstruction projects.

Technical parameter

Model Name

Current Ratio (Primary/Secondary)

Accuracy Class

Rated Load (VA)

Perforation Hole Size (mm)

AKH-0.66/K-φ10

5A/1.25mA

0.5

10

φ10

(10~20)A/5mA

(40~60)A/20mA

AKH-0.66/K-φ16

(20~50)A/10mA

φ16

(40~100)A/20mA

100A/40mA
100A/333mV

AKH-0.66/K-φ24

(60~200)A/20mA

φ24

(100~250)A/40mA

400A/100mA

(150~200)A/5(1)A

(250~300)A/5(1)A

AKH-0.66/K-φ36

(100~200)A/10mA

φ36

(200~400)A/20mA

(300~600)A/100mA

400A/40mA
400A/333mV

600A/75mA

(300~400)A/5(1)A

(500~600)A/5(1)A

AKH-0.66/K-φ50

(600~800)A/100mA

φ50

(500~1000)A/5(1)A
1000A/333mV

Features

Acrel Split Core Current Transformer AKH-0.66/K

Dimension

Acrel Split Core Current Transformer AKH-0.66/K

Model Name Outline Size (mm) Perforation Size (mm) Tolerance (mm)
W H D M N φ1 φ2
AKH-0.66/K-φ10 27 40 26 24 36 10 9 ±1
AKH-0.66/K-φ16 31 50 29 28 42 16 17
AKH-0.66/K-φ16 39 71 46 36 52 24 23.5
AKH-0.66/K-φ36 42.5 82 58 40 56 33.5 35
AKH-0.66/K-φ50 46.5 110 90 54 66.5 47 52

Wiring

Acrel Split Core Current Transformer AKH-0.66/K

Wiring

Acrel Split Core Current Transformer AKH-0.66/K
