ADL200N-CT/D16 Single Phase Din Rail MID Energy Meter RS485 for ev charging piles
ADL200N-CT/D16 Single Phase Din Rail MID Energy Meter RS485 for ev charging piles
Specifications
Brand Name :
Acrel
Model Number :
ADL200N-CT/D16
Certification :
MID
Place of Origin :
China
MOQ :
1 Pieces
Payment Terms :
T/T
Supply Ability :
5000pcs/day
Delivery Time :
5-8 days
Packaging Details :
carton
Measurement :
1-phase AC kWh, Active Power, Current, Voltage
Accuracy :
1.0% (kWh)
Frequency :
45~65Hz
Rated Voltage :
220~264Vac (direct connect)
Communication :
RS485 (MODBUS-RTU)
Dimension :
90*36*65mm (L*W*H)
Installation :
35mm DIN Rail
Description

General

Acrel Din Rail Single Phase AC Energy Meter is designed for power supply system, industrial and mining enterprises and utilities to calculate the electricity consumption and manage the electric demand. It features the high precision, small size and simple installation. It integrates the measurement of all electrical parameters with the comprehensive electricity metering.

Features

Diverse Electricity Parameters Measurement

● U (Voltage)

● I (Current)

● P (Power)

● Q (Reactive power)

● S (Apparent power)

● PF (Power factor)

● kWh (Kilowatt-hours)

● kVarh (Kilovar-hours)

 ADL200N-CT/D16 Single Phase Din Rail MID Energy Meter RS485 for ev charging piles

Multi-rate/Flexible Tariff

● 4 Time zone

● 4 Tariff rate (Spike, Peak, Flat, Valley)

● 2 Time period list

● 14 Time period by day

 ADL200N-CT/D16 Single Phase Din Rail MID Energy Meter RS485 for ev charging piles

HMI for Parameters Setting

● Code

● Protocol

● Address

● Baud rate

● Parity

● All Display

 ADL200N-CT/D16 Single Phase Din Rail MID Energy Meter RS485 for ev charging piles

LCD Display

● 8 digits

 ADL200N-CT/D16 Single Phase Din Rail MID Energy Meter RS485 for ev charging piles

Technical parameter

Input voltage

Reference voltage

 AC 220V
Reference frequency 50Hz
Power consumption <10VA
Input current Basic current

10A
Maximum current 80A
Starting current 4‰Ib
Consumption <4VA
Measurement performance

Accuracy of measuring

 1 class
Range of measuring 000000.00~99999999kWh
Clock accuracy Error≤0.5s/d
Active pulse Pulse width

80±20ms
Pulse constant 1000imp/kWh
Communicati on

Interface

 RS485(A+,B-)
Connection mode

Shielded twisted pair conductors
Protocol MODBUS-RTU

Network

ADL200N-CT/D16 Single Phase Din Rail MID Energy Meter RS485 for ev charging piles

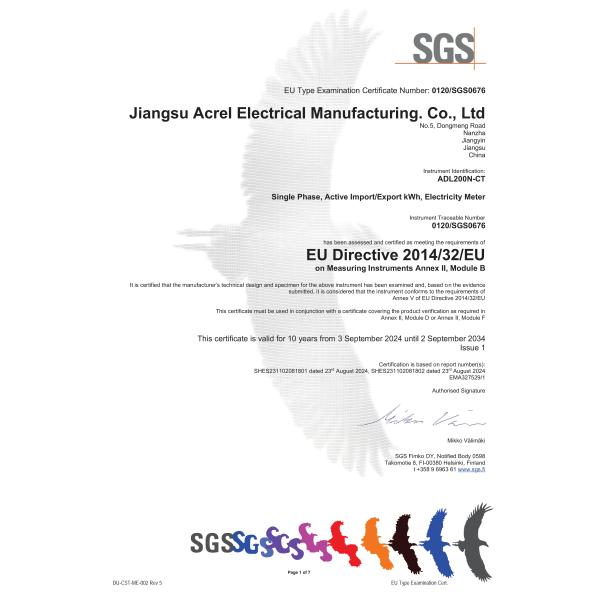

Certification

ADL200N-CT/D16 Single Phase Din Rail MID Energy Meter RS485 for ev charging piles
