Specifications
Brand Name :
Acrel
Model Number :
ADL300-EY
Certification :
CE
Place of Origin :
China
MOQ :
1 pcs
Price :
USD 74-222/pcs
Supply Ability :
10000/month
Delivery Time :
3 days
Packaging Details :
Individually packed in big carton
Reference voltage :
3*220/380V
Reference frequency :
50Hz
Consumption :
Consumption
Input Current :
1(6)A,10(80)A
Starting Current :
Connect directly: 0.004 Ib, connect via CT: 0.002In
IConsumption :
<4VA
Accuracy of measuring :
0.5Class
Pulse width :
80ms±20ms
Description

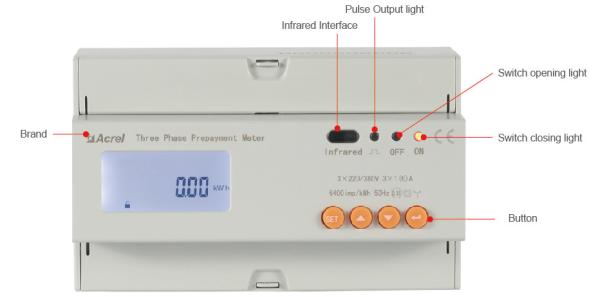

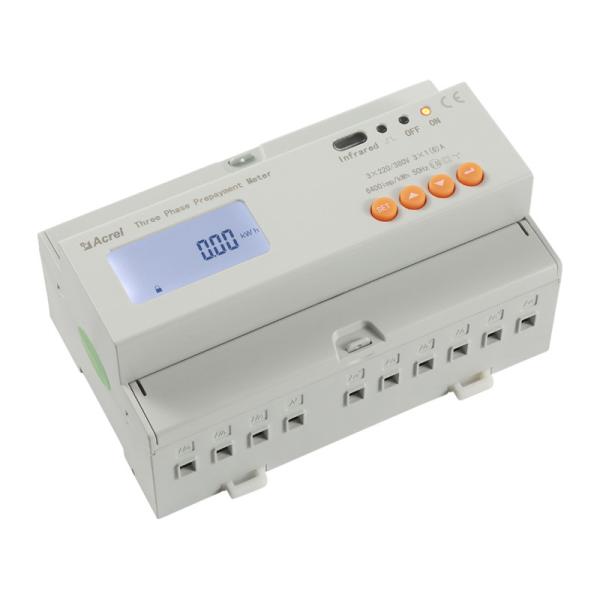

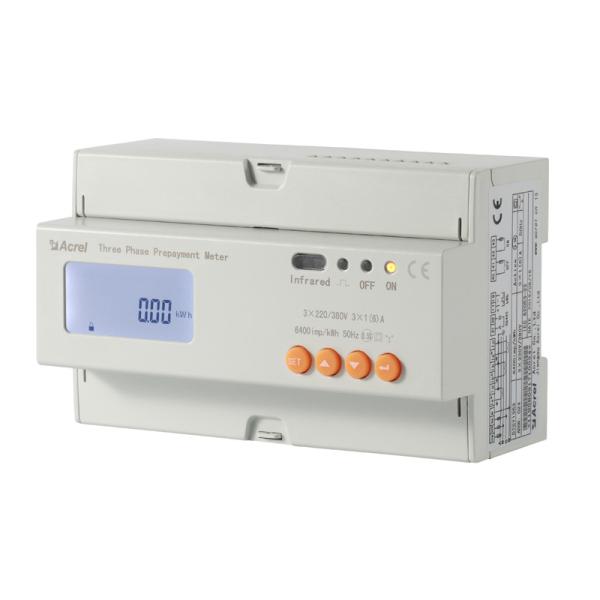

Three Phase Prepaid Energy Meter

ADL300-EY three phase pre-paid meters with intro-control are used for calculating the active energy respectively on the frequency of 50/60 Hz. The meter has functions of pre-paid, load controlling and RS485 communication etc. meet the related technical requirements of electronic power meter in the IEC62053-21, IEC62053-22 standards.

Technical Features

Technical parameter ADL100-EY
Voltage Reference voltage 3*220/380V
Reference frequency 50Hz
Consumption <4VA(Each phase)
Current Input Current 1(6)A,10(80)A
Starting Current Connect directly: 0.004 Ib, connect via CT: 0.002In
Consumption <4VA
Measurement performance Accuracy of measuring 0.5Class
Clock accuracy Error ≤0.5s/d
Active pulse Pulse width 80ms±20ms
Pulse constant 6400imp/kWh,400imp/kWh
Communication Interface RS485(A+,B-)
Connection mode Shielded twisted pair conductors
Protocol MODBUS-RTU

Dimension

0.5Class 3 Phase Prepaid Din Rail Energy Meter Meet IEC62053-21 Standards

Typical Connection

0.5Class 3 Phase Prepaid Din Rail Energy Meter Meet IEC62053-21 Standards
