class 0.5S 45-65Hz 3 Phase 4 Wire Kwh Meter , wifi energy meter
class 0.5S 45-65Hz 3 Phase 4 Wire Kwh Meter , wifi energy meter
Specifications
Brand Name :
Acrel
Model Number :
ADW300
Certification :
CE
Place of Origin :
Jiangsu, China
MOQ :
1 piece
Price :
$73/ piece
Payment Terms :
T/T
Delivery Time :
2-3 work days
Packaging Details :
carton box
Phase :
Three-Phase
Measuring Energy Range :
0-9999
Accuracy :
0.5S
Operating Temperature :
-20℃~55℃
Dimensions :
72
Product name :
wifi energy meter
Installation :
din rail
Certificate :
IEC62052-11
Display :
L CD
Communication :
MODBUS-RTU Protocol
Frequency :
45-65Hz
Selling Units :
Single item
Single gross weight :
1.000 kg
Package Type :
carton box
key word :
kilowatt hour meter 3 phase
Description

Acrel ADW300 3 phase 4 wire energy meter/kilowatt hour meter 3 phase

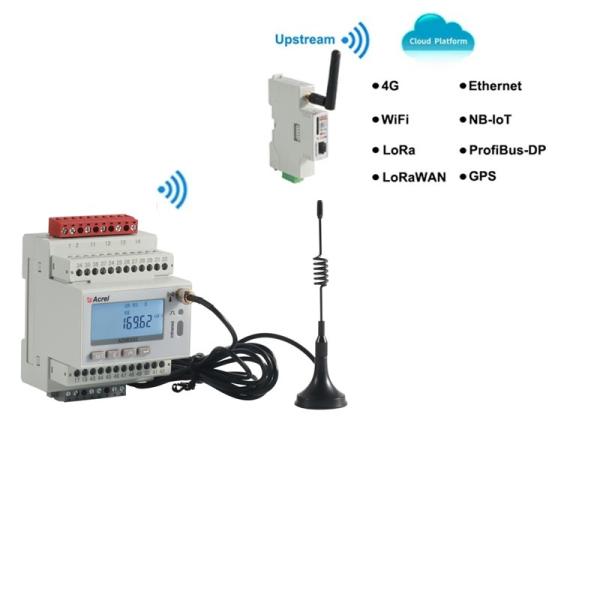

ADW300 wireless metering instrument is mainly used to measure the three-phase active power of low-voltage network, which has the advantages of small volume, high precision and rich function, and has many optional communication modes, which can support wireless communication modes such as RS485 communication and Lora,2G,NB,4G, and increase the current sampling mode of external transformer.

Specification

Acrel ADW300 3 phase 4 wire energy meter/kilowatt hour meter 3 phase



Input voltage

Nominal voltage

3*220/380V,3*380V,3*57.7/100V,3*100V

Consumption

＜10VA or 2W(A phase),＜0.5VA(B phase,C phase)

Frequency

50-60hz



Input current

Maximun current

6A

Starting current

0.002A

Consumption

＜2VA

Accuracy

Class 0.5S

Temperature accuracy

±2℃



Communication

Infrared

RS485(Modbus-RTU)

868MHz/923MHz/433MHz Lora/Lorawan

2G ,4G GPRS communication

NB-IOT communication



Pulse

Width

80±20ms

Constant

6400imp/kWh

Outline

L*W*H(mm)

72*71.5*92.6



Temperature

Operating

-25~55℃

Storing

-40~70℃

Humidity

≤95%(No condensation)

Altitude

＜2000m

Wireless Solution

NB-IoT : H-FDD B1 B3 B8 B5 B20

4G : LTE-FDD B1 B3 B5 B8
LTE-TDD B34 B38 B39 B40 B41
CDMA B1 B5 B8
GSM 900/1800M

2G : GSM 850
EGSM 900
DCS 1800
PCS 1900

LoRa/Lorawan : 433MHz

470MHz

868MHz

915MHz

923MHz

Dimensions

Company Information

class 0.5S 45-65Hz 3 Phase 4 Wire Kwh Meter , wifi energy meter

Acrel Co., Ltd. [Stock Code : 300286. SZ] is a high-tech enterprise concentrating on research, production, sales and services. It mainly provides systemic solutions of energy efficiency management and electrical safety for users. ‘Acrel’ is equipped with the complete production lines from cloud platform software to sensors. Until now, it has more than 8000 sets systemic solutions used in China to help users to realize energy visual management ,supply energy data services and improve electrical efficiency and safety. ‘Acrel’ has maintained steady growth since its listing in 2012. The company will adhere to the concept of ‘innovation,high-efficiency,unity and honesty’ and it provides more high-quality solutions,products and service for power system users and micro-grid.
