Cloud Platform for Power IOT/EMS
Cloud Platform for Power IOT/EMS
Specifications
Brand Name :
Acrel
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T, L/C
Delivery Time :
5-8 work days
Packaging Details :
System integration, see separate detail page for each meter
Description
Application
Substation, building, telecommunication base station, industrial energy consumption, intelligent lighthouse, operation and maintenance of power.

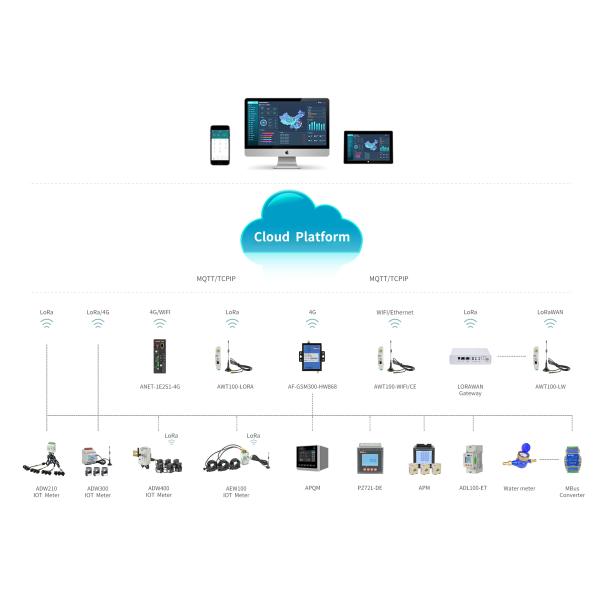

Structure
Cloud Platform for Power IOT/EMS
Main Functions

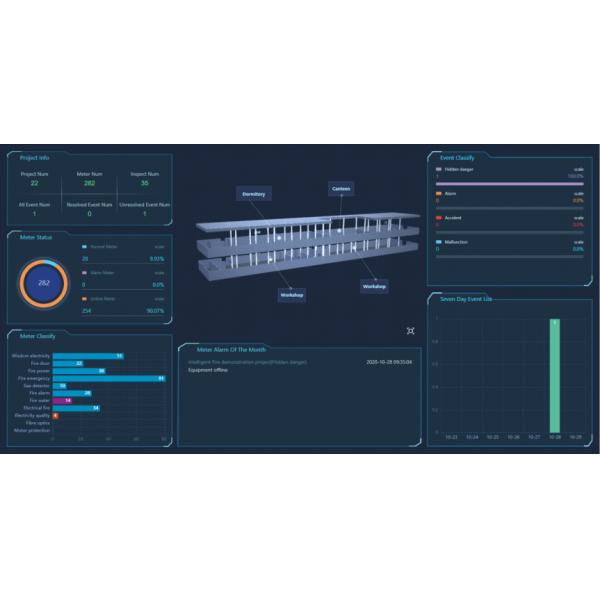

● Alarm Analysis
Cloud Platform for Power IOT/EMS

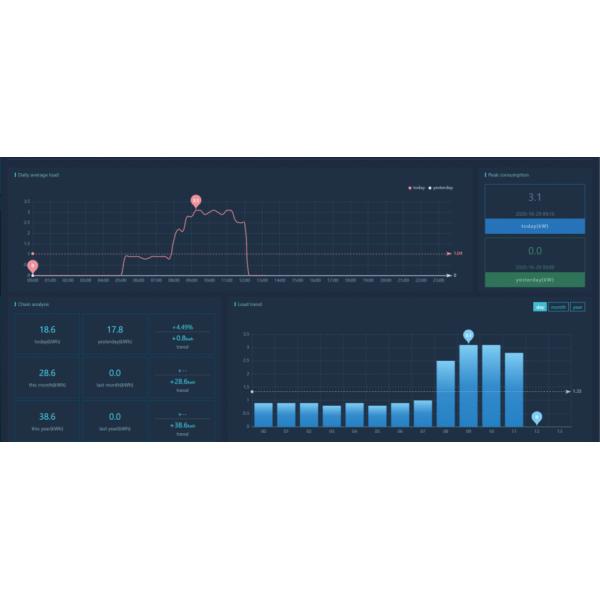

● Energy situation
Cloud Platform for Power IOT/EMS

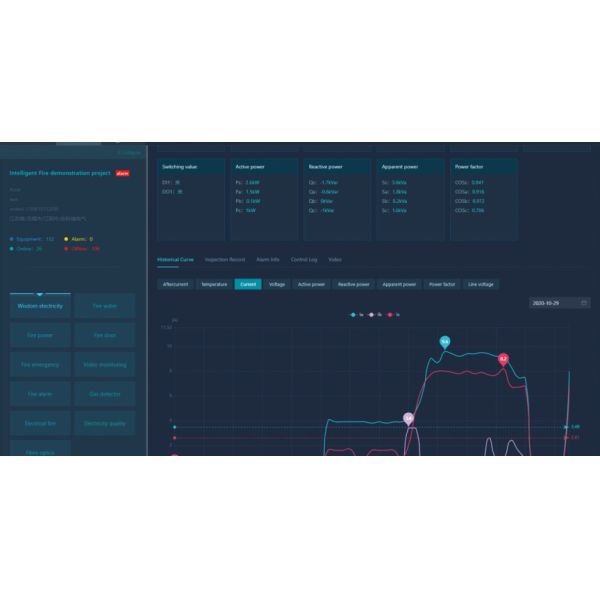

● Details of electrical parameters
Cloud Platform for Power IOT/EMS

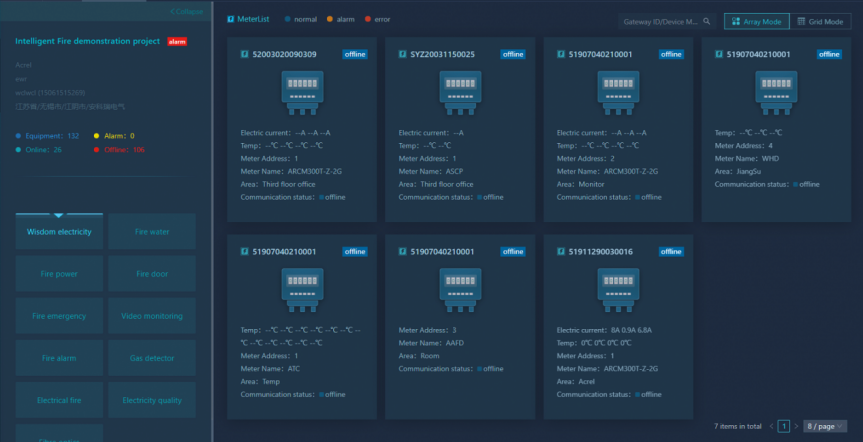

● Equipment status
Cloud Platform for Power IOT/EMS
Product Selection
Product selection of Cloud Platform for Power IOT
Application Type Pictures Functions
Gateway AF-GSM500-4G Cloud Platform for Power IOT/EMS 1.Meter reading by LoRa or RS485
2.Uplink Communication:4G or Ethernet
3.Protocol: Modbus-TCP, MQTT, etc, protocol can be customized.
4.Support breakpoint transmission, local data storage, local display and button setting.
Anet-1E2S-4G Cloud Platform for Power IOT/EMS 1.Downlink: 2* RS485
2.Uplink: 4G
AF-GSM300-HW868 Cloud Platform for Power IOT/EMS 1.Downlink: LoRa or RS485
2.It is used with AEW100-HW868
3.Uplink: 4G
Protocol: MQTT
AWT100-4GHW Cloud Platform for Power IOT/EMS 1.Downlink:RS485
2.Uplink:4G,WiFi or Ethernet/lorawan868/lorawan923/lora868
IOT meter AEW100 Cloud Platform for Power IOT/EMS 1.Measurement: 3 phase voltage,current, power, power factor, etc.
2.2-31st individual harmonic and THD measurement
3.Extreme records of voltage, current and power in this month and last 3 months
4.Max demand and historical MD of last 12 months
5.SOE
6.Communication:RS485 or LoRa
ADW210 Cloud Platform for Power IOT/EMS 1.Measurement: 4 circuits 3 phase voltage, current, power, power factor, etc.
2.Max demand
Communication: RS485 or LoRa
ADW300 Cloud Platform for Power IOT/EMS 1.Measurement: 3 Phase voltage, current, power, power factor, etc.
2.Accuracy: 1
3.Max demand
4.Communication: RS485, LoRa, 4G, NB or 2G
APM830 Cloud Platform for Power IOT/EMS 1.Measurement: full power measurement, power statistics, power quality analysis, wave recording, event recording and network communication
2.Modules: DI/DO, Al/Ao, TF card event recording, network communication
4.Double RS485 and Ethemet interface
5.Profibus-dp interface
6.Certificate: IEC
AMC96 Cloud Platform for Power IOT/EMS 1.Measurement: current,voltage,active power,reactive power,etc.
2.Accuracy: 0.5
3.Communication: RS485
4.Certificate:CE, IEC
ADL100-ET Cloud Platform for Power IOT/EMS 1.Measurement: voltage,current,power,energy,etc.
2.Multi-tariff function
Communication: RS485 Mobus-RTU
Split core open CT AKH-0.66/K Cloud Platform for Power IOT/EMS 1.Current ratio: up to 5000/5A
2.Accuracy: 0.5,0.2
Closed loop CT AKH-0.66I Cloud Platform for Power IOT/EMS 1.Current ratio: up to 6300/5A
Accuracy: 0.2, 0.5
