Accuracy Class 1.0 Din Rail Energy Meter Active Kwh 5(30)A 8 Bits LCD Display
Accuracy Class 1.0 Din Rail Energy Meter Active Kwh 5(30)A 8 Bits LCD Display
Accuracy Class 1.0 Din Rail Energy Meter Active Kwh 5(30)A 8 Bits LCD Display
Accuracy Class 1.0 Din Rail Energy Meter Active Kwh 5(30)A 8 Bits LCD Display
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
Acrel
Model Number :
ADL10-E
Supply Ability :
8000 Piece/Pieces per Day
Packaging Details :
It is packed in a crash bag and then put into a cardboard box.
MOQ :
>=1 Pieces
Price :
$17.50
Current :
10-60A
Standards compliant :
IEC 62053-21:2003
Option function :
RS485 Modbus-RTU communication
Accuracy :
1.0
Frequency :
50Hz
Auxiliary power supply :
AC 220V(L-N),range:154~264Vac
Consumption :
<10VA
Installation :
DIN 35mm
Dimension :
18*88*70 mm
Starting current :
0.004Ib
Port :
SHANGHAI
Description

din rail single phase energy meter mini power meter active kwh 5(30)A 8 bits LCD displayAccuracy Class 1.0 Din Rail Energy Meter Active Kwh 5(30)A 8 Bits LCD Display

Products Description
Accuracy Class 1.0 Din Rail Energy Meter Active Kwh 5(30)A 8 Bits LCD Display
Voltage
Reference voltage
AC 220V
Reference frequency
45-65 Hz
Consumption
<10VA( Single phase)
Current
Maximum
60A
Starting current
0.004 Ib
Consumption
<4VA(Maximum current)
Measurement performance
Accuracy of active kWH
Class 1
Standards complicant
IEC 62053-21:2003
Pulse
Pulse width
80+20 ms
Pulse constant
3200 imp/kWH
Communication
Interface
RS485
Protocol
Modbus-RTU
Outling
L*W*H(mm)
18*88*70
Environment
Temperature
Operating:-25℃~55℃；Storage:-40℃~70℃
Humidity
≦95% (No condensation)
Altitude
<2000m
Technical Parameters
Accuracy Class 1.0 Din Rail Energy Meter Active Kwh 5(30)A 8 Bits LCD Display

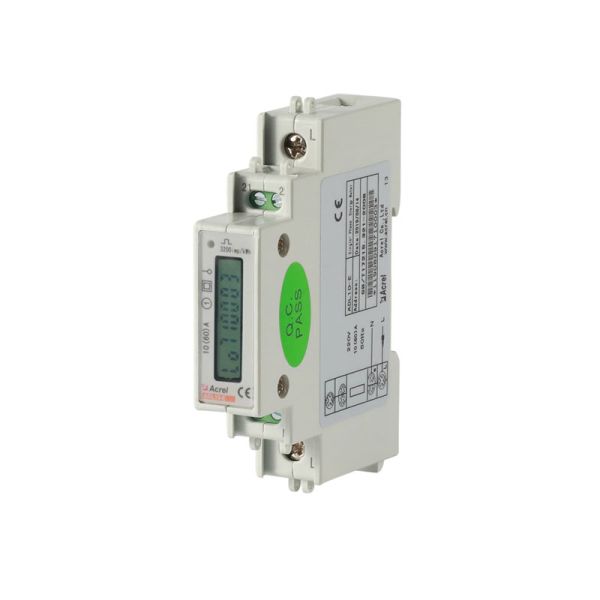

ADL10-E Single Phase Electric Energy Meter
● AC 220V
● 10(60)A
● RS485,MODBUS-RTU
● LCD display
● kWh Class 1,Kvarh Class 2
● U,I,P,Q,S,PF,kWh,kvarh
● DIN 35mm
Characteristic
Accuracy Class 1.0 Din Rail Energy Meter Active Kwh 5(30)A 8 Bits LCD Display

Communication
RS485
(Modbus-RTU)
Accuracy Class 1.0 Din Rail Energy Meter Active Kwh 5(30)A 8 Bits LCD Display

Display
8 digits LCD display U, I, P, Q, PF, kWh, Power measure (999999.99kWh)
Accuracy Class 1.0 Din Rail Energy Meter Active Kwh 5(30)A 8 Bits LCD Display

Rated U and I
AC220V
10(60)A
Accuracy Class 1.0 Din Rail Energy Meter Active Kwh 5(30)A 8 Bits LCD Display
Function
Accuracy
kWh Class 1,Kvarh Class 2
Frequency
50HZ
Auxiliary power supply(self supply)
AC 220V(L-N),range:154~264Vac
Consumption
<10VA(Single phase)
Accuracy Class 1.0 Din Rail Energy Meter Active Kwh 5(30)A 8 Bits LCD Display
Accuracy Class 1.0 Din Rail Energy Meter Active Kwh 5(30)A 8 Bits LCD Display

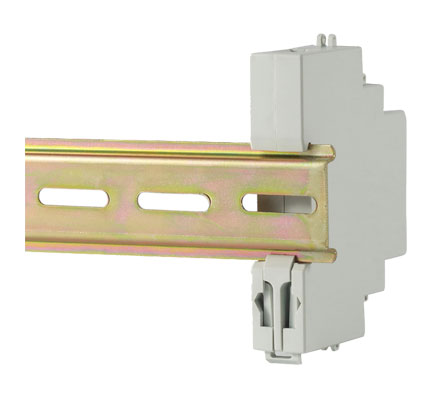

Installation
DIN 35mm
Dimension(L*W*H)
18*88*70 mm
Starting current
0.004Ib

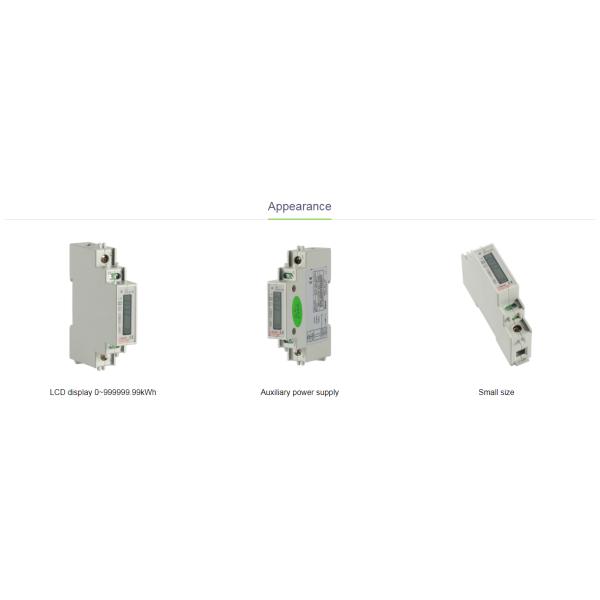

Appearance
Accuracy Class 1.0 Din Rail Energy Meter Active Kwh 5(30)A 8 Bits LCD Display
LCD display 0~999999.99kWh Auxiliary power supply Small size
Accuracy Class 1.0 Din Rail Energy Meter Active Kwh 5(30)A 8 Bits LCD Display
Product Application
Accuracy Class 1.0 Din Rail Energy Meter Active Kwh 5(30)A 8 Bits LCD Display
Accuracy Class 1.0 Din Rail Energy Meter Active Kwh 5(30)A 8 Bits LCD Display
Accuracy Class 1.0 Din Rail Energy Meter Active Kwh 5(30)A 8 Bits LCD Display
After-sales Service
Accuracy Class 1.0 Din Rail Energy Meter Active Kwh 5(30)A 8 Bits LCD Display
Company Profile
Accuracy Class 1.0 Din Rail Energy Meter Active Kwh 5(30)A 8 Bits LCD Display
Jiangsu Anke Ruiwei Grid Research Institute Co., Ltd., the manufacturer base located in Jiangyin, Wuxi City, is a pioneer enterprise integrates the informatization and industrialization of Jiangsu province. It has a multiple function product test center(CNAS certified), which can carry out a variety of tests on environment, electromagnetic compatibility, safety and reliability. The production relies on the advanced information management system and strictly follow the ISO9001 management standard, which provide a guarantee for industrialization and large-scale implementation of the products. The annual capacity of the electrical meter is 2 million sets, 1.5 million power transformers and 10,000 sets of energy-saving cabinets. Acrel Co., Ltd.[stock code: 300286.sz] is a high-tech enterprise integrates R&D, production, sales and service, since its establishment, it committed to provide users with energy efficiency management and power security system solutions. Acrel Electric has a complete production line from cloud platform software to sensors. At present, more than 8,000 sets of various solutions are running all over the country, help users to realize the visual management of energy consumption, provide users the energy data services, and escort users an efficient and safe energy consumption.
Accuracy Class 1.0 Din Rail Energy Meter Active Kwh 5(30)A 8 Bits LCD Display
Accuracy Class 1.0 Din Rail Energy Meter Active Kwh 5(30)A 8 Bits LCD Display
Accuracy Class 1.0 Din Rail Energy Meter Active Kwh 5(30)A 8 Bits LCD Display
Accuracy Class 1.0 Din Rail Energy Meter Active Kwh 5(30)A 8 Bits LCD Display
Jiangsu Anke Ruiwei Grid Research Institute Co., Ltd.
baojingjun@email.acrel.cn
Address:No.5,Dongmeng Road,Nanzha Town,Jiangyin City,Jiangsu Province.
Accuracy Class 1.0 Din Rail Energy Meter Active Kwh 5(30)A 8 Bits LCD Display
Accuracy Class 1.0 Din Rail Energy Meter Active Kwh 5(30)A 8 Bits LCD Display
FAQ

1. Q: Where is your factory located ? How can I visit here ? Can your factory arrange transportation for me?

A: Our production base is located in Jiangyin City, Jiangsu Province, China; Which will take about 2 hours by car from Shanghai to our factory. We can arrange our driver to pick you up from your hotel when you arrive Shanghai.

2. Q: Does your factory have the design and development capabilities, can you factory accept customized products?

A: The staffs in our R&D department are well experienced in the Electric industry, with more than 10 years’ experience. We can make customized products especially for you; please kindly contact us for more

3. Q: How long could I get my order?

A: Stock Products: shipping within 5 days.
B: Customized products: usually 10-15 days. It depends on your design and quantity.

4. Q: How is your production management and quality control system?

A: All our product process follows up ISO9001. The strict implementation of ISO9001 assures to provide error–free products to our customers. We will show you these in our workshop during your visiting.

5. Q: How can I get a sample to check the quality?

A: We are glad to offer you samples for test. Leave us message of the item you want and your city address. We will offer you detail sample packing information, and select the best way to deliver it.
