AIM-M100 Medical Isolation Power Supply Monitoring Device for Hospital Isolated System
AIM-M100 Medical Isolation Power Supply Monitoring Device for Hospital Isolated System
AIM-M100 Medical Isolation Power Supply Monitoring Device for Hospital Isolated System
AIM-M100 Medical Isolation Power Supply Monitoring Device for Hospital Isolated System
AIM-M100 Medical Isolation Power Supply Monitoring Device for Hospital Isolated System
AIM-M100 Medical Isolation Power Supply Monitoring Device for Hospital Isolated System
AIM-M100 Medical Isolation Power Supply Monitoring Device for Hospital Isolated System
AIM-M100 Medical Isolation Power Supply Monitoring Device for Hospital Isolated System
AIM-M100 Medical Isolation Power Supply Monitoring Device for Hospital Isolated System
AIM-M100 Medical Isolation Power Supply Monitoring Device for Hospital Isolated System
AIM-M100 Medical Isolation Power Supply Monitoring Device for Hospital Isolated System
AIM-M100 Medical Isolation Power Supply Monitoring Device for Hospital Isolated System
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
Acrel
Model Number :
AIM-M100
Supply Ability :
100000 Piece/Pieces per Month
Packaging Details :
It is packed in a crash bag and then put into a cardboard box.
MOQ :
>=1 Pieces
Price :
$1,618.00
Usage :
Insulation monitoring
Coil Structure :
TOROIDAL
Coil Number :
AUTOTRANSFORMER
Power :
3.15KVA
Color :
White
Function :
Temperature, load, centralized monitoring
Voltage :
AC220V
Frequency :
50/60Hz
Certificate :
CE
Measure Current :
<50μA
Port :
shanghai
Description
AIM-M100 Medical Isolation Power Supply Monitoring Device for Hospital Isolated System
Product Description

Hospital Isolated Medical Power Supply Insulation Monitor Device For Operation Theatre

The medical hospital isolated power supply system is mainly used in important Class 2 medical locations such as operating rooms, ICU/CCU intensive care unit, providing safe, reliable and continuous power distribution for the important equipment at these locations.
Medical IT system insulation monitoring and fault locating products (five-piece set) include AITR series medical
isolation transformer, AIM-M100 medical intelligent insulation monitoring instrument, AKH-0.66P26 current
transformer, ACLP10-24 DC power supply, and AID series(AID100, AID120, AID130, AID150) centralized alarm
and display instrument.
AIM-M100 Medical Isolation Power Supply Monitoring Device for Hospital Isolated System
AIM-M100 Medical Isolation Power Supply Monitoring Device for Hospital Isolated System
AIM-M100 Medical Isolation Power Supply Monitoring Device for Hospital Isolated System
AIM-M100 Medical Intelligent Insulation Monitor
● Insulation monitoring for medical IT systems
● Load and temperature monitoring of isolation transformer
● Device disconnection monitoring
● LED indicators: On, Insulation, Overload, Overtemp
● Alarm relay output
● Test button
● RS485 (MODBUS-RTU) + CAN
Technical Parameter
Model
Model
AIM-M100
Auxiliary
Power
Voltage
AC220V
Frequency
50/60Hz
Maximum power consumption
<8VA
Insulation Monitoring
Relative percentage accuracy
0~±10%
Insulation resistance measuring range
10~999kΩ
Alarm value range
50~999kΩ
Response time
<2s
Current
Monitoring
Measuring range
2.1~5A
Measurement accuracy
5%
Display method
percentage display
Alarm value range
50~999kΩ
Temperature monitoring
Thermal resistor
PT100
Measuring range
-50℃~+200℃
Alarm value range
0℃~+200℃
Alarm output
Output
2 relay outputs (programmable)
contact capacity
AC 250V/3A DC30V/3A
Communication
2 RS485, Modbus-RTU
Rated impulse voltage/pollution class
4KV/3
EMC & EMR
IEC1326-2-4
Function
* real-time monitoring and fault alarming of the ground insulation resistance,
* transformer load current and transformer winding temperature of the monitored IT system,
* be used with insulation fault locator, remotely starting fault-locating and displaying locating results when there are
insulation faults,
* real-time monitor the line disconnection fault, temperature sensor disconnection fault and the functional grounding line
disconnection fault of the monitored system, and give the alarm indication within 2S after the fault occurs
* relay alarm output, LED alarm indication and other faults indication functions,
* used for centralized alarm and display instrument, test signal generator, insulation fault locator and upper computer management
software communications, and can monitor the operation status of IT system in real time.
* Events logging function, which can record alarm occurrence time and fault type and is convenient for operation personnel to
analyze the operation conditions of system and promptly eliminate the faults.
Packing & Delivery
AIM-M100 Medical Isolation Power Supply Monitoring Device for Hospital Isolated System
AIM-M100 Medical Isolation Power Supply Monitoring Device for Hospital Isolated System
It is packed in a crash bag and then put into a cardboard box.
Company Profile
AIM-M100 Medical Isolation Power Supply Monitoring Device for Hospital Isolated System
AIM-M100 Medical Isolation Power Supply Monitoring Device for Hospital Isolated System
AIM-M100 Medical Isolation Power Supply Monitoring Device for Hospital Isolated System
AIM-M100 Medical Isolation Power Supply Monitoring Device for Hospital Isolated System
AIM-M100 Medical Isolation Power Supply Monitoring Device for Hospital Isolated System
AIM-M100 Medical Isolation Power Supply Monitoring Device for Hospital Isolated System

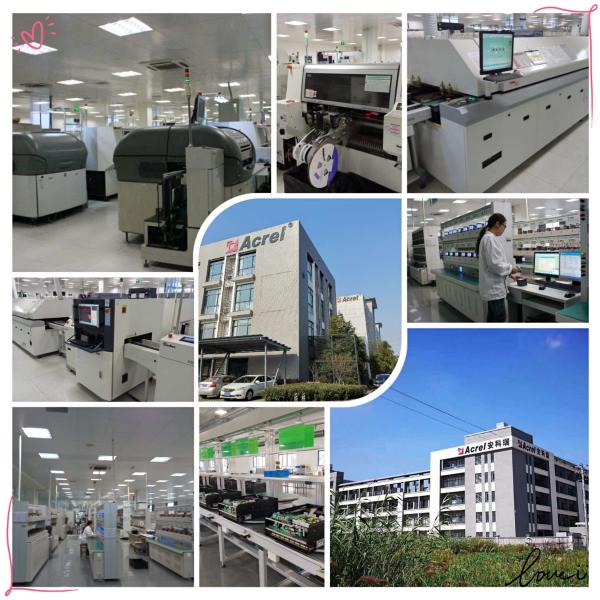

Jiangsu Acrel Electric Co.,LTD [Stock Code:300286.SZ ] is one of the few leading companies in China who provides various systematic of power monitoring, power control, energy management and electrical safety for smart grid users. Since June2003, we have always been focused on the research, production and sales of intelligent electric meters. We concentrate on providing products and services to help customers improve electricity and safety. So far we had the following comprehensive solutions for different applications: 35(10)/0.4KV substation automation system, building mounted photovoltaic(BMPV)system, power quality management system, energy management system, electrical fire monitoring system, IT distribution system for medical locations, precise distribution management system, power supply monitoring system for fire protection equipment, fire emergency lighting and evacuate indicating system, fire resistant doorsets monitoring system, smart lighting control system, Lithium battery management system and electric vehicle charging system.
Certifications
AIM-M100 Medical Isolation Power Supply Monitoring Device for Hospital Isolated System
FAQ
1. Where is your factory located ?
Our production base is located in Jiangyin City, Jiangsu Province, China;

2. How long would your equipment be used?
Generally, more than 10 years.

3. How long could I get my order?
Stock Products: shipping within 5 days.
Customized products: usually 10-15 days. It depends on your design and quantity.

4. What certificate do you have?
We have ISO9001, CE, IEC and so on.

5. Can I get a sample to check the quality?
Samples are no problem. We are glad to offer you some for test.
6. What's your MOQ?
At least one pcs.
