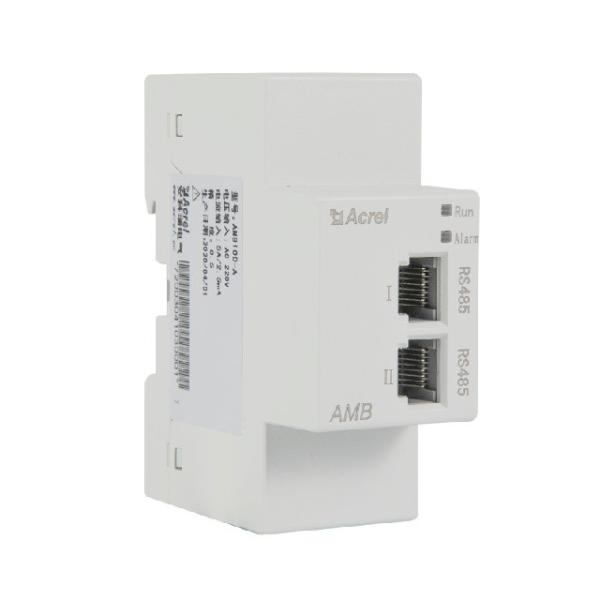

ACREL Small Bus Bar Monitoring AC Energy Meter 5A/2.5mA 3 Phase
ACREL Small Bus Bar Monitoring AC Energy Meter 5A/2.5mA 3 Phase
Specifications
Place of Origin :
Shanghai, China
Brand Name :
Acrel
Model Number :
AMB100-A
MOQ :
2 Pieces
Price :
$104.50 / Piece
Measuring Current Range :
5A/2.5mA
Measuring Voltage Range :
AC220 or 380v
Accuracy Class :
0.5
Operating Temperature :
-15~+55℃
Phase :
3 phase
Frequency :
45-65Hz
Warranty :
2 Years
Communication :
RS485/Modbus-RTU/infrared
Installation :
DIN Rail 35mm
ODM :
Allowed
Application :
bus bar monitoring
Description
Product Description

ACREL 3 phase small bus bar monitoring power meter with relay output for data center

AMB smart bus detection unit of connection box is for power intelligent bus demand new design products, the test unit installation fixed inside the plug box, plug box adopts the unique way to the bus it integrated all electric power parameter measurement, such as single phase or three phase current, voltage, active power, reactive power, apparent power, frequency, power factor) and the electric power monitoring and assessment of the comprehensive management.
At the same time, it can monitor the temperature of bus interface in real time, and cooperate with the 2-way RJ45 communication interface (1 in 1 out) or LORA wireless communication.
Using modbus-rtu protocol, the monitoring data can be easily and reliably uploaded to the main control box and
background system to ensure the safe and reliable operation of the system. Intelligent bus bar plug box has the advantages of flexible wiring, which can replace the traditional centralized column head cabinet.
Functions and parameters

Functions of AMC16Z-FDK48 multi circuit DC energy power meter

*Measurement:3 phase voltage,current,frequency,active power,reactive power,power factor,active energy,reactive energy
*Rated voltage:AC 220V or 380V
*2-63st harmonics,1 circuit leakage current,8 channel temperature,1 channel humidity,max demand,zero line current,neutral current, zero ground voltage
*2 channels DI , 2 channels DO
*Communication:1 channel RS485
Model
AMB100A
AMB110A
Measurement parameters
voltage, current, frequency, active power, reactive power, power factor, active power, reactive power
max demand,zero line current,neutral current, zero ground voltage
2-63st harmonics
1 channel leakage current,1 channel humudity
2 DI 2 DO
8 channel temperature
4 channel temperature
Voltage
Rated voltage
3x220VAC or 3x380VAC
Measurement range
±20%
Overload
Instantaneous voltage 2 times/second
Current
CT
5A/2.5mA
100A/20mA
Range
1%~120%
overload
Duration 1.2 times, instantaneous 10 times/second
Input frequency
45～60Hz
Accuracy
Class 0.5:Voltage/current/active power/active energy
Class 1:reactive power/reactive energy
Auxiliary power supply
Power on by system voltage
Communication
RS485/Modbus-RTU
Optional communication
LoRa communication
Installation
DIN 35mm din rail
Dimensions and wirings
ACREL Small Bus Bar Monitoring AC Energy Meter 5A/2.5mA 3 Phase
ACREL Small Bus Bar Monitoring AC Energy Meter 5A/2.5mA 3 Phase
Application
ACREL Small Bus Bar Monitoring AC Energy Meter 5A/2.5mA 3 Phase
ACREL Small Bus Bar Monitoring AC Energy Meter 5A/2.5mA 3 Phase
ACREL Small Bus Bar Monitoring AC Energy Meter 5A/2.5mA 3 Phase
Payment and delivery
1. Payment:100% TT in advance,credit card and western union. For large amount, we can accept terms T/T 30% in advance as deposit
and balance 70% before delivery.

2. Delivery:in 3-10 working days after payment received.

3. Delivery ways:By sea,air,train or international courier like Fedex,TNT,DHL and so on.

Certification

ACREL Small Bus Bar Monitoring AC Energy Meter 5A/2.5mA 3 Phase

Company profile

ACREL Small Bus Bar Monitoring AC Energy Meter 5A/2.5mA 3 Phase

ACREL CO., Ltd. was founded in 2003 and successfully listed on GEM in 2012. ACREL is a high-tech enterprise that integrats R&D, production, sales and service. since its establishment, it committed to provide users with energy efficiency management and power security system solutions. Acrel Electric has a complete production line from cloud platform software to sensors.

ACREL Small Bus Bar Monitoring AC Energy Meter 5A/2.5mA 3 Phase

Since the listing in 2012, our company has maintained steady growth. The company will adhere to the concept of "innovation, efficiency, unity, integrity", adhere to steady operation and continuous innovation, and provide more high-quality products, services and solutions for power system users and micro-grid.

ACREL Small Bus Bar Monitoring AC Energy Meter 5A/2.5mA 3 PhaseACREL Small Bus Bar Monitoring AC Energy Meter 5A/2.5mA 3 Phase

At Vietnam Power Equipment and Technology Exhibition, many customers from all over the world, our Acrel team has carried out detailed analysis and explanation of a series of difficult problems raised by customers. Under the enthusiasm of our technical team and sales team, the customer gave us a high evaluation of our products and services.

Acrel Co.,LTD [Stock Code:300286.SZ ] attended HANNOVER MESSE, is one of the few leading companies who provides various systematic of power monitoring, power control, energy management and electrical safety for smart grid users. Since 2003, we have been focused on the research, production and sales of intelligent electric meters and current sensors.

ACREL Small Bus Bar Monitoring AC Energy Meter 5A/2.5mA 3 Phase

If you have any special requirements, for example another current ratio or special size ,please feel free to Contact Us.
