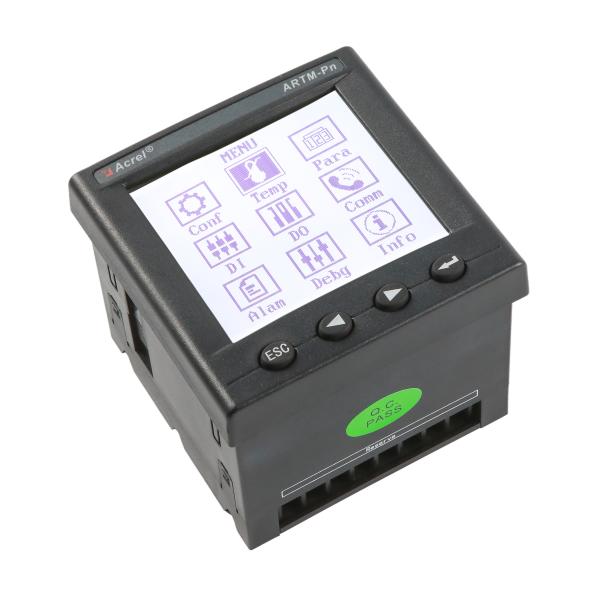

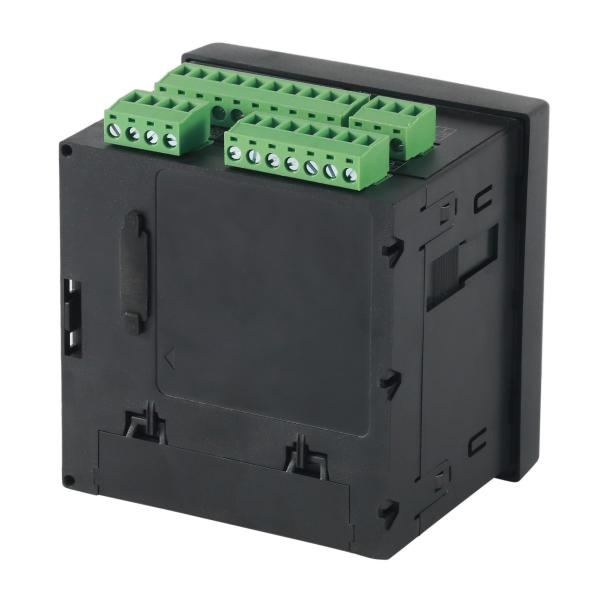

Acrel 300286.SZ Industrial Wireless Temperature Sensor With RS485 ARTM-Pn
Acrel 300286.SZ Industrial Wireless Temperature Sensor With RS485 ARTM-Pn
Acrel 300286.SZ Industrial Wireless Temperature Sensor With RS485 ARTM-Pn
Acrel 300286.SZ Industrial Wireless Temperature Sensor With RS485 ARTM-Pn
Acrel 300286.SZ Industrial Wireless Temperature Sensor With RS485 ARTM-Pn
Acrel 300286.SZ Industrial Wireless Temperature Sensor With RS485 ARTM-Pn
Specifications
Place of Origin :
Jiangsu, China
Model Number :
ARTM-Pn
Brand Name :
ACREL
MOQ :
1 Piece
Price :
$155.40 / Piece
Application :
Switch cabinet, Switch cabinet
Color :
Black
Panel Size :
96*96mm
Pixel Pitch :
0.28mm
Power supply :
AC85-265V DC100-300V
Maxium energy consumption :
8W
Installation method :
Embedded
Accuracy :
±2℃
Digital input acquision :
4 way 12V input
Communication :
RS485 modbus rtu
Selling Units :
Single item
Single package size  :
10X10X10 cm
Single gross weight :
0.600 kg
Package Type :
Products are packed in carton box with air bubble fim
Description
Product Description

ARTM-Pn Wireless Temp Measuring Equipment
Acrel 300286.SZ Industrial Wireless Temperature Sensor With RS485 ARTM-Pn

General
ARTM-Pn wireless temperature measuring equipment has been developed in compliance with Specification for Wireless Temperature Measuring equipment, NB/T 42086-2016. It is suitable for 3-35kV indoor switchgears, including built-in switchgears, handcart switchgears, fixed switchgears and loop-net switchgears. It is also suitable for 0.4kV low-voltage switchgears such as fixed switchgears and drawer switchgears.

Features
● Wireless temperature measurement, maximum measuring 60 points;
● 4 digital inputs;
● 2 alarm relays;
● LCD display;
● Auxiliary power supply adapts with AC220V, DC220V, DC110V, AC110V;
● 1 RS485 serial communication, Modbus-RTU.

Technical Parameters
Items
Features
Power Source
AC85~265V,DC100~300V
Power Consumption
8W
Communication
Protocol
Modbus-RTU
Baud rate (bps)
2400,4800,9600,19200
Environment
Temperature
-10℃~55℃
Humidity
≤95%
Atmospheric pressure
86kPa~106kPa
MTBF
≥50000 h
Active wireless temperature sensor
Wireless frequency
2.4GHz/2.4GHz/470MHz
Communication distance
10m/10m/150m in open area
Sampling frequency
25s
Transmitting frequency
4min
Power source
Battery
Installation
Bolted/Strap-secured/tied with cable tie
Range of temperature
-40℃~+125℃
Precision
±2℃
Application
Joints in high or low voltage switchgears
Battery life
≥5 years
Passive wireless temperature sensor
Wireless frequency
470MHz
Communication distance
150m in open area
Sampling frequency
15s
Transmission frequency
15s
Power source
CT-powered, starting current≥5A
Installation
tied with cable tie/alloy chip fixing
Sensor probe
Isolated/alloy bottom
Range of temperature
-10℃~+125℃/-50℃~125℃
Precision
±2℃/±1℃
Application
Joints in high or low voltage switchgears

Configuration
Acrel 300286.SZ Industrial Wireless Temperature Sensor With RS485 ARTM-Pn
As above shown, the first configuration is only suitable for one cabinet.
The other two types of configurations can cross 5 cabinets.

Display
Acrel 300286.SZ Industrial Wireless Temperature Sensor With RS485 ARTM-Pn

Wiring
Acrel 300286.SZ Industrial Wireless Temperature Sensor With RS485 ARTM-Pn

Typical connnection
Acrel 300286.SZ Industrial Wireless Temperature Sensor With RS485 ARTM-Pn
Acrel 300286.SZ Industrial Wireless Temperature Sensor With RS485 ARTM-Pn
Acrel 300286.SZ Industrial Wireless Temperature Sensor With RS485 ARTM-Pn
