Specifications
Place of Origin :
Guangdong, China
Brand Name :
AUPOOL
Model Number :
AUPOOL-infinitive pool
Type :
Pool
Product Name :
Acrylic Transparent Swimming Pool
Application :
Villa Pool
Material :
Acrylic-100% Virgin PMMA Imported
Accessories :
Air Pump
Warranty :
30 Years outdoor use non-yellowing
Color :
Transparent
Keyword :
acrylic swimming pool Villa Pool Jacuzzi
Diaphaneity :
High light transmission(93%)
Usage :
Family Swimming Pool
Function :
Swimming Season
Packaging Details :
Clear acrylic swimming pool panels cheap cost of acrylic glass sheet for swimming pool
Our Curved Acrylic Panel is packed with PE film, then protect with Polyethylene foamed sheet, then surrounded with wooden board and PE film , finally packed with ste
Port :
shenzhen
Supply Ability :
20000 Square Meter/Square Meters per Month
Price :
$273.00/square meters
MOQ :
1pc
Description

Clear Outdoor Acrylic Swimming Pool Made by AUPOOL

Acrylic Panel Specifications
PROPERTIES
VALUES
RULES
Density
1.19 g/cm3
ISO 1183-1:2012 Method A
Rockwell Hardness
112L
ISO 2039-2:1999
Tensile Modulus
3150MPa
EN ISO 527:2012
Tensile Strength
80.0MPa
EN ISO 527:2012
Tensile Strain at Break
3.2%
EN ISO 527-1:2012
Water Absorption
0.20%
ISO 62:2008 Method 1
Total Luminous Transmittance
93.4%
ISO 13468-1:1996
Vicat Softening Temperature
105℃
ISO 306:2013 Method B50
Light Ageing Test- UV Exposure
Grey scale: 5
ISO 4892-3:2016 Cycle 1
Mean Coefficient of Linear Thermal Expansion
72×10-6 K-1
ISO 11359-1:2014
Compressive Stress at Yield
129MPa
EN ISO 604:2003
Flexural Strength
120MPa
ISO 178:2013
Compressive Yield Strength
111MPa
ASTM D695-15
Compressive Modulus
3450MPa
ASTM D695-15
Shear Strength
59.7MPa
ASTM D732-17
Deflection Temperature under Load
100.2℃
ASTM D648-18 Method B
Modulus Elasticity
2810MPa
ASTM D695-15
Raw materials
100% virgin of Lucite MMA materials
Thickness
30-150mm one time casting, 150-950mm mm Multi-plate composite overlay
Color
Transparent(transparent 93%) of cast acrylic panel
MOQ
1 PCS acrylic panel/curve/tunnel/L shape acrylic panel
Below molding sizes are for your reference. Please note that: below size (molding size) ≠ panel net size
Size
Thickness
Size
Thickness
1300x2500mm
30-70mm
1350x2650mm
30-100mm
1450x2700mm
30-100mm
1600x2600mm
30-100mm
1650x3150mm
30-100mm
2200x3200mm
30-110mm
1650x3500mm
30-100mm
2750x4250mm
30-130mm
1800x5000mm
30-150mm
2100x5500mm
30-150mm
3000x6200mm
50-250mm
3000x6700mm
50-250mm
3000x8200mm
80-250mm
3000*8700mm
80-250mm
3000x11500mm
100-250mm
3700x8100mm
120-300mm
Generally, Our factory introducing the use of acrylic panels into architectural project such as oversize aquarium,outdoor swimming pool and water feature.
Products Description
Villa Pool Air Pump Accessories 50mm 80mm Thick Full Clear Acrylic Glass Sheet Panel

AUPOOL Infinity Pool

1. Professional Acrylic Swimming Pool Manufacturer

2. Dry constant temperature polymerization technology

3. Outdoor non-yellowing 30 years warranty

4. 93% high transparency

5. Easy installations & cleaning

6.More than 30 patents
Click Here to Contact Us, We Will Show You More Cases and Our New Products
Products and Applications
Villa Pool Air Pump Accessories 50mm 80mm Thick Full Clear Acrylic Glass Sheet Panel

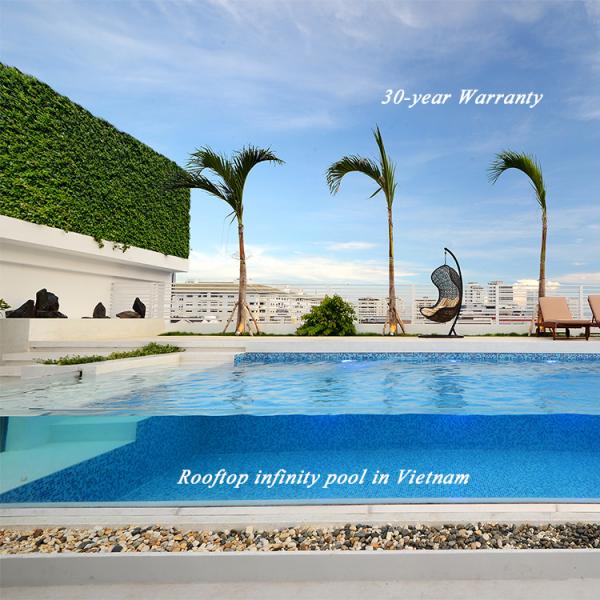

Rooftop transparent swimming pool at Khai Hoan Hotel, Vietnam (2016)

The rooftop swimming pool of Khai Hoan Hotel uses acrylic thick plates as the transparent swimming pool side and bottom plates,and adopts the world's leading water circulation system and constant temperature system, which has excellent weather resistance,safety and aesthetics.
Villa Pool Air Pump Accessories 50mm 80mm Thick Full Clear Acrylic Glass Sheet Panel

Lingyun Pavilion suspended transparent swimming pool in Malaysia (2015)

The bottom of the swimming pool is made of three acrylic and reinforced concrete structures spliced together. The maximum size of a single acrylic panel window is 9m*6m, setting a world record for the world's largest single-panel acrylic suspended swimming pool (2015-2021).
Villa Pool Air Pump Accessories 50mm 80mm Thick Full Clear Acrylic Glass Sheet Panel

Yingkou Bayu Bay Magic Hot Spring Park Hanging Transparent Swimming Pool (2020)

During the construction, the impact of the earthquake zone in the area was overcome, and the seismic resistance, safety and installation accuracy requirements of the plates all reached the international high standards; at the same time, the plates with excellent weather resistance were used, which was completely free from the extreme environment with a temperature difference of 60°C between inside and outside. The transparent part covers an area of 260 square meters, setting a world record for the largest suspended transparent swimming pool in the world at that time.
Villa Pool Air Pump Accessories 50mm 80mm Thick Full Clear Acrylic Glass Sheet Panel

Sunshine One Hotel Haitang Bay Sanya suspended transparent swimming pool (2020)

The World's Largest Suspended Transparent Swimming Pool Sunshine One Hotel Haitang Bay SANYA
It is 63 meters long and 23 meters wide. The bottom plate is made of 280mm thick acrylic plate, and the side plate is made of 160mm thick acrylic plate. The transparent part covers an area of 820 square meters. World record for swimming pools.
Why Choose Us
Villa Pool Air Pump Accessories 50mm 80mm Thick Full Clear Acrylic Glass Sheet Panel

Strong Production Capacity

7-15 days short production time, huge stock, large capacity.
Villa Pool Air Pump Accessories 50mm 80mm Thick Full Clear Acrylic Glass Sheet Panel

Flat surface

Milling surface smooth on each panel
Villa Pool Air Pump Accessories 50mm 80mm Thick Full Clear Acrylic Glass Sheet Panel

QC

Examine the interior of each Acrylic Panel under light
Villa Pool Air Pump Accessories 50mm 80mm Thick Full Clear Acrylic Glass Sheet Panel

Dry thermostatic polymerization

Due to high technical barriers, only three companies in the world have mastered this process, which essentially solves the problem of acrylic turning yellow under light.
Villa Pool Air Pump Accessories 50mm 80mm Thick Full Clear Acrylic Glass Sheet Panel

Flexible material

Flexural fracture resistance is very good, laboratory test bending deformation of 50% of the length dimension, hold for 1000 hours, no fracture marks
Villa Pool Air Pump Accessories 50mm 80mm Thick Full Clear Acrylic Glass Sheet Panel

Strong impact resistance and safety

12 times that of tempered glass, 160 times that of ordinary glass, and will not automatically explode the board
Villa Pool Air Pump Accessories 50mm 80mm Thick Full Clear Acrylic Glass Sheet Panel
How to order

Which one do you like, please let me know.

Acrylic in pool
Villa Pool Air Pump Accessories 50mm 80mm Thick Full Clear Acrylic Glass Sheet Panel
Villa Pool Air Pump Accessories 50mm 80mm Thick Full Clear Acrylic Glass Sheet Panel
Villa Pool Air Pump Accessories 50mm 80mm Thick Full Clear Acrylic Glass Sheet Panel

1.Tell us the size

Tell us your swimming pool length,width and height,water level.It is better have design file.
Villa Pool Air Pump Accessories 50mm 80mm Thick Full Clear Acrylic Glass Sheet Panel

2.Draft Design

By finite element analysis,we sure the thickness of acrylic,we draw design for you.
Villa Pool Air Pump Accessories 50mm 80mm Thick Full Clear Acrylic Glass Sheet Panel

3.Production

We start production,cutting,bonding,bending,polishing,QC and packing,shipping to you
Villa Pool Air Pump Accessories 50mm 80mm Thick Full Clear Acrylic Glass Sheet Panel

4.Installation

We provide you installation guide,our engineer can go to your side to do installation if necessary
Company Profile


AUPOOL is a professional manufacturer of transparent acrylic swimming pools. We are the only company in China that uses British
100% Lucite PMMA raw material and dry constant temperature polymerization process to make the acrylic board not yellow and crack
for 30 years outdoors. Welcome your consultation, we will provide you with private professional services 24 hours a day.
Villa Pool Air Pump Accessories 50mm 80mm Thick Full Clear Acrylic Glass Sheet Panel
Certifications
Villa Pool Air Pump Accessories 50mm 80mm Thick Full Clear Acrylic Glass Sheet Panel
Villa Pool Air Pump Accessories 50mm 80mm Thick Full Clear Acrylic Glass Sheet Panel
Villa Pool Air Pump Accessories 50mm 80mm Thick Full Clear Acrylic Glass Sheet Panel
Villa Pool Air Pump Accessories 50mm 80mm Thick Full Clear Acrylic Glass Sheet Panel
Villa Pool Air Pump Accessories 50mm 80mm Thick Full Clear Acrylic Glass Sheet Panel
Villa Pool Air Pump Accessories 50mm 80mm Thick Full Clear Acrylic Glass Sheet Panel
Villa Pool Air Pump Accessories 50mm 80mm Thick Full Clear Acrylic Glass Sheet Panel
Villa Pool Air Pump Accessories 50mm 80mm Thick Full Clear Acrylic Glass Sheet Panel
Packing & Delivery
Villa Pool Air Pump Accessories 50mm 80mm Thick Full Clear Acrylic Glass Sheet Panel
Villa Pool Air Pump Accessories 50mm 80mm Thick Full Clear Acrylic Glass Sheet Panel
FAQ
Q1 : What kind of products do you sell?
A1: We are both a manufacturer and a trading company, we have our own factory and production lines to provide products with high quality and good price. We are One Stop Acrylic Swimming Pool Solution Provider.

Q2 : Which items do your factory produce?
A2 : Acrylic Thick Panel ,Prefab Acrylic Pool,Endless Pool Machine,Salt Chlorine Machine,Pool Cover,Swimming Pool Intelligent Control System

Q3:What is your terms of packing?
A3:
Use film to cover the surface of the swimming pools and bathtub；
Use EPE to wrap up swimming pools and bathtub;
Use foam to protect the frame of swimming pools and bathtub;
Wooden case could make sure strong protection.

Q4.:What is your terms of payment?
A4::T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q5. How about your delivery time?
A5: Generally, it will take 7 to 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q6. What is your sample policy?
A6: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q7:Do you test all your goods before delivery?
A7: Yes, we have 100% test before delivery

Q8:How to install?
A8:Customers can install it by themselves, and we provide free 24-hour online service. Our company arranges a professional team to install it. AUPOOL has a skilled and experienced acrylic professional installation team, who has participated in the design and construction of more than 1,000 domestic and foreign aquariums, acrylic infinity swimming pools, acrylic suspended swimming pools and other projects, with zero quality accidents so far. We use five layers of waterproofing for the swimming pool on the roof. So far, there has been no water leakage. If there is any water leakage in the same industry, they will seek our help to solve it.
