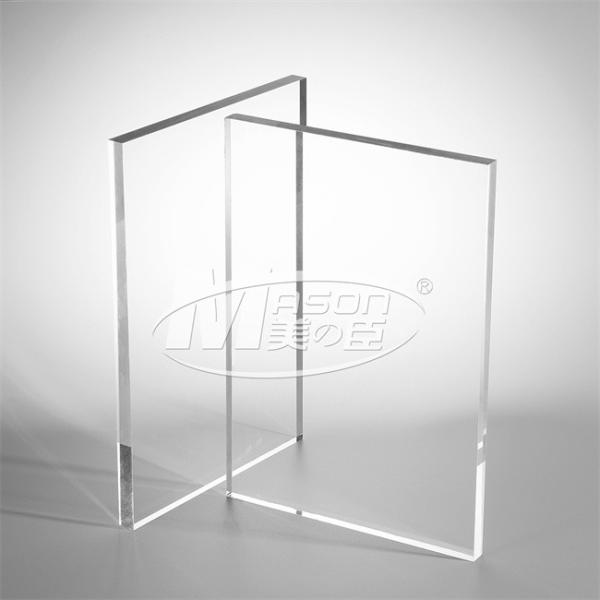

Transparent Plexiglass Flame Retardant Acrylic Sheet For Building Material
Transparent Plexiglass Flame Retardant Acrylic Sheet For Building Material
Specifications
Brand Name :
Mason
Model Number :
M-000
Certification :
SGS CE
Place of Origin :
China
MOQ :
150 SHEETS
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
10000KGS PER DAY
Delivery Time :
7-15DAYS
Packaging Details :
Max 1500kgs on one pallet
Product name :
High Quality Transparent Plexiglass Flame Retardant Acrylic Sheet For Building Material
Thickness :
3.0-20mm
Size :
1220*2440mm
Color :
Clear/Color
Application :
electrical devices, aircraft components, switchgear covers and other current-carrying items
Light transmission :
91%
Packing :
Film,Protect corner and pallet
Flame Rating :
V0
Description

High Quality Transparent Plexiglass Flame Retardant

Acrylic Sheet For Building Material

Transparent Plexiglass Flame Retardant Acrylic Sheet For Building Material

Description

MASON® Acrylic is proud to offer Low Flammability (LF) acrylic sheeting solutions. Fire rated acrylic sheet

is a flame inhibiting, UV-stable plastic sheeting and glazing product that is virtually unbreakable. Although

stronger than glass and plexiglass, fire rated acrylic is easily die cut, punched and sheared to meet your

fabrication needs, whatever they are.

FLAME RETARDANT ACRYLIC PARAMETER
Item Test Result Item Test Result
Transmittance% 94 Tensile Strain at Break, Mpa 5
Rockwell Hardness(M) 97 Modulus of elasticity in tension, Mpa 3.03
Vicat Softening Temperature(1.8MPA) 101 Rockwell Hardness(R) 124
Coefficient of Thermal Expansion ℃-1 7.0*10-5 Resistance to crazing in solvent No crazing
Dimensional Stability(shrinkage) % 1.9 Charpy Non-notch Impact Strength KJ/M2 21.9(C)
Tensile strength, Mpa 74.7
FLAME RETARDANT ACRYLIC SPECIFICATION
(The specification is 3mm plate, size will decreases with the increase of thickness)
Code Size with rubber edge Size after cut edge
Q 1250*1850mm 1220*1830mm
L0 1250*2450mm 1220*2440mm
L1 1270*2490mm 1220*2440mm
L2 1310*2530mm 1270*2490mm
L3 1350*2570mm 1310*2530mm
N 1550*3050mm 1510*3020mm
M 2050*3050mm 2010*3010mm

Product Display

100% VIRGIN PMMA

Transparent Plexiglass Flame Retardant Acrylic Sheet For Building Material

Strong flame retardancy and self extinguishing when leaving the fire

Transparent Plexiglass Flame Retardant Acrylic Sheet For Building Material

Transparent Plexiglass Flame Retardant Acrylic Sheet For Building Material

Transparent Plexiglass Flame Retardant Acrylic Sheet For Building Material

APPLICATION

MASON® Flame Retardant Acrylic sheet is ideal for a variety of industries and applications including

electrical devices, aircraft components, switchgear covers and other current-carrying items.

Transparent Plexiglass Flame Retardant Acrylic Sheet For Building MaterialTransparent Plexiglass Flame Retardant Acrylic Sheet For Building Material
