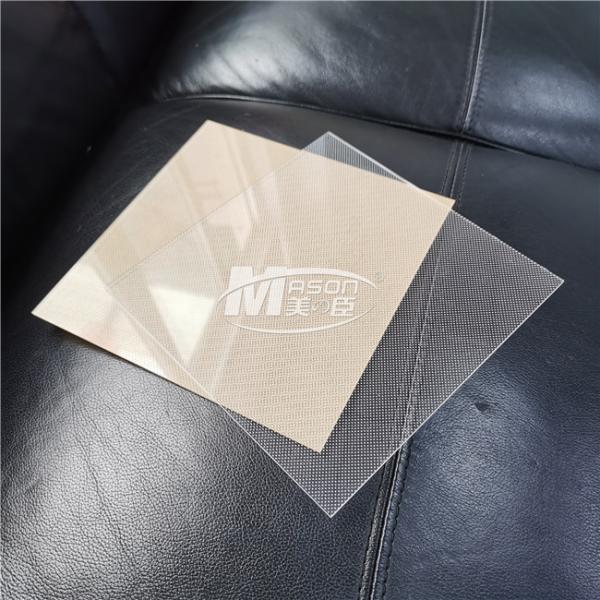

1220x2440mm 4mm Acrylic Light Guide Plate LGP For Lighting
1220x2440mm 4mm Acrylic Light Guide Plate LGP For Lighting
Specifications
Brand Name :
Mason
Model Number :
M-000
Certification :
SGS CE
Place of Origin :
China
MOQ :
50 SHEETS
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
10000KGS PER DAY
Delivery Time :
7-15DAYS
Packaging Details :
Max 1500kgs on one pallet
Product name :
1220*2440mm 4mm Thickness Acrylic Light Guide Panel LGP For Lighting
Thickness :
1-10mm
Size :
1220*2440mm
Material :
100% virgin material
Application :
LED,advertising,sign and ect
Light transmission :
92%
Packing :
Film,Protect corner and pallet
User Temperature :
-40ºC – + 80ºC
Description

1220*2440mm 4mm Thickness Acrylic Light Guide

Panel LGP For Lighting

1220x2440mm 4mm Acrylic Light Guide Plate LGP For Lighting

Description

Light Guide Plate (LGP) is a transparent acrylic panel made from pure PMMA virgin sheet. It distributes the

light coming from the light source evenly over the whole upper face to acrylic panel. It is a key component to

maximize the uniformity of light, to make backlight slim and to reorient the lines or dot light source such as

decoration lamp or LED to the plate light source.These sheets are most suitable because of the absolute flat

surface with zero thickness variation. This helps in achieving the best results possible.

Used for

1. LED Light Panels

2. LED TV Screens, Computer Screens, Cell-Phone Screens

3. Clip-Ons/Light Boxes used for advertising purposes

MASON LDP ACRYLIC SPECIFICATION

(The specification is 3mm plate, size will decreases with the increase of thickness)

Code Size with rubber edge Size after cut edge
Q 1250*1850mm 1210*1820mm
L0 1250*2450mm 1210*2420mm
L1 1270*2490mm 1220*2440mm
L2 1310*2530mm 1270*2490mm
L3 1350*2570mm 1310*2530mm
N 1550*3050mm 1510*3020mm

Product Display

100% VIRGIN PMMA

We provide LGP using the Mitsubishi Shinkolite Premium Acrylic Sheets.

1220x2440mm 4mm Acrylic Light Guide Plate LGP For Lighting

1220x2440mm 4mm Acrylic Light Guide Plate LGP For Lighting

1220x2440mm 4mm Acrylic Light Guide Plate LGP For Lighting

APPLICATION

It can work as led lighted shelf as well as backlit onyx stone backlit, fabricate material backlit, stained glass

backlit, shop & retail furniture light display, ATM & Vending machine advertising illumination and LED light

box, etc.

1220x2440mm 4mm Acrylic Light Guide Plate LGP For Lighting

1220x2440mm 4mm Acrylic Light Guide Plate LGP For Lighting

1220x2440mm 4mm Acrylic Light Guide Plate LGP For Lighting

FAQS

Q1: Are you a manufacturer?
Yes. We are factory manufacturing cast acrylic sheet, we have 6 acrylic production line, and acrylic annual

output 3,6000 tons to all over the world.

Q2:Can you give me a sample order?

Absolutly,we accept sample order.

Q3: Can I get OEM customized products for special application?
Sure, we provide OEM design and produce per customers' requirement.
