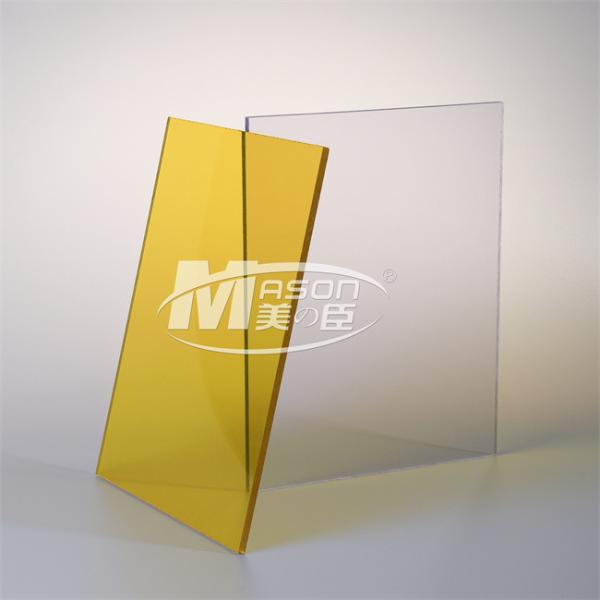

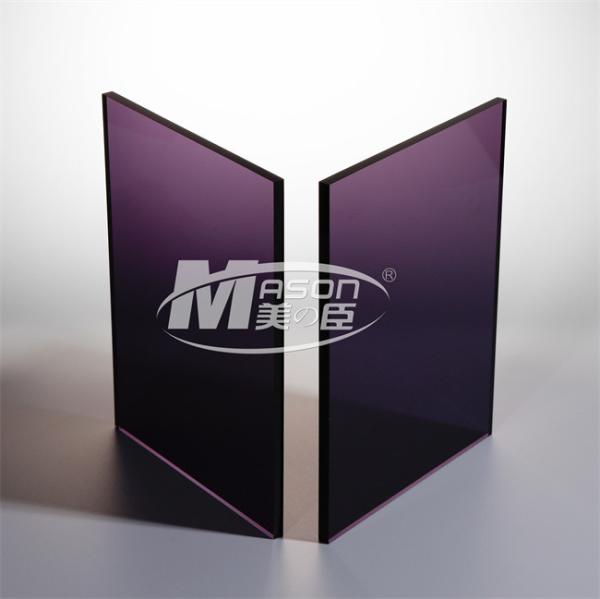

5mm 1220X2440 ESD Anti Static Acrylic Sheet For Patition Use
5mm 1220X2440 ESD Anti Static Acrylic Sheet For Patition Use
5mm 1220X2440 ESD Anti Static Acrylic Sheet For Patition Use
5mm 1220X2440 ESD Anti Static Acrylic Sheet For Patition Use
Specifications
Brand Name :
Mason
Model Number :
MCL0010
Certification :
CE, SGS
Place of Origin :
Shanghai
MOQ :
30 sheets
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
2 tons/day
Delivery Time :
3-8days
Packaging Details :
Pallet 1250x2450mm
Prodcuct Name :
5mm 1220*2440 ESD Anti-Static Acrylic Sheet For Patition Use
Color :
Clear, brown, blue,yellow and ect
Density :
1.2g/cm3
Size :
1220x2440mm/1220x1830mm and ect
Thickness :
3mm 5mm 6mm 8mm 10mm 12mm ect
Application :
Clean Equipment, Observation Window And Equipment Cover, Electronic Test Fixture, Etc
Light Transparency :
91%
Feature :
eco-friendly/waterproof/non-toxic
Package :
PE film &Pallet
Description

5mm 1220*2440 ESD Anti-Static Acrylic Sheet

For Patition Use

5mm 1220X2440 ESD Anti Static Acrylic Sheet For Patition Use

ESD Anti-Static Acrylic Sheet features:

1. The outside is beautiful, and the light transmittance is more than 90%.

2. The surface resistance value is 106-108 Ω, the friction voltage is less than 100V, and the electrostatic

half-life is less than 1s.

3. Excellent surface hardness and scratch resistance, and can be wiped with alcohol.

4. Excellent chemical resistance, IPA wiping times > 2000 times under a load of 500g, IPA immersion time

> 800H;

5. good anti-aging performance. The following test has no effect on antistatic performance.

① High temperature and high humidity 60 ℃ & 90% RH@72h ；

② Boiled at 80 ℃ for 4H;

③ - 40 ℃ ~ 60 ℃ @ 2h, 10 cycles

④ 35 ℃, 5% NaCl, 6.5-7.2ph salt spray test for 48h;

⑤ Xenon lamp aging 180W / m ^ 2, with spraying for 18min;

⑥ UV-B 313nm, 0.71 w / m2.

5mm 1220X2440 ESD Anti Static Acrylic Sheet For Patition Use

Mould Size with rubber edge Size after cut edge
1 1060x2060mm 1050x2050mm(3.4'x6.7')
2 1250x1850mm 1220x1830mm(4'x6')
3 1250x2450mm 1220x2440mm(4'x8')
4 1270x2490mm 1240x2460mm(4'x8')

5mm 1220X2440 ESD Anti Static Acrylic Sheet For Patition Use

5mm 1220X2440 ESD Anti Static Acrylic Sheet For Patition Use

5mm 1220X2440 ESD Anti Static Acrylic Sheet For Patition Use

Adopt advanced coating technology to keep the anti-static value of every corner of the board consistent,

and the antistatic effect is more lasting.

5mm 1220X2440 ESD Anti Static Acrylic Sheet For Patition Use

We attach great importance to every link of production,even the packaging.

5mm 1220X2440 ESD Anti Static Acrylic Sheet For Patition Use
