CTC 60% Granulated Activated Carbon 3.0mm Coal Based For Pressure Swing Adsorption
CTC 60% Granulated Activated Carbon 3.0mm Coal Based For Pressure Swing Adsorption
CTC 60% Granulated Activated Carbon 3.0mm Coal Based For Pressure Swing Adsorption
CTC 60% Granulated Activated Carbon 3.0mm Coal Based For Pressure Swing Adsorption
Specifications
MOQ :
25KG
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
30000tons/year
Packaging Details :
20kg/bag,25kg/bag,500kg/bag
Place of Origin :
China
Brand Name :
SHHXTC
Price :
Negotiable
CAS NO. :
64365-11-3
MF :
C
EINECS NO :
264-846-4
Product Name :
Granulated Activated Carbon
Description

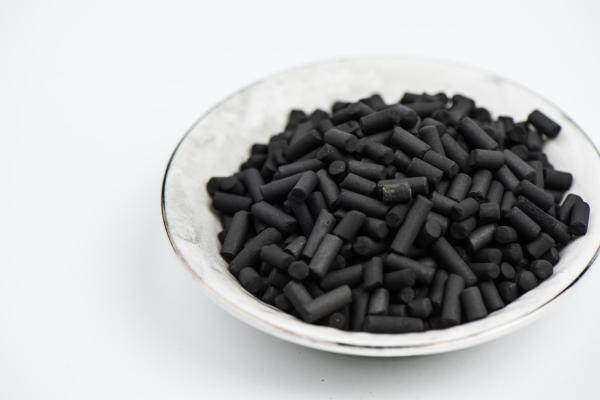

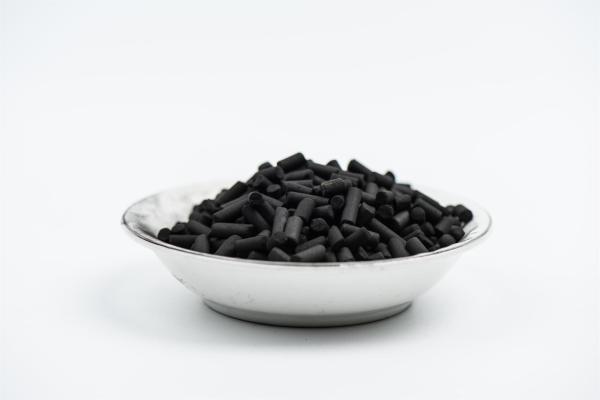

3.0mm CTC 60% Extruded Pellet Granule Coal Based Activated Carbon for Pressure Swing Adsorption

Description

The product is a kind of coal-based extruded activated carbon for pressure-swing adsorption.Physical activation: The precursor is developed into activated carbons using gases. This is generally done by using one combination of the following processes:


1.) Carbonization: Material with carbon content is pyrolyzed at temperatures in the range of 300–700℃, in absence of oxygen (usually in inert atmosphere with gases like argon or nitrogen).


2.) Activation/Oxidation: Raw material or carbonised material is exposed to oxidizing atmospheres (carbon monoxide, oxygen, or steam) at temperatures above 700℃ , usually in the temperature range of 700–900℃. The product is also designed to comply with all the applicable provision of AWWA standard for extruded activated carbon.

Applications

The product is used primarily to separate hydrogen from blast furnace gas or from the methyl alcohol gas. This carbon is a coarser mesh media and is generally used in deep bed filters where pressure drop may be concerned.It functions as a dual purpose media providing both filtration and adsorption.

Specification

Specifications Value
Iodine number 1010 mg/g (min)
Ash Content 10 % (max)
Moisture Content 2% (max)
Hardness 96% (min)
C.T.C 60 % (min)
Screen Size by weight, US Sieve Series
Partical Size 3.0 mm
Apparent density 490--530 g/l

Advantages

Having high hardness, the product can reduce the generation of fines and product losses during backwashing.Complicated pores structure provides an equal blend of low and high energy, also for effective removal of abroad range of high and low molecular weight organic compounds.Separating nitrogen and carbon dioxide from the air.
Separating methane from ferment gas.

CTC 60% Granulated Activated Carbon 3.0mm Coal Based For Pressure Swing Adsorption

Product tags

pressure swing adsorption nitrogen generator

,

granular activated carbon adsorption

,

activated carbon adsorption
