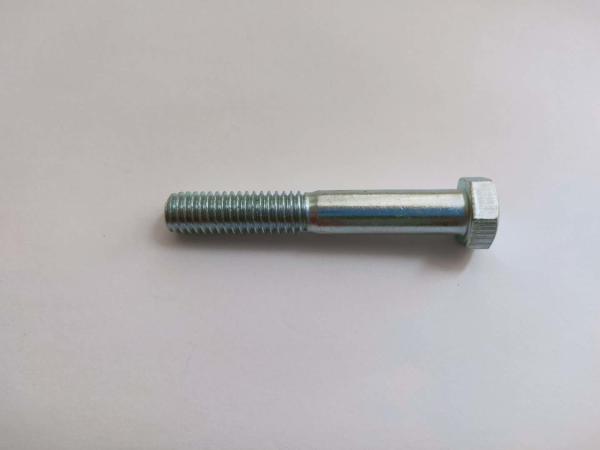

DIN931 Steel Zinc Plated Half Threaded Hex Head Bolts , Partially Threaded Metric Bolts
DIN931 Steel Zinc Plated Half Threaded Hex Head Bolts , Partially Threaded Metric Bolts
DIN931 Steel Zinc Plated Half Threaded Hex Head Bolts , Partially Threaded Metric Bolts
DIN931 Steel Zinc Plated Half Threaded Hex Head Bolts , Partially Threaded Metric Bolts
DIN931 Steel Zinc Plated Half Threaded Hex Head Bolts , Partially Threaded Metric Bolts
DIN931 Steel Zinc Plated Half Threaded Hex Head Bolts , Partially Threaded Metric Bolts
DIN931 Steel Zinc Plated Half Threaded Hex Head Bolts , Partially Threaded Metric Bolts
DIN931 Steel Zinc Plated Half Threaded Hex Head Bolts , Partially Threaded Metric Bolts
DIN931 Steel Zinc Plated Half Threaded Hex Head Bolts , Partially Threaded Metric Bolts
DIN931 Steel Zinc Plated Half Threaded Hex Head Bolts , Partially Threaded Metric Bolts
Specifications
Model Number :
M6-M25 / 1/4"-1"
Place of Origin :
china
MOQ :
20000pcs/a size
Payment Terms :
T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability :
100 tons/month
Delivery Time :
T/T,45 days upon receipt of 30% deposit
Packaging Details :
25KG/CTN,36CTNS/PLT
Standard :
DIN931,DIN933
Length :
10mm-150mm
Grade :
4.8/6.8/8.8/10.9
Description

Product Description

Hex bolts,also called hexagon screw head bolts,hex cap bolts ,hex-cap screws,or machine bolts,are a very common choice when it comes to construction and repair.Hexagon screw head bolts come in a large variety of sizes and diameters. The besr way to choose the right hex bolt is to find the bolt material that best suits your needs

DIN931 Steel Zinc Plated Half Threaded Hex Head Bolts , Partially Threaded Metric Bolts

Unit:mm
d M1.6 M1.7 M2 M2.3 M2.5 M2.6 M3 M3.5 M4 M5 M6 M7 M8 M10 M12 M14 M16 M18 M20 M22 M24 M27 M30 M33 M36 M39
p 0.35 0.35 0.4 0.45 0.45 0.45 0.5 0.6 0.7 0.8 1 1 1.25 1.5 1.75 2 2 2.5 2.5 2.5 3 3 3.5 3.5 4 4
b L≤125 9 9 10 11 11 11 12 13 14 16 18 20 22 26 30 34 38 42 46 50 54 60 66 72 78 84
125＜L≤200 / / / / / / / / / 22 24 26 28 32 36 40 44 48 52 56 60 66 72 78 84 90
L＞200 / / / / / / / / / / / / / 45 49 53 57 61 65 69 73 79 85 91 97 103
ds max 1.6 1.7 2 2.3 2.5 2.6 3 3.5 4 5 6 7 8 10 12 14 16 18 20 22 24 27 30 33 36 39
min A 1.46 1.56 1.86 2.16 2.36 2.46 2.86 3.32 3.82 4.82 5.82 6.78 7.78 9.78 11.7 13.7 15.7 17.7 19.7 21.7 23.7 / / / / /
B / / / / / / / / / / / / / / / / 15.6 17.6 19.5 21.5 23.5 26.5 29.5 32.4 35.4 38.4
k A max 1.22 1.325 1.52 1.725 1.82 1.925 2.12 2.52 2.92 3.65 4.15 4.95 5.45 6.58 7.68 8.98 10.2 11.7 12.7 14.2 15.2 / / / / /
min 0.98 1.075 1.28 1.475 1.58 1.675 1.88 2.28 2.68 3.36 3.85 4.65 5.15 6.22 7.32 8.62 9.82 11.3 12.3 13.8 14.8 / / / / /
B max / / / / / / / / / / / / / / / / 10.3 11.9 12.9 14.4 15.4 17.4 19.1 21.4 22.9 26.4
min / / / / / / / / / / / / / / / / 9.71 11.2 12.2 13.7 14.7 16.7 18.3 20.5 22.1 24.6
s max 3.2 3.5 4 4.5 5 5 5.5 6 7 8 10 11 13 17 19 22 24 27 30 32 36 41 46 50 55 60
min A 3.02 3.32 3.82 4.32 4.82 4.82 5.32 5.82 6.78 7.78 9.78 10.7 12.7 16.7 18.7 21.7 23.7 26.7 29.7 31.6 35.4 / / / / /
B / / / / / / / / / / / / / / / / 23.2 26.2 29.2 31 35 40 45 49 53.8 58.8

DIN931 Steel Zinc Plated Half Threaded Hex Head Bolts , Partially Threaded Metric Bolts

Hex head bolt Mechanical Property:

Bolt mechanical parts,with nuts cylindrical threaded fasteners.By the head and the screw(with extemal thread of the cylinder) of two parts of fasteners,to cooperate with nut,used for fastening the two parts with hole.This kind of connection form according to bolt connection.Such as screw the nut on the bolt,and can make the two parts separately,so the bolt connection is a detachable

DIN931 Steel Zinc Plated Half Threaded Hex Head Bolts , Partially Threaded Metric Bolts

DIN931 Steel Zinc Plated Half Threaded Hex Head Bolts , Partially Threaded Metric Bolts
