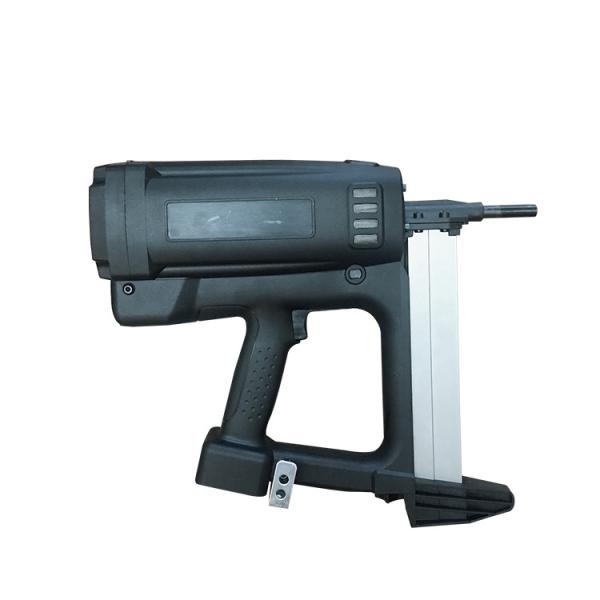

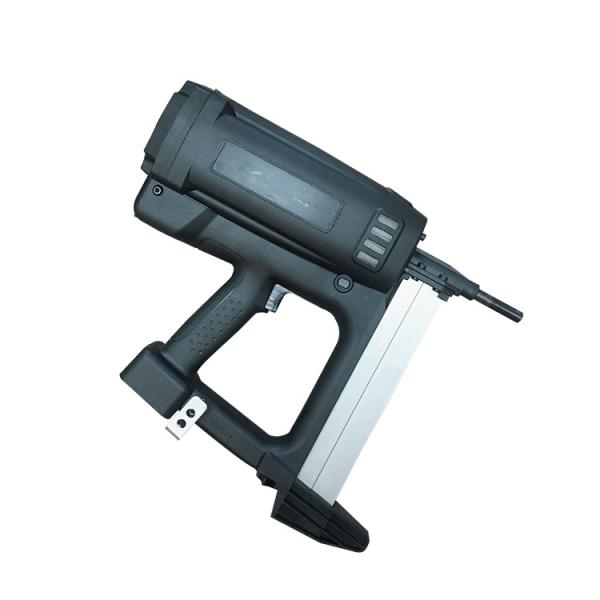

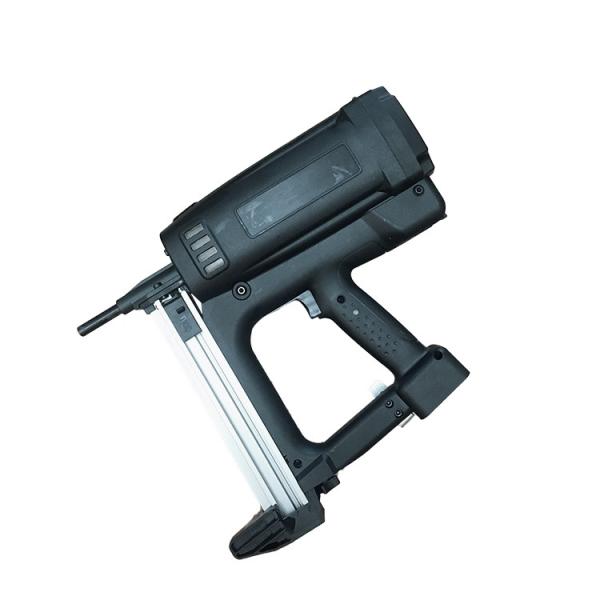

Safe Powerful Gas Actuated Tools Shooting Gas Actuated Nail Gun 2.5hrs Charge Time
Safe Powerful Gas Actuated Tools Shooting Gas Actuated Nail Gun 2.5hrs Charge Time
Safe Powerful Gas Actuated Tools Shooting Gas Actuated Nail Gun 2.5hrs Charge Time
Safe Powerful Gas Actuated Tools Shooting Gas Actuated Nail Gun 2.5hrs Charge Time
Safe Powerful Gas Actuated Tools Shooting Gas Actuated Nail Gun 2.5hrs Charge Time
Safe Powerful Gas Actuated Tools Shooting Gas Actuated Nail Gun 2.5hrs Charge Time
Specifications
Model Number :
GN120
Place of Origin :
CHINA
MOQ :
10PCS
Payment Terms :
T/T, Western Union, MoneyGram, D/P, L/C
Supply Ability :
1000PCS/MONTH
Delivery Time :
about 7-45 days after seller receive 30% advance payment from buyer.
Packaging Details :
1PC/BOX,5BOXES/CARTON,THEN PALLET
Application :
conduits, steel parts,doors, windows, Etc
Power :
120(joule)
Available Nails :
Plastic strip nails
Nail length :
1-9/32" (15mm) ~ 1-9/16" (40mm)
Nail Shank diameter :
0.102" (2.6mm) ~ 0 .120" (3.0mm)
Nail Head diameter :
0.250" (6.3mm)
Cycle Rate :
Drive approximately 1,000 nails per fuel cell
Battery Pack :
Li-Ion 7.2V 1.5Ah
Using temperature range :
23℉~ 120℉ ( -5℃ ~ 50℃ )
Weight :
7.70lbs. (3.50kg include battery)
Description

Gas Actuated Tools System Shooting Nail Gun Concrete steel Nails Gun

This is versatile,safe,reliable and powerful tool can use nearly all heavy,medium or light-duty fasteners,it uses 165A Gas ,optimum antispall and anti-spatter shield makes the fastening performance better.

Gas driven fastening systems tool:
Features:
1. Integrated nail magazine with spring lock for quick and easy loading.
2. Nail magazine holds 33nails and equips with dust-proof guard to avoid dust get into nail feeder
3. A high driving power of 100 Joules lets the nail penetrate through 6mm steel easily
4. New designed slender nosepiece allows working in hard-to- reach spaces
5. Equipped with pushing nose cap with two different depths for different nail depth , and anti-skid for nosepiece.
6. Modular design for easy clean & maintenance
7. Low battery indicator light alerts the user of battery status
8. Dry-Fire lockout prevents accidental dry-fire
9. Over-Molded Grip for comfort and control
10. Drives approx. 1,100 nails per fuel cell
11. Drives approx. 9,000 nails per battery charge

Detailed description

Concrete nail gun Specification
Model GN120
Type of power Piston reciprocating
Dimensions 17.24” (L) x 14.55” (H) x 4.8”(W)
438mm(L) x 370mm(H) x 122mm (w)
Weight 7.70lbs. (3.50kg include battery)
Power 120(joule)
Available Nails Plastic strip nails
Nail length 1-9/32” (15mm) ~ 1-9/16” (40mm)
Shank diameter Ø.102” (2.6mm) ~ Ø .120” (3.0mm)
Head diameter Ø 0.250” (6.3mm)
Magazine capacity 33 nails (3- strip)
Cycle Rate 1 ~ 2 nails / second
Fuel Cell Drive approximately 1,000 nails per fuel cell
Battery Pack Li-Ion 7.2V 1.5Ah
Charge time 2.5hrs
Using temperature range 23℉~ 120℉ ( -5℃ ~ 50℃ )

Applications

Fix the steel to concrete and structure steel

Charger

For Li-Ion 7.2V 1.5Ah battery pack
Input power source AC 110~240V / 50~60Hz /0.35A
Charge time About 2.5hrs
Charging voltage DC 7.2V
Charging current DC 0.75A
Charger weight 0.15kg (0.33lbs)

Packing

Concrete Nail Gun Related Products

Type: Concrete Nail
Material: Steel
Length: 22 mm to 38mm
Head Diameter: 6.3mm
Shank Diameter: 2.6-3.0mm
Standard: GB
Strip color: Black, Yellow,RED

FUEL CELL
Model No. CX165
Size Φ31.5mm x 165mm
Φ1.24” x 6.50”
Content Propane + Butane
Pressure 10.8 ~ 11.8 bar
Net Weight 40g / 80ml (1.41Oz)
Shots Qty around 1,100 shots
Using temperature 23℉~ 120℉ ( -5℃ ~ 50℃ )
Fit Models Toua Model GSN50, Paslode IM350/325, Senco, Bea, Hitach, Power, Max, etc.
