CLL SERIES,HIGH TONNAGE LOCK NUT CYLINDERS
CLL SERIES,HIGH TONNAGE LOCK NUT CYLINDERS
CLL SERIES,HIGH TONNAGE LOCK NUT CYLINDERS
CLL SERIES,HIGH TONNAGE LOCK NUT CYLINDERS
Specifications
Brand Name :
Adam
Model Number :
CLL
Certification :
CE,ISO
Place of Origin :
U.S.A China
MOQ :
1
Price :
100-2000USD
Payment Terms :
T/T, Western Union
Supply Ability :
100PCS/MONTH
Delivery Time :
5-8 work days
Packaging Details :
Wooden Case
Model No. :
CLL-502
Working Type :
Single Acting
Working pressure :
700bar
Capacity :
50 ton
Stroke :
50 mm
Collapsed Height :
164mm
Outside Dia. :
125mm
warranty :
3 years
Details :
http://www.adam1987.com/cll
Skype :
brucewu127
M.T :
86 15058465661
Description

Single Acting Lock Nut Cylinders

Capacity: 50 - 1000 ton

Stroke: 50 - 300 mm

Maximum Operating Pressure: 700 bar

• Single-acting, load return
• Safety Lock Nut for mechanical load holding
• Special synthetic coating for improved corrosion
resistance and lower friction for smoother operation
• Overflow port functions as a stroke limiter
• Interchangeable, hardened grooved saddles are standard
• CR-400 coupler and dust cap included on all models.

CLL SERIES,HIGH TONNAGE LOCK NUT CYLINDERS

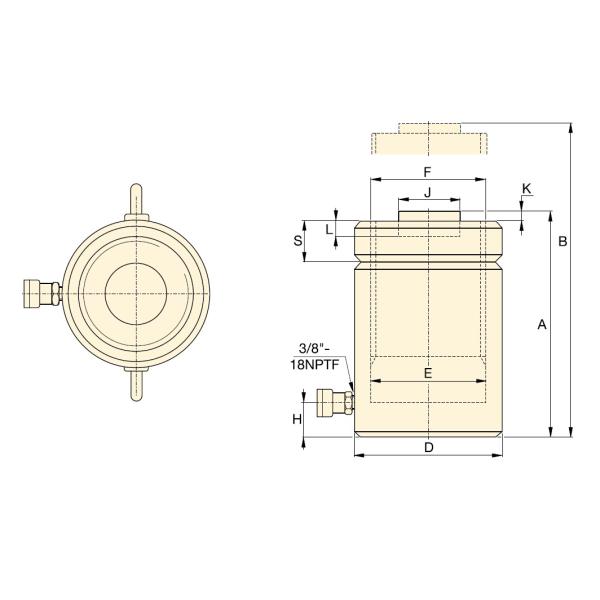

All CLL cylinders are
equipped with bolt-on
removable grooved saddles.

CLL SERIES,HIGH TONNAGE LOCK NUT CYLINDERS

To Secure Loads Mechanically

Model Number

Capacity

ton (kN)

Stroke

(mm)

Coll. Height

A (mm)

Ext. Height

B (mm)

Outs. Dia.

D (mm)

Cyl. Bore Dia.

E (mm)

Cylinder

Effective Area

(cm2)

Oil Capacity

(cm3)

Weight

(kg)
CLL-502 50 (496) 50 164 214 125 95,0 70,9 355 15
CLL-504 100 214 314 125 95,0 70,9 709 20
CLL-506 150 264 414 125 95,0 70,9 1064 25
CLL-508 200 314 514 125 95,0 70,9 1418 30
CLL-5010 250 364 614 125 95,0 70,9 1773 35
CLL-5012 300 414 714 125 95,0 70,9 2127 40
CLL-1002 100 (929) 50 187 237 165 130,0 132,7 664 30
CLL-1004 100 237 337 165 130,0 132,7 1327 39
CLL-1006 150 287 437 165 130,0 132,7 1991 48
CLL-1008 200 337 537 165 130,0 132,7 2654 56
CLL-10010 250 387 637 165 130,0 132,7 3318 64
CLL-10012 300 437 737 165 130,0 132,7 3981 73
CLL-1502 150 (1390) 50 209 259 205 159,0 198,6 993 53
CLL-1504 100 259 359 205 159,0 198,6 1986 66
CLL-1506 150 309 459 205 159,0 198,6 2979 78
CLL-1508 200 359 559 205 159,0 198,6 3972 92
CLL-15010 250 409 659 205 159,0 198,6 4965 104
CLL-15012 300 459 759 205 159,0 198,6 5958 117
CLL-2002 200 (1859) 50 243 293 235 184,0 265,6 1330 83
CLL-2006 150 343 493 235 184,0 265,6 3989 117
CLL-20012 300 493 793 235 184,0 265,6 7995 170
CLL-2502 250 (2562) 50 249 299 275 216,0 366,1 1832 116
CLL-2506 150 349 499 275 216,0 366,1 5496 162
CLL-25012 300 499 799 275 216,0 366,1 10995 234
CLL-3002 300 (3193) 50 295 345 310 241,0 456,2 2281 173
CLL-3006 150 395 545 310 241,0 456,2 6843 233
CLL-30012 300 545 845 310 241,0 456,2 13740 323
CLL-4002 400 (3919) 50 335 385 350 267,0 559,9 2800 250
CLL-4006 150 435 585 350 267,0 559,9 8399 327
CLL-40012 300 585 885 350 267,0 559,9 16800 441
CLL-5002 500 (5118) 50 375 425 400 305,0 731,1 3653 367
CLL-5006 150 475 625 400 305,0 731,1 10959 466
CLL-50012 300 625 925 400 305,0 731,1 21930 617
CLL-6002 600 (5983) 50 395 445 430 330,0 854,8 4277 446
CLL-6006 150 495 645 430 330,0 854,8 12830 562
CLL-60012 300 645 945 430 330,0 854,8 25650 737
CLL-8002 800 (8238) 50 455 505 505 387,0 1176,9 5882 709
CLL-8006 150 555 705 505 387,0 1176,9 17645 870
CLL-80012 300 705 1005 505 387,0 1176,9 35370 1110
CLL-10002 1000 (10260) 50 495 545 560 432,0 1466,4 7329 949
CLL-10006 150 595 745 560 432,0 1466,4 21986 1141
CLL-100012 300 745 1045 560 432,0 1466,4 43980 1430

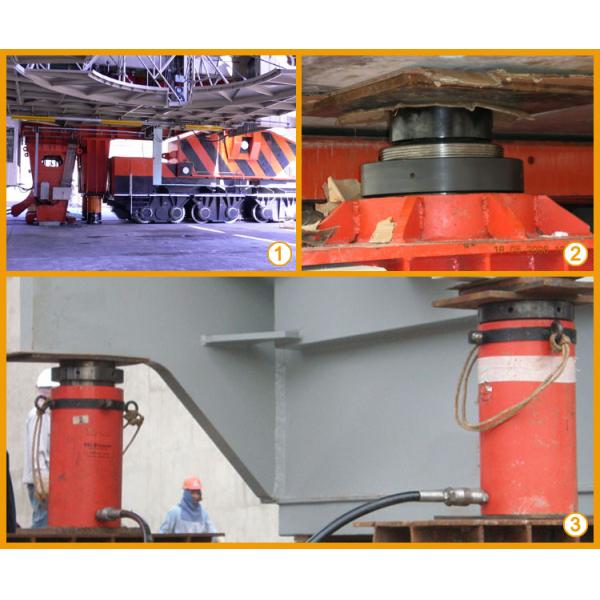

Steel or Heavy Structure Support.

CLL SERIES,HIGH TONNAGE LOCK NUT CYLINDERS

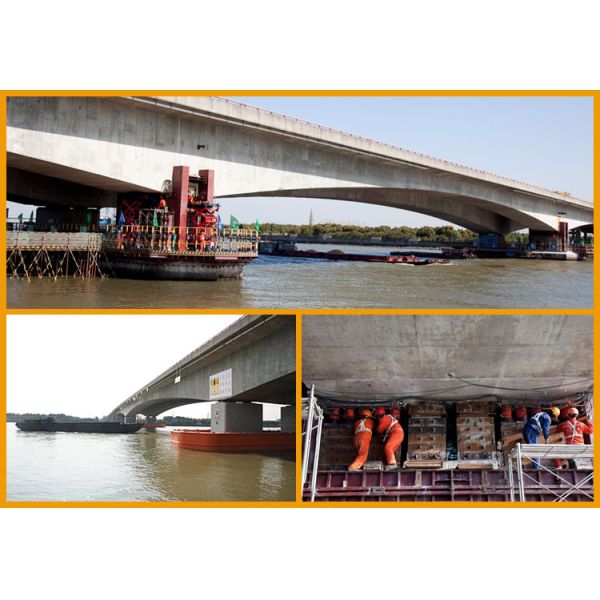

Bridge Lifting

CLL SERIES,HIGH TONNAGE LOCK NUT CYLINDERS

More information on detail, please feel free to contact me CLL SERIES,HIGH TONNAGE LOCK NUT CYLINDERS
