SINGLE-ACTING, HOLLOW PLUNGER CYLINDERS
SINGLE-ACTING, HOLLOW PLUNGER CYLINDERS
SINGLE-ACTING, HOLLOW PLUNGER CYLINDERS
SINGLE-ACTING, HOLLOW PLUNGER CYLINDERS
Specifications
Brand Name :
Adam
Model Number :
RCH
Certification :
CE,ISO
Place of Origin :
U.S.A & China
MOQ :
1
Price :
100-1200USD
Payment Terms :
T/T, Western Union,
Supply Ability :
100PCS/MONTH
Delivery Time :
5-8 work days
Packaging Details :
Wooden Case
Model No. :
RCH-1003
Working Type :
Single Acting
Working pressure :
700bar
Capacity :
100 ton
Stroke :
76 mm
Collapsed Height :
254 mm
Outside Dia. :
212 mm
warranty :
3 years
Details :
http://www.adam1987.com/rch
Skype :
brucewu127
M.T :
86 15058465661
Centre Hole Dia. :
79 mm
Description

RCH-Series, Hollow Plunger Cylinders

Capacity: 13 - 95 ton

Stroke: 8 - 155 mm

Center Hole Diameter: 19.6 - 79.0 mm

Maximum Operating Pressure: 700 bar

• Hollow plunger design allows for both, pull and push
forces
• Single-acting, spring return
• Nickel-plated, floating center tube on models over 20 ton
increases product life
• Baked enamel finish for increased corrosion resistance
• Collar threads for easy fixturing
• RCH-120 includes AR-630 coupler and has 1/4" nptf port
• RCH-121 and RCH-1211 have FZ-1630 reducer and
AR-630 coupler, all other models feature CR-400 coupler.

SINGLE-ACTING, HOLLOW PLUNGER CYLINDERS

Most RCH-Series cylinders
are equipped with smooth
saddles.

SINGLE-ACTING, HOLLOW PLUNGER CYLINDERS

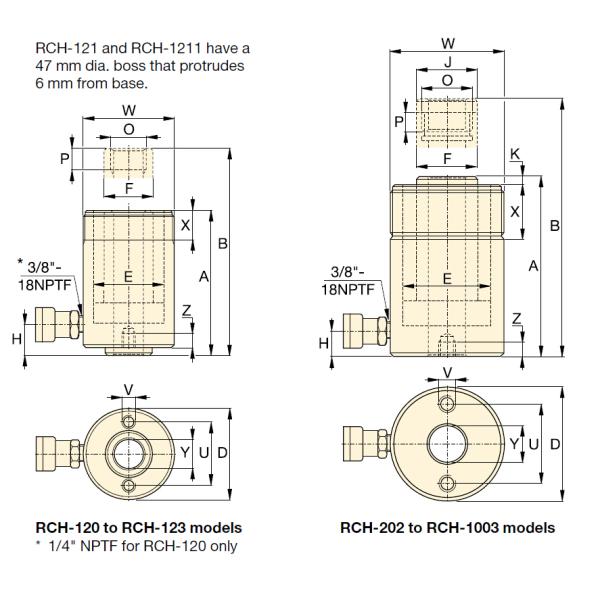

Check the parameters and confirm the model No.

Model No.

Capacity

ton (kN)

Stroke

(mm)

Coll.

Height

A (mm)

Center Hole Dia.

Y (mm)

Out.

Dia.

D (mm)

Bore

Dia.

E (mm)

Plunger.

Dia.

F (mm)

Effective.

Area

(cm2)

Oil

Capacity.

(cm3)

Weight

(kg)

RCH-120 13 (125) 8 55 19.6 69 54,1 35,1 17,9 14 1,5
RCH-121* 42 120 69 54,1 35,1 17,9 75 2,8
RCH-1211 42 120 69 54,1 35,1 17,9 75 2,8
RCH-123 76 184 69 54,1 35,1 17,9 136 4,4
RCH-202* 20 (215) 49 162 26.9 98 73,1 54,1 30,7 150 7,7
RCH-206 155 306 98 73,1 54,1 30,7 476 14,1
RCH-302* 30 (326) 64 178 33.3 114 88,9 63,5 46,6 298 10,9
RCH-306 155 330 114 88,9 63,5 46,6 722 21,8
RCH-603* 60 (576) 76 247 53.8 159 123,9 91,9 82,3 626 28,1
RCH-606 153 323 159 123,9 91,9 82,3 1259 35,4
RCH-1003* 95 (931) 76 254 79 212 165,1 127,0 133,0 1011 63,0

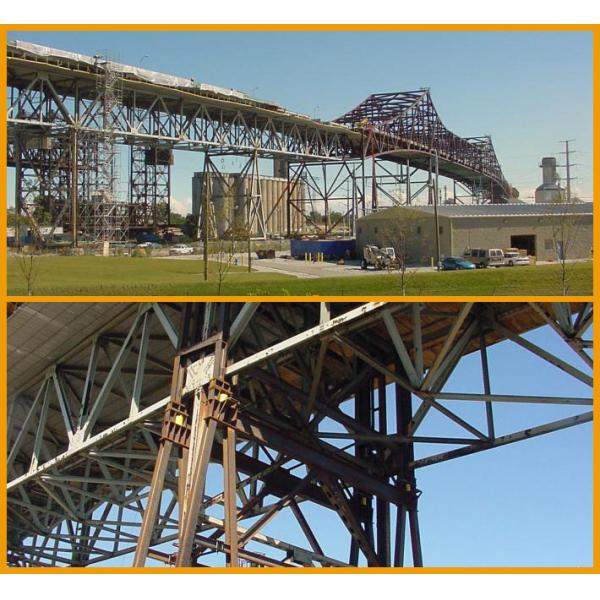

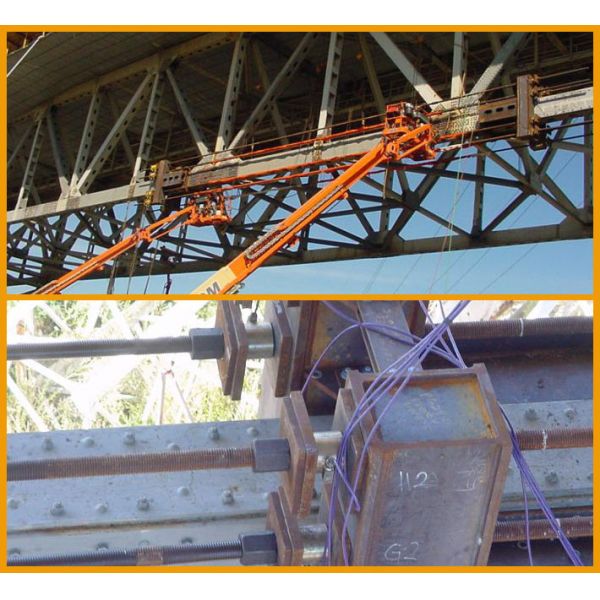

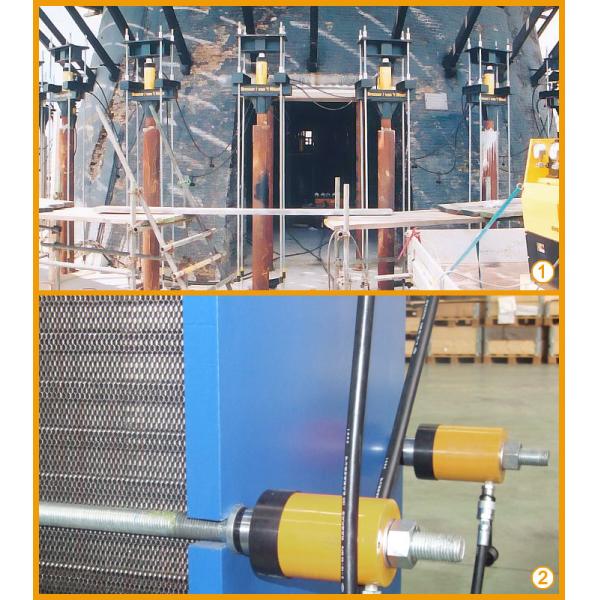

Versatility in Testing,
Maintenance and Tensioning Applications

SINGLE-ACTING, HOLLOW PLUNGER CYLINDERS

SINGLE-ACTING, HOLLOW PLUNGER CYLINDERS

SINGLE-ACTING, HOLLOW PLUNGER CYLINDERS

More information on detail, please feel free to contact me SINGLE-ACTING, HOLLOW PLUNGER CYLINDERS
