RAC-SERIES, ALUMINIUM CYLINDERS
RAC-SERIES, ALUMINIUM CYLINDERS
RAC-SERIES, ALUMINIUM CYLINDERS
RAC-SERIES, ALUMINIUM CYLINDERS
RAC-SERIES, ALUMINIUM CYLINDERS
RAC-SERIES, ALUMINIUM CYLINDERS
Specifications
Brand Name :
Adam
Model Number :
RAC
Certification :
CE,ISO
Place of Origin :
U.S.A & China
MOQ :
1
Price :
100-3200USD
Payment Terms :
T/T, Western Union,
Supply Ability :
100PCS/MONTH
Delivery Time :
5-8 work days
Packaging Details :
Wooden Case
Model No. :
RAC-202
Working Type :
Single Acting
Working pressure :
700bar
Capacity :
20 ton
Stroke :
50 mm
Collapsed Height :
174 mm
Outside Dia. :
85 mm
warranty :
3 years
Details :
http://www.adam1987.com/rac
Skype :
brucewu127
M.T :
86 15058465661
Description

Capacity: 20 - 150 ton

Stroke: 50 - 250 mm

Maximum Operating Pressure: 700 bar

• Composite bearings prevent metal-to-metal contact,
increasing cylinder life and resistance to side-loads of
up to 10%
• Hard-Coat finish on all surfaces resists damage and
extends cylinder life
• Handles included on all models
• Steel base plate and saddle for protection against loadinduced
damage
• Integral stop ring prevents plunger over-travel and is
capable of withstanding the full cylinder capacity
• High strength return spring for rapid cylinder retraction
• CR-400 coupler and dustcap included on all models
• All cylinders meet ASME B-30.1 and ISO 10100 standards.

RAC-SERIES, ALUMINIUM CYLINDERS

All RAC-cylinders are
equipped with bolt-on
removable hardened steel
saddles.

RAC-SERIES, ALUMINIUM CYLINDERS

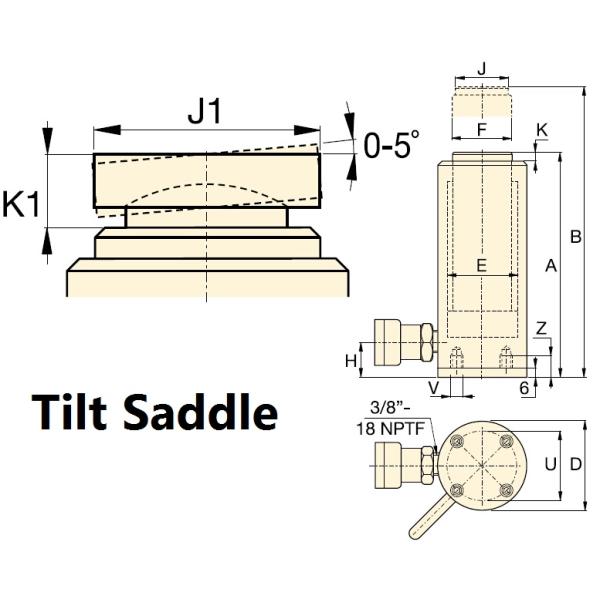

Check the parameters and confirm the Model No.

Model No.

Capacity

700 bar
ton
(kN)

 Stroke
(mm)

Oil Capacity

(cm3)

Effective
Area
(cm2)

Collapsed

Height

A (mm)

Extended

Height

B (mm)

Outside

Diameter

D (mm)

Bore

Diameter

E (mm)

Plunger

Diameter

F (mm)

Weight (kg)
RAC-202 20 (218) 50 156 31,2 174 224 85 63 50 3,6
RAC-204 100 312 31,2 224 324 85 63 50 4,1
RAC-206 150 468 31,2 274 424 85 63 50 4,6
RAC-302 30 (309) 50 221 44,2 181 231 100 75 60 4,5
RAC-304 100 442 44,2 231 331 100 75 60 5,2
RAC-306 150 663 44,2 281 431 100 75 60 5,9
RAC-502 50 (496) 50 354 70,9 186 236 130 95 80 8,5
RAC-504 100 709 70,9 236 336 130 95 80 9,8
RAC-506 150 1063 70,9 286 436 130 95 80 11,1
RAC-1004 100 (1002) 100 1431 143,1 271 271 180 135 110 19,6
RAC-1006 150 2147 143,1 321 471 180 135 110 21,9
RAC-1008 200 2863 143,1 371 571 180 135 110 24,2
RAC-1506 150 (1589) 150 3405 227,0 343 493 230 170 140 33,3

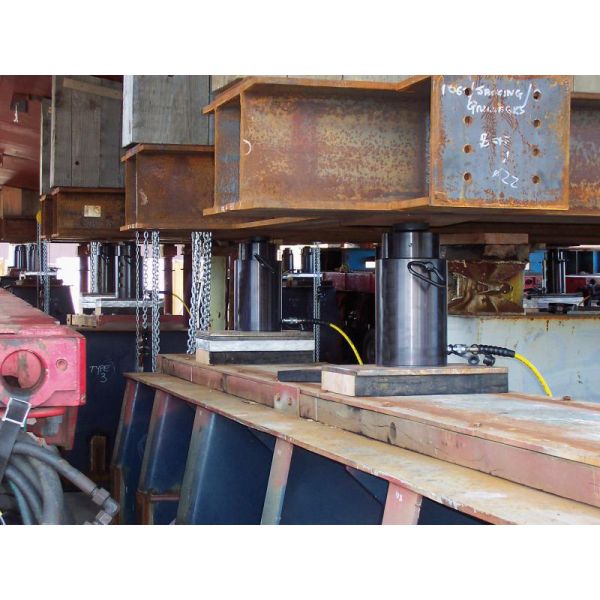

Steel Construction Support or Lifting.

Single acting RAC series aluminium cylinder.

RAC-SERIES, ALUMINIUM CYLINDERS

More information on detail, please feel free to contact me RAC-SERIES, ALUMINIUM CYLINDERS
