HYDRAULIC NUT SPLITTERS
HYDRAULIC NUT SPLITTERS
HYDRAULIC NUT SPLITTERS
HYDRAULIC NUT SPLITTERS
HYDRAULIC NUT SPLITTERS
HYDRAULIC NUT SPLITTERS
Specifications
Brand Name :
Adam
Model Number :
KTSL
Certification :
CE,ISO
Place of Origin :
U.S.A, China
MOQ :
1
Price :
10-2000USD
Payment Terms :
T/T, Western Union
Supply Ability :
80pcs/month
Delivery Time :
7-14Work Days
Packaging Details :
Wooden Case
Model No. :
NC,NS
Customized :
YES
Warranty :
3 Years
Details :
http://www.adam1987.com/ncns
M.T :
86 150 5846 5661
Skype :
brucewu127
Description

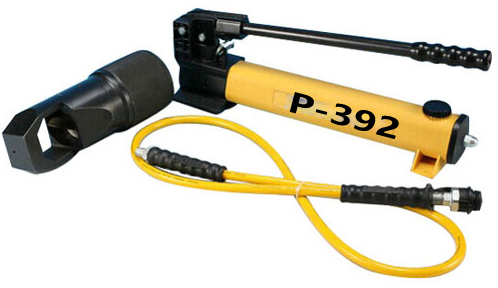

Single-Acting Hydraulic Nut Splitters

NC-Series Hydraulic Nut Splitters

Capacity:
49 - 882 kN (5-90 ton)
Bolt Range:
M6 - M48
Maximum Operating Pressure:
700 bar

HYDRAULIC NUT SPLITTERS

HYDRAULIC NUT SPLITTERS

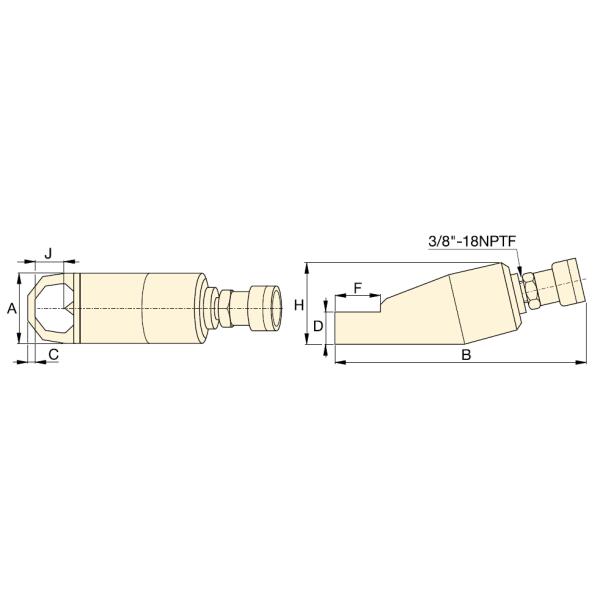

Bolt
Range
(mm)		 Hexagon Nut Range (mm) Capacity
ton (kN)		 Oil
Capacity
(cm3)		 Model
Number		 Dimensions (mm) (kg)
A B C D F H J
M6 - M12 10 - 19 5 (49) 15 NC-1319 40 170 7 19 28 48 21 12
M12 - M16 19 - 24 10 (98) 20 NC-1924 * 54 191 10 26 40 62 25 20
M16 - M22 24 - 32 15 (147) 60 NC-2432 * 64 222 13 29 51 72 33 30
M22 - M27 32 - 41 20 (196) 80 NC-3241 * 75 244 17 36 66 88 43 44
M27 - M33 41 - 50 35 (343) 155 NC-4150 94 288 21 45 74 105 54 82
M33 - M39 50 - 60 50 (490) 240 NC-5060 106 318 23 54 90 128 60 118
M39 - M48 60 - 75 90 (882) 492 NC-6075 156 393 26 72 110 181 80 341

• Compact and ergonomic
design, easy to use
• Unique angled head design
• Single-acting, spring return cylinder
• Heavy duty chisels can be reground
• Nut Splitters include spare chisel, spare set screw and wrench
used to secure the chisel. A CR-400 coupler is standard.
• Applications include service trucks, piping industry, tank
cleaning, petrochemical, steel construction, mining, etc.

HYDRAULIC NUT SPLITTERS

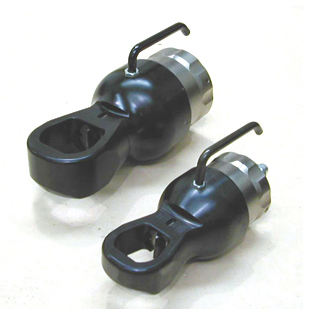

NS-Series Hydraulic Nut Splitters

Power and Precision
High Performance Nut Splitter

Capacity:
49 - 882 kN (5-90 ton)
Bolt Range:
M6 - M48
Maximum Operating Pressure:
700 bar

HYDRAULIC NUT SPLITTERS

HYDRAULIC NUT SPLITTERS

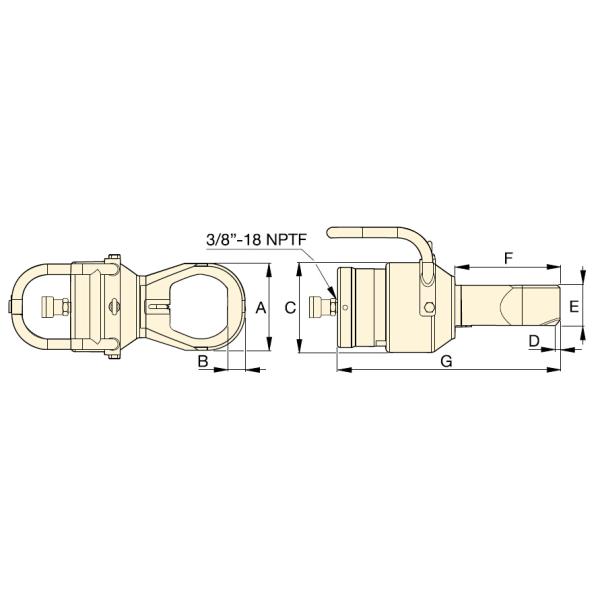

Bolt
Range
(mm)

Hexagon

Nut Range
(mm)

 Capacity
ton
(kN)		 Oil
Capacity
(cm3)

Model No.
Single

Acting

Model No.
Double

Acting

 Dimensions (mm) (kg)
A B C D E F G
M45 - M52 70 - 80 103 (917) 377 NS-7080 NS-7080D 132 28 180 80 81 186 412 370
M45 - M56 70 - 85 103 (917) 377 NS-7085 NS-7085D 145 30 180 80 81 196 422 370
M45 - M64 70 - 95 103 (917) 377 NS-7095 NS-7095D 160 32 180 80 81 201 432 385
M45 - M72 70 - 105 103 (917) 377 NS-70105 NS-70105D 174 35 180 90 81 209 443 395
M76 - M80 110 - 115 193 (1711) 819 NS-110115 NS-110115D 189 36 234 37 111 234 472 690
M76 - M90 110 - 130 193 (1711) 819 NS-110130 NS-110130D 219 41 234 25 111 242 493 715

• Specially designed to suit standard
ANSI B16.5 / BS1560 flanges
• Single-acting (spring return) or double-acting cylinder
• Tri-blade technology provides three cutting surfaces
on a single blade
• Interchangeable heads provide maximum nut
range flexibility
• Preset scale allows controlled blade extension,
which avoids damage to bolt threads
• Grip tape and handle included for more
secure manoeuvrability
• Nickel-plated cylinder body for excellent corrosion
protection and improved durability in
harsh environments
• Internal Pressure Relief Valve for overload protection
• CR-400 coupler and dustcap included on all models.

HYDRAULIC NUT SPLITTERS

Easily removing rusty nuts during railroad
construction is just one of many application
examples for the Hydraulic Nut Splitter

HYDRAULIC NUT SPLITTERS

More information on detail, please feel free to contact me HYDRAULIC NUT SPLITTERS
