PCI Express PCI-E 3.0 4X to NGFF M.2 2280 M2 NVME SSD Converter Adapter Card Cooling Fan + High Speed Extension Cable 100MM.

Product features:

1. Allows user to use standard M.2 M-Key NVME SSD to PCIe x4/x8/x16 slot of the Desktop PC, But speed at 4X speed only.

2. Support 2230/2242/2260/2280 type M.2 Card dimension.

3. Only support M.2 Socket 3 PCI-e-based M Key SSD, doesn’t support M.2 SATA bus B key SSD.

4.The cooling fan is designed for active cooling mode, the SSD heat can be discharged in time.

5. LED switch can control the LED Power ON/OFF, it will not bring the dazzling feeling when you use it in the night.

6. Cable length:100mm.

Product Overview:

This product is a carefully designed NGFF (M.2) Key-M slot to PCI-E 4x 3.0 extension cable, designed to provide users with high-performance and multifunctional storage expansion solutions. Through advanced technology and exquisite craftsmanship, stable support for various sizes of NVME hard drives has been achieved, and optimization has been made in terms of heat dissipation, lighting efficiency, and compatibility, meeting the needs of different users for high-speed storage and personalized customization. Whether computer enthusiasts or professional workstation users, they can obtain excellent user experience from it.

Product features:

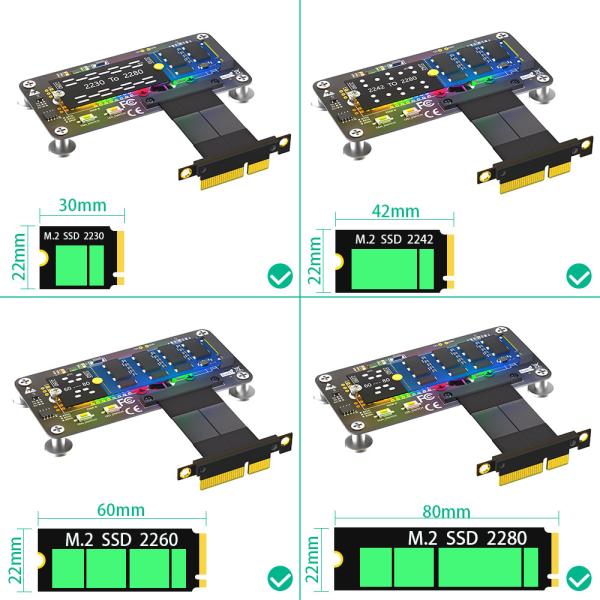

1.Excellent NVME SSD compatibility: The NGFF (M.2) Key-M slot demonstrates exceptional compatibility, accurately adapting to four sizes of NVME SSDs, 2230/2242/2260/2280mm, covering the vast majority of mainstream NVME SSD specifications on the market. It adopts optimized circuit design and precise contact point layout internally, ensuring seamless and stable electrical connection with gold fingers of different sizes of hard drives. The stability and reliability of data transmission are greatly guaranteed. Whether it is an entry-level NVME SSD or a flagship high-performance product, it can perform at its best on this slot, providing users with rich and flexible storage upgrade options and easily responding to diverse storage demand scenarios.

2. Comprehensive and efficient heat dissipation system: The PCB board of the product is designed with scientifically distributed dense heat dissipation holes. The aperture, spacing, and arrangement of these heat dissipation holes have undergone rigorous thermal simulation and optimization design, which can maximize the air circulation area and promote natural heat dissipation. At the same time, the equipped DC5V cooling fan adopts advanced fan blade design and efficient motor drive technology, which can generate strong and stable wind power, directly acting on the surface of the hard drive, quickly taking away the heat generated during high-speed SSD read and write processes. This active and passive combination of heat dissipation methods forms a comprehensive and efficient heat dissipation system, effectively reducing the operating temperature of SSDs, significantly extending their service life, ensuring stable performance of hard drives during long-term high load data storage and reading tasks, avoiding data loss, performance degradation, and SSD failures caused by overheating, and providing a solid and reliable guarantee for secure data storage.

3. Personalized lighting effect and intelligent control integration: Multiple 5050RGB LED beads are cleverly integrated on the PCB board, and through a carefully designed circuit control system, a rich and colorful, dazzling lighting effect mode can be presented. To meet different personalized aesthetic needs, customized lighting effects can also be set according to personal preferences and the overall style of the chassis. More importantly, both the cooling fan and LED are equipped with independent intelligent switch designs, which use high-quality micro switch components with sensitive touch and reliable electrical performance. Users can easily control the cooling fan and lighting effects separately based on the system's workload, ambient temperature, and personal usage habits. When the system is running under low load or when users are seeking a quiet environment, the cooling fan can be turned off to reduce noise; When there is no need for light effect display, the LED can be turned off separately, achieving a perfect balance between energy saving and personalization, greatly improving the user's control experience and personalized customization ability of the product.

4. Innovative magnetic foot pads and stable chassis installation: The magnetic foot pads at the four corners of the PCB board are made of high-strength magnetic materials and undergo special surface treatment processes to have good wear resistance and corrosion resistance. The magnetic strength of these magnetic foot pads has been precisely tuned to ensure firm adhesion to the inner wall of the chassis while avoiding interference with other electronic components inside the chassis due to excessive magnetism. During the installation process, users only need to place the PCB board close to the inner wall of the chassis, and the magnetic foot pad can quickly attach and fix it, making the operation simple and fast. This innovative magnetic foot pad design not only effectively solves the problems of cumbersome installation and easy loosening that may be caused by traditional fixing methods, but also significantly reduces the displacement and noise of equipment caused by vibration inside the chassis, providing an extremely stable operating environment for SSDs and the entire expansion system. It ensures that the equipment can still maintain normal and stable working conditions when the chassis is subjected to external vibration, handling, or slight shaking during daily use, greatly improving the reliability and practicality of the product.

5. Top level gold finger technology and excellent compatibility performance: The PCI-E 4x (3.0) gold finger at the output end adopts the industry-leading 3U high-density gold deposition technology, which achieves extremely high standards in terms of thickness, uniformity, and adhesion of the gold layer. The gold layer on the surface of the golden finger has been finely processed to have extremely low resistance and excellent oxidation resistance, which can ensure the integrity and stability of the signal during high-speed data transmission, effectively reduce signal attenuation and interference, and perfectly achieve the standard transmission speed of PCI-E 3.0, providing users with a high-speed and reliable data transmission experience. At the same time, the design of this golden finger fully considers compatibility with different motherboard slots, and can accurately adapt to the PCI-E 4X, PCI-E 8X, and PCI-E 16X slot types on the motherboard. Whether it is an old motherboard architecture or the latest high-performance motherboard platform, it can achieve seamless integration and stable operation. Its excellent compatibility benefits from precise optimization of the definition, length, and electrical performance of the gold finger pins, ensuring that the electrical connections between various motherboard slots comply with strict industry standards. Users do not need to worry about compatibility issues caused by differences in motherboard slots, truly achieving a plug and play convenient experience, greatly improving the product's versatility and applicability.

6.Imported high-quality wire and flexible customization selection: The extension cable uses flexible high-strength wire imported from Germany, which adopts a special material formula and manufacturing process and has excellent flexibility and tensile strength. It can easily bend and wire in complex internal environments of the chassis while maintaining good electrical performance. The signal shielding layer of its external package adopts a multi-layer shielding structure, effectively blocking the influence of external electromagnetic interference on the internal transmission signal, ensuring the purity and accuracy of data transmission. The product offers two default size specifications of 50mm and 100mm, which can meet the basic needs of most common chassis layouts. In addition, in order to meet the personalized customization needs of users for different chassis sizes and expansion distances, we also provide a service option of customizing the length arbitrarily. Users can accurately choose the appropriate extension cable length based on their actual usage scenarios and chassis design characteristics, achieving optimized utilization of internal space and clean wiring of the chassis, further enhancing the flexibility and adaptability of the product, and creating a more personalized and professional computer hardware expansion solution for users.

Product Slot Introduction:

The NGFF (M.2) Key-M slot follows strict industry standard design, with a reasonable internal circuit layout that can accurately identify and connect various hard drives that comply with the NVME protocol. The contact points of the slot are made of high-quality metal materials, which have been finely polished and processed to ensure tight contact and stable signal transmission with the hard drive's gold fingers. At the same time, the fixed structure design around the slot is firm, which can effectively prevent the hard drive from loosening or shifting during use, providing a solid foundation guarantee for the stable operation of the hard drive, allowing users to use NVME hard drives without worrying about unstable connections, fully leveraging the high-performance advantages of hard drives.

Transmission advantages:

Thanks to the 3U high-density gold deposition process and excellent wire quality of the PCI-E 4x (3.0) gold finger, this product exhibits outstanding transmission performance. It can achieve the standard transfer speed of PCI-E 3.0, with high-speed and stable data transfer capabilities, and can meet the high-speed read and write requirements of NVME hard drives, greatly improving data transfer efficiency. When performing operations such as large file transfer, system startup, game loading, etc., it can significantly reduce waiting time, allowing users to enjoy a smooth and fast storage experience. At the same time, the presence of signal shielding layers effectively reduces the impact of external electromagnetic interference on transmitted signals, ensuring the integrity and accuracy of data transmission, avoiding file damage or system failures caused by data transmission errors, and providing users with reliable data storage and transmission services.

Usage:

Select the appropriate NGFF (M.2) Key-M slot position based on the size of the hard drive, carefully insert the NVME hard drive into the slot, ensure that the hard drive is tightly connected to the slot, pay attention to the direction and force when inserting, and avoid damaging the hard drive's golden fingers and slot.

After confirming that the hard drive is installed correctly, firmly connect the NGFF (M.2) end of the extension cable to the slot where the hard drive is already installed, and then insert the PCI-E 4x (3.0) gold finger end of the extension cable into the corresponding PCI-E slot on the motherboard (PCI-E 4X, PCI-E 8X, or PCI-E 16X slots can be selected according to the motherboard's support). The insertion process should ensure that the gold finger is fully inserted into the slot to avoid poor contact.

Fix the PCB board in a suitable position inside the chassis, and use magnetic foot pads to attach the PCB board to the inner wall of the chassis to ensure its stable placement, avoiding damage to equipment or affecting connection stability due to shaking.

According to actual needs, control the opening and closing of the cooling fan and 5050RGB LED through independent switches. Turn on the cooling fan when using the hard drive for a long time or when better heat dissipation is needed; When pursuing personalized lighting effects, turn on LED lights; Turn off unnecessary devices when low power consumption and quiet environment are required.

Applicable scenarios:

Computer gamers: For players who are passionate about large-scale 3A games, fast game loading speed and smooth game running experience are crucial. This product can support high-performance NVME hard drives, greatly reducing game startup time and map loading time through PCI-E 3.0 high-speed transfer, allowing players to enter the game world faster and avoid long waiting times. At the same time, the cool lighting design can also add an e-sports atmosphere to the player's chassis, enhance the immersion and fun of the gaming experience, and meet the player's demand for high-performance game storage and personalized aesthetic pursuit.

Professional design and video editing personnel: In the field of professional design, such as graphic design, 3D modeling, video editing, etc., it is necessary to handle a large number of material files and complex project data. The high-speed NVME hard drive and stable transfer performance supported by this product enable designers to quickly read and store massive amounts of design materials, greatly improving work efficiency and reducing file loading and saving time. The efficient heat dissipation capability of the cooling fan ensures the stability of the hard drive under long-term high-intensity operation, avoiding data loss or project damage caused by overheating, providing a reliable storage solution for professional design work, and meeting the strict requirements of professionals for data storage speed and security.

Workstation and server applications: In workstation and server environments, there are extremely high requirements for data storage performance, reliability, and scalability. The compatibility of multiple sizes of hard drives and excellent transmission performance of this product enable it to meet the storage needs of different workstations and servers. Whether used as a system boot disk or data storage disk, it can run stably and efficiently. The powerful magnetic foot pad and signal shielding design can adapt to the complex electromagnetic environment and vibration conditions inside workstations and servers, ensuring the stability and reliability of equipment during long-term uninterrupted operation, providing a reliable storage expansion option for enterprise level users, and assisting in the efficient development of professional work.

Computer hardware enthusiasts: For those who pursue ultimate hardware performance and personalized customization, the rich features of this product undoubtedly have great appeal. Supports multiple sizes of NVME hard drives, making it convenient for them to choose different brands and performance hard drives for combination according to their preferences. The unique cooling fan and RGB lighting design can meet their needs for personalized display of hardware inside the chassis, creating a unique visual effect inside the chassis. At the same time, high-quality cables and exquisite craftsmanship, as well as customizable lengths, also meet the strict requirements of audiophiles for hardware quality and details, becoming one of their ideal choices for creating high-end customized computer hosts.

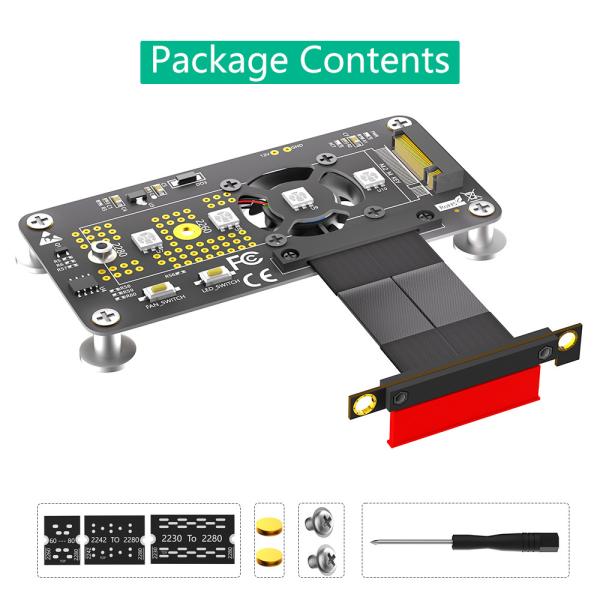

Package contents:

1x M.2 SSD to PCI- E 4X adapter.

4x M2 screw.

2X M.2 nut.

1x screwdriver.

3x PCB Extension Board.
