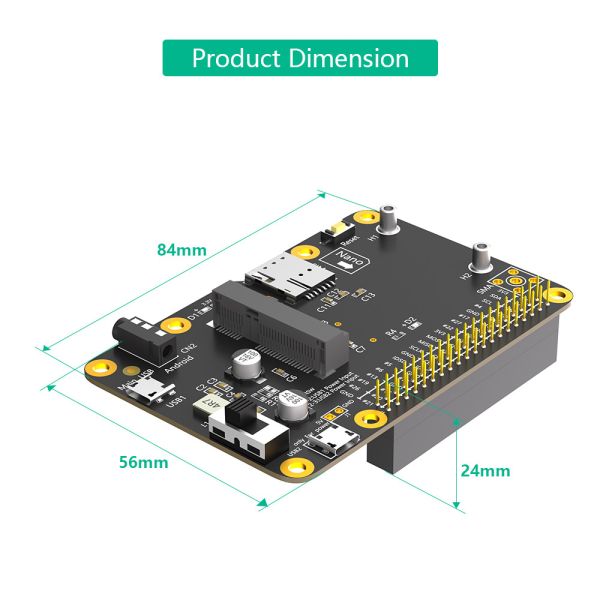

Product description:

1. Fully compatible with Raspberry Pi models that have the 40-pin GPIO header (4, 3, 2, B+).

2.Compatible the following brand Mini PCIe Modules.

Quectel: EC25/EC21/ EC20 /UC20/ LTE-EP06

Sierra :AirPrime MC Series

Telit: LM960,LE910V2,HE910,LE910CX

Huawei: ME909s-120,ME909s-821, and more

Simcom: SlM7100,SlM7230, and more

ZTE:ZM8620, and more

U-Blox:MPCI-L2 Series

Thales:PLS62W,mPLS8, mPLAS9

3.Compatible the following brand Boards

1. Raspberry Pi 4, 3, 2, B+

2. Asus Tinker Board

3.Rock 64*

4. Samsung ARTIK’s board

5. Latte Panda

4.Clip-in Mini PCIe socket compatible with worldwide LTE, UMTS/HSPA+ and GSM/GPRS/EDGE coverage with regional or global modules which work with different frequencies & carriers.

5. MANO SIM Card socket can easily reachable on the upside of the HAT.

6.Can be used standalone with PC/Laptop over micro USB, without stacking with Raspberry Pi.

7.Efficient and low quiescent current power circuit can hold up to 3Amps.

8.Working temperature range: -40°C ~ 80°C.

Note 1: The Base HAT doesn’t need or has a driver. Rather The host computer(such as RPi, Asus Tinker Board) needs the driver of the compatible module that will be used with the Base HAT. For example, if you are using Quectel’s EC25 with the Base HAT, then your host device should have the driver for Quectel EC25. Nowadays, most of the Linux kernel comes with the required drivers installed as a result the modules are recognized.

Note 2: These compatibility list created by assuming you’ve connected the Base HAT to the device via USB. UART communication can be work with every device in the list easily which have 3.3V level UART port.

Note 3: We don’t recommend the usage of long and low-quality micro USB cables between Base Shield and Raspberry Pi. It causes data and power loss. Thus the cable included the package works greatly.

Package Content:

1x 3G/4G&LTE Base HAT.

1x UsB 2.0 to Micro UsB Cable.

1x Screw Driver.

8x copper nut.

8x M2.5 screw.

1x quick installation Guide.
