2.5" SATA 3.0 22PIN To mSATA SSD Adapter Converter Card 6Gbps In Stock.

Product specifications:

1. Support full size mSATA SSD.

2. Transparent to the operating system and does not require any software drivers.

3. LED indicates power status.

4. Support Hi-Speed SATA3/ 6Gbps mass storage interface.

Product Overview:

This product is an SSD adapter designed specifically to solve the interface adaptation problem of storage devices, playing a key role in the field of storage expansion. It cleverly integrates an mSATA SSD slot, precisely docking with mSATA full-size SSDs, converting their data transmission paths to advanced SATA 3 interfaces, thereby achieving seamless connection with computer motherboards. At the same time, the two 3.3V LED beads equipped are like "data beacons", providing real-time feedback on the SSD reading status. In addition, the carefully designed brackets on both sides of the adapter card allow it to be securely mounted on the 2.5-inch SSD positioning hole reserved on the motherboard, providing users with a convenient, efficient, and stable SSD adapter solution. It is widely used in laptop upgrades, desktop storage expansion, and small server storage optimization scenarios.

Product features:

Efficient interface conversion: The core highlight lies in its excellent interface conversion capability. The mSATA SSD slot strictly follows the mSATA standard specification design, and the internal gold finger contact points are made of high-density gold-plated material, which has been finely gold-plated to ensure a tight and stable connection with the mSATA full height hard drive, accurately adapting to its electrical characteristics and transmission protocol. Through precise circuit design, mSATA hard disk data is smoothly converted to SATA 3 interface output, fully utilizing the high-speed and stable transmission advantages of SATA 3 interface to meet the strict storage speed requirements of modern data intensive applications. Whether it is large file transfer, system startup, or data reading and writing in multitasking processing, efficient and smooth operation experience can be achieved.

Intuitive status indication: Equipped with two 3.3V LED beads, it brings users a visual and convenient experience. These two light beads are closely related to the reading status of the SSD. When the hard drive is in a data reading state, the light beads will appear intuitively with a specific flashing frequency or constant light mode, allowing users to understand the working status of the SSD in real time without relying on complex software monitoring tools. For example, during data backup and software installation, it can quickly determine whether the SSD is working properly, detect potential data transmission problems in a timely manner, and ensure the stable operation of the storage system.

Stable installation design: Taking into full consideration the convenience and stability of installation in different motherboard environments, two brackets have been carefully designed on each side of the adapter card. These brackets are precisely sized and shaped to fit the 2.5-inch SSD positioning holes reserved on the motherboard, made of engineering plastic material with certain flexibility and strength. They can be easily inserted into the positioning holes during installation and provide stable support during use, effectively preventing displacement and loosening caused by external factors such as vibration and collision of the adapter card, ensuring reliable connection between the hard drive and motherboard, and safeguarding data transmission.

Product Structure and Interface Introduction:

mSATA hard drive slot: strictly built according to mSATA standards, with precise and error free internal dimensions, reasonable layout of gold finger contact area, and strong anti-oxidation gold plating process to ensure good conductivity even after long-term use, providing reliable guarantee for the insertion and electrical connection of mSATA full height SSDs. The slot is equipped with sturdy and durable buckle devices around it. Through clever mechanical structure design, when the hard drive is inserted into place, the buckle can automatically lock, ensuring that the hard drive is firmly in the slot and convenient for users to disassemble, providing convenience and reliability guarantee for frequent hard drive insertion and removal operations.

SATA 3 interface: Designed in accordance with the universal SATA 3 standard specifications, its internal pin layout is precise and error free, and high-quality metal materials are used to create contact points with excellent conductivity and signal transmission capabilities. The interface shell is made of metal material and grounded to effectively block external electromagnetic interference, ensuring power supply stability and data transmission integrity. When connecting to a computer motherboard, the external dimensional tolerance of the interface is controlled within a very small range, ensuring smooth insertion and removal, facilitating user connection, and laying a solid foundation for high-speed data transmission between the adapter card and the motherboard.

LED beads: High brightness, low-power 3.3V LED beads are selected, and through carefully designed internal circuit connections, they are accurately associated with the read status of the SSD. The lamp beads are packaged with long-life and high stability materials to ensure reliable illumination during long-term and frequent use, providing users with continuous and accurate reading status indicators and helping them quickly determine the working condition of the SSD.

Fixed bracket: Two brackets located on each side of the adapter card, manufactured using engineering aluminum alloy material molding technology, with precise dimensional accuracy and shape tolerance, ensuring perfect compatibility with the 2.5-inch hard drive positioning hole reserved on the motherboard. The surface of the bracket is designed with anti slip textures to increase friction with the inner wall of the positioning hole, further enhancing stability after installation. At the same time, reinforcement ribs are used at the connection between the bracket root and the adapter card body to improve the load-bearing capacity of the bracket and prevent it from breaking due to external forces.

Performance advantages:

High speed and stable data transmission: With precise mSATA to SATA 3 interface conversion, the high-speed transmission performance of SATA 3 interface is fully utilized, with a theoretical transmission rate of up to 6Gbps, significantly improving data transmission speed compared to traditional interfaces. In practical applications, whether it is transmitting massive high-definition video materials, reading and writing large databases, or running professional software with extremely high storage speed requirements, it can ensure fast and stable data transmission, reduce waiting time, improve work efficiency, and meet the needs of modern data intensive applications.

Accurate and real-time status monitoring: Through LED beads that synchronize with SSD reading status in real-time, users can grasp the working status of the hard drive with extremely high accuracy. Whether it is file reading and writing in daily office, data retrieval during game loading, or continuous reading and writing in professional data processing scenarios, as long as the status of the LED is observed, it is possible to timely detect whether there are hidden faults in the hard disk, such as data transmission lag, abnormal hard disk sleep, etc., which facilitates taking measures in advance to ensure data security and reduce the risk of data loss caused by hard disk failures.

Reliable and convenient installation experience: The carefully designed brackets on both sides and the installation method that adapts to the motherboard positioning holes make the adapter card both convenient and reliable during installation. Users do not need complex tools and additional fixed accessories, simply align the bracket with the motherboard positioning hole and gently insert it to complete the installation, saving installation time and labor costs. Moreover, during use, the bracket can effectively resist various external interferences, ensuring that the adapter card is always stable on the motherboard, guaranteeing the continuity of data transmission, and providing strong support for long-term stable use.

Usage:

Installation of mSATA hard drive: Firstly, align the gold finger of the mSATA full height hard drive that needs to be converted with the mSATA hard drive slot on the adapter card, and insert it slowly and steadily, paying attention to the correct insertion direction to avoid damaging the gold finger caused by forced insertion. Until the hard drive is fully inserted and the buckle automatically tightens, ensure that the hard drive is tightly connected to the slot to ensure the accuracy of subsequent data transmission.

Connect the computer motherboard: Connect the SATA 3 interface of the adapter card to the corresponding SATA 3 interface on the computer motherboard through a standard SATA data cable, ensuring that the data cable plug is tightly connected to the interface, smoothly inserted and removed, and avoiding loose or virtual connections. At the same time, if necessary, connect the SATA power cord to provide stable power supply for the hard drive and ensure its normal operation.

Install the adapter card to the motherboard: Pick up the adapter card, align the brackets on both sides with the 2.5-inch hard drive positioning holes reserved on the motherboard, gently insert until the bracket is fully inserted and feels stable, without the need for additional fixing accessories. During the insertion process, pay attention to the correct direction of the bracket to avoid inserting it in the wrong position, which may affect the installation effect.

Observe SSD read status: After completing the above installation steps and turning on the computer, pay attention to the status of the two 3.3V LED beads on the adapter card. Under normal circumstances, during system startup, file reading and writing, the LED will flash or stay on in a corresponding manner based on the reading status of the hard drive. If there is no response or abnormal flashing of the light beads, it may indicate that there is a problem with the hard drive or adapter card, and further checks are needed to ensure that the connection is tight and the hard drive is working properly.

Normal use and monitoring: During the normal operation of the computer, continuously monitor the status of the LED light beads and the read-write performance of the hard drive, such as whether there are any lagging, delay, or other phenomena. If any abnormalities are found, they should be promptly investigated and resolved by checking the connection, restarting the computer, replacing the hard drive, etc., to ensure the stable and efficient operation of the storage system.

Applicable scenarios:

Laptop storage upgrade: After using a laptop for a period of time, as the amount of data increases, the existing hard drive storage space often becomes insufficient. This adapter card can easily connect mSATA full height SSDs to laptops by converting them to SATA 3 interfaces and connecting them to the motherboard, achieving rapid expansion of storage capacity. At the same time, it uses LED lights to monitor the status of the hard drive in real time, ensuring data security and improving the overall performance of laptops, meeting users' storage needs for daily office, entertainment, and other aspects.

Desktop storage expansion: For desktop users who need to add additional storage devices and happen to have mSATA full height SSDs on hand, this adapter card provides an ideal solution. It can easily integrate mSATA SSDs into the storage system of desktop computers, leveraging the high-speed transfer advantage of SATA 3 interface to achieve fast data read and write, providing strong support for users such as gamers and video editors who have high requirements for storage speed and capacity, and optimizing the storage configuration of desktop computers.

Small server storage optimization: In a small server environment, it is necessary to balance storage capacity, speed, and stability. This adapter card can efficiently connect mSATA SSDs to server motherboards, meeting the strict requirements of servers for storage devices through stable interface conversion and reliable installation design. At the same time, using LED light beads to monitor the real-time reading status of SSDs facilitates the timely detection and resolution of potential storage issues, ensuring the secure and stable transmission of server data, and improving the overall operational efficiency of the server.

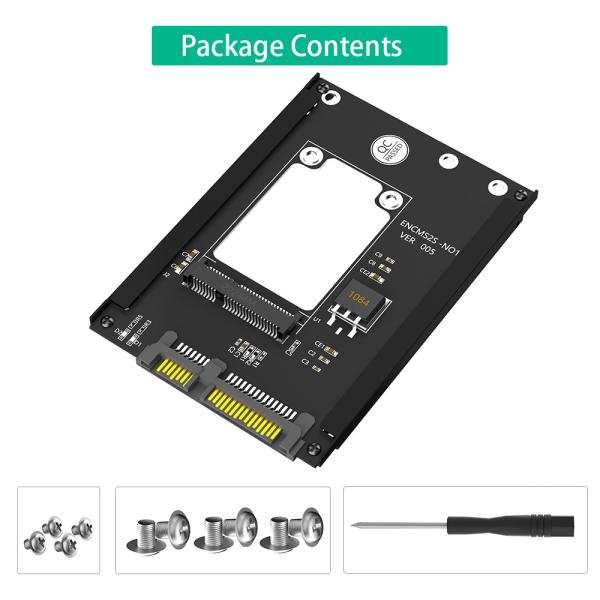

Package Includes:

1 X msata Adapter.

1 x Screw Driver.

4X M2 Screw.

6X M3 Screw.
