1. Installation Direction towards CPU.

2. Operation Temperature: 0℃~+85℃.

3.Dimension(Maximum): L*W*H=107*61.8*13.8 (mm).

4.Weight: 23g.

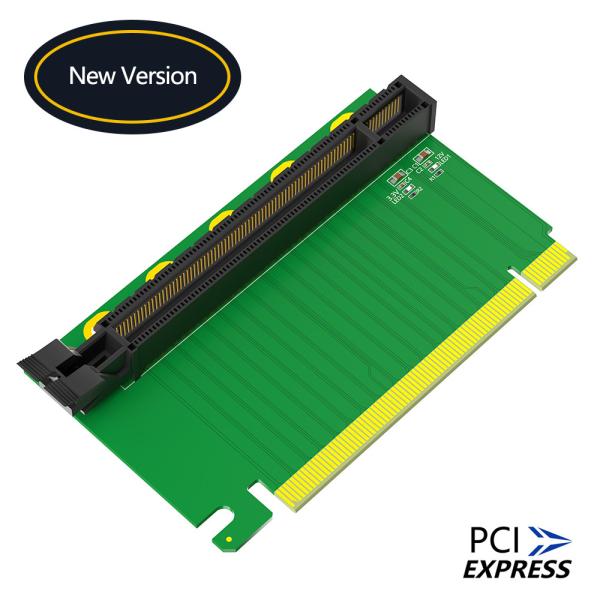

Product Overview:

This product is a 90 degree steering card designed specifically to meet the needs of PCI-E 16X slots on computer motherboards. It plays an important role in computer hardware expansion and layout optimization. It can cleverly change the installation direction of PCI-E 16X devices towards the CPU direction, providing effective solutions for users in terms of space utilization, hardware installation convenience, and heat dissipation inside the chassis. It is widely applicable to various computer assembly and upgrade scenarios that require flexible adjustment of the installation position of PCI-E 16X devices.

Product features:

1. Precise slot adaptability: The product is designed strictly according to the PCI-E 16X 3.0 standard, which can perfectly adapt to the PCI-E 16X slot on the motherboard. The interface adopts high-precision mold manufacturing technology to ensure that the dimensional accuracy and shape tolerance are controlled within a very small range. The connection between the interface and the motherboard slot is tight and stable, achieving reliable electrical connection and ensuring the stability and integrity of data transmission. Users do not need to worry about poor contact or signal transmission failures due to adaptation issues. Whether installing high-performance graphics cards, professional sound cards, or other expansion devices that comply with the PCI-E 16X interface standard, they can easily cope and fully utilize the performance advantages of the equipment.

2. Clever 90 degree steering design: The unique 90 degree steering function is the core highlight of this product. Through clever circuit layout and structural design, it can transform devices that were originally horizontally inserted into the PCI-E 16X slot on the motherboard into devices that are vertically installed towards the CPU direction, effectively solving problems such as limited internal space and wiring difficulties in the chassis. This steering design not only makes the hardware layout inside the chassis more reasonable and tidy, but also frees up more space for large air-cooled heat sinks, water-cooled exhausts and other heat dissipation devices, which helps optimize the air flow inside the chassis, improve the overall heat dissipation effect, and ensure the stability of hardware under long-term high load operation.

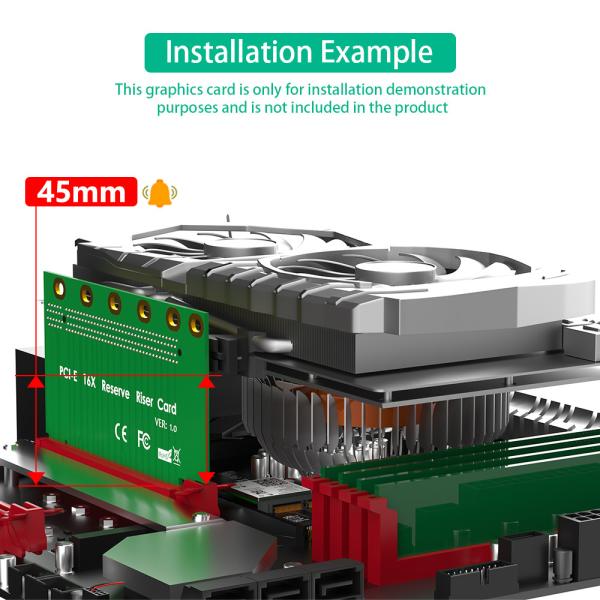

3. Stable height increasing structure: While achieving steering function, the product also has the characteristic of height increasing. The elevated part is made of high-strength engineering plastics or metal materials (depending on the product design), with a sturdy and stable structure that can provide reliable support for PCI-E 16X equipment installed on it, avoiding loosening, displacement, and other situations caused by equipment overload or chassis vibration. Moreover, the increased distance has been carefully designed to meet the space requirements of users for different device layouts inside the chassis, without affecting the overall aesthetics and stability of the chassis due to excessive height, further enhancing the practicality and applicability of the product in practical use.

4. Convenient installation method: The product design fully considers the user's installation convenience, and the overall installation process is simple and fast. Simply align the PCI-E 16X interface of the steering card with the corresponding slot on the motherboard, insert it smoothly and ensure complete fixation, and then insert the PCI-E 16X device to be installed into the other end interface of the steering card in the direction of the steering. The entire process does not require complex tools and tedious operating steps, making it easy for even beginners in computer hardware assembly to complete the installation, greatly saving users' time and energy and improving the efficiency of hardware expansion.

Product Slot Introduction:

Motherboard connection end: The PCI-E 16X slot on this end matches the standard PCI-E 16X slot on the motherboard. The internal gold fingers are made of high-quality metal material and have undergone fine gold plating treatment. They not only have excellent conductivity, but also have excellent oxidation resistance, ensuring long-term stable electrical connection. The fixed structure design around the slot is reasonable, and precise buckle or screw fixation methods (depending on the type of motherboard slot) are used to ensure that the steering card can be firmly fixed on the slot after inserting into the motherboard, without loosening, shaking, or other situations that affect signal transmission, laying a solid foundation for the stable operation of subsequent equipment.

Device connection end: The interface used to connect PCI-E 16X devices also follows the strict PCI-E 16X 3.0 standard, and its internal contact point layout has been optimized to achieve precise docking with various PCI-E 16X devices' golden fingers, ensuring efficient and stable data transmission. On the outside of the interface, corresponding fixing devices such as screw holes are also equipped, which facilitate users to further fix the equipment on the steering card with screws, prevent the equipment from accidentally falling off during use, and provide reliable guarantee for the safe operation of the equipment.

Transmission advantages:

Thanks to strict adherence to the PCI-E 16X 3.0 standard and high-quality interface design, this steering card ensures excellent performance in data transmission. It has a theoretical transmission rate of up to [X] GB/s (usually around 16GB/s) corresponding to the PCI-E 16X 3.0 standard, which can fully meet the data transmission needs of various high-performance PCI-E 16X devices. Whether it is a graphics card for high-speed graphics processing transmitting massive image data or a professional audio device processing high fidelity audio signals, it can achieve fast and stable data transmission, avoid transmission bottlenecks, ensure the full performance of the device, and bring users a smooth and efficient user experience. At the same time, the product effectively reduces the impact of external electromagnetic interference on data transmission through optimized circuit design and shielding measures, ensuring the integrity and accuracy of transmission signals, and further improving the quality and reliability of data transmission.

Usage:

Firstly, before installing this steering card, ensure that the computer is turned off and the power plug is unplugged to ensure safe operation and avoid hardware damage.

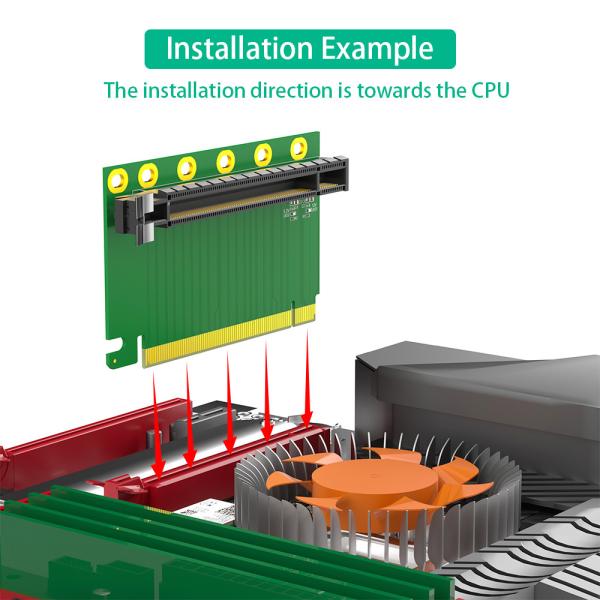

Find the PCI-E 16X slot on the motherboard and carefully align the PCI-E 16X interface on the motherboard connection end of the steering card with the motherboard slot, paying attention to the correct direction of the interface and avoiding forced insertion. Then, smoothly insert the steering card into the motherboard slot until it is fully inserted, and you can hear the buckle "click" to secure it in place (if it is a screw fixing type, use the corresponding screw to fix the steering card to the motherboard).

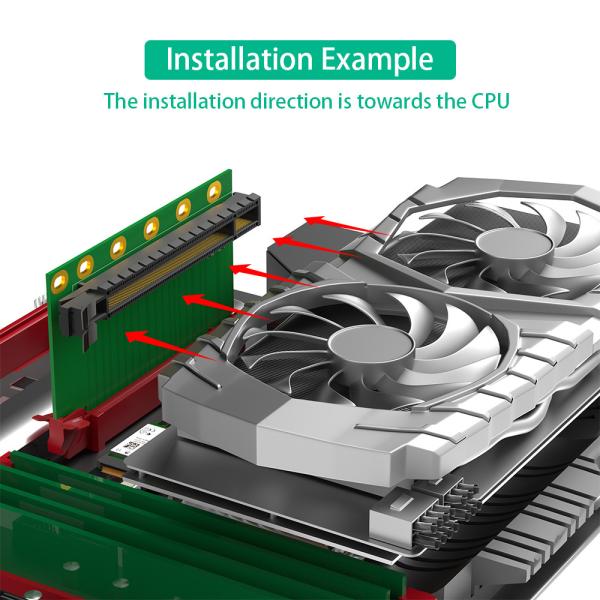

Next, align the gold fingers of the PCI-E 16X devices (such as graphics cards, sound cards, etc.) that need to be installed with the device connection interface of the steering card, ensuring the correct orientation. Then gently insert the device into the interface until it is fully inserted and stable. For some heavier devices, it is recommended to use screws to further secure the device to the steering card through the screw holes on the external interface of the device connection end, to prevent the device from loosening due to gravity or chassis vibration.

After completing the installation of the steering card and equipment, check again if all connection parts are secure. After confirming that there are no errors, reconnect the computer power and start the computer. At this point, the system will automatically recognize and load the corresponding driver program (some devices may require manual installation of drivers, please refer to the driver installation instructions provided with the device). After the driver installation is completed, the PCI-E 16X device installed on the steering card can be used normally.

Applicable scenarios:

Computer gamers: For players who pursue ultimate gaming performance, high-performance graphics cards are an essential hardware configuration. However, in some computer cases, a graphics card that is too long may cause space conflicts with other hardware or affect the internal heat dissipation of the computer case. This steering card can rotate the graphics card 90 degrees towards the CPU direction for installation, which not only effectively solves the problem of insufficient space, but also optimizes the air flow inside the chassis, helps the graphics card dissipate heat better, and ensures that the graphics card can stably exert its powerful graphics processing ability during long-term high load game operation, bringing smooth and realistic game graphics to players and enhancing the gaming experience.

Professional graphic design and video editing personnel: In professional fields such as graphic design, 3D modeling, and video editing, professional PCI-E 16X devices such as graphics cards and video capture cards are required to meet high-performance requirements in their work. These devices often have large volumes and high requirements for heat dissipation and internal space layout of the chassis. By using this steering card, professionals can flexibly adjust the installation direction of the equipment, making more reasonable use of the internal space of the chassis, while improving the heat dissipation conditions, ensuring stable operation of the equipment under long-term high-intensity working conditions, avoiding performance degradation or software crashes caused by overheating, improving work efficiency, and ensuring smooth project progress.

Computer hardware enthusiasts: For enthusiasts who are passionate about computer hardware modification and personalized customization, this product provides a unique hardware layout solution. They can use the 90 degree steering and height increasing function of the steering card to create a unique hardware arrangement inside the chassis, which not only meets the pursuit of hardware performance, but also showcases a personalized aesthetic style. Meanwhile, the convenient installation method also makes it easier for audiophiles to upgrade and adjust hardware, enabling them to easily achieve various creative hardware combinations and explore the infinite possibilities of computer hardware.

Small server setup: When setting up a small server, it may be necessary to install multiple PCI-E 16X interface expansion cards, such as network cards, RAID cards, etc., to meet functional requirements for network connectivity, data storage, and management. This steering card can help server builders arrange the placement of these expansion cards more reasonably within limited chassis space, optimize the wiring and heat dissipation inside the chassis, improve the overall stability and maintainability of the server, ensure that the server can run stably for a long time, and provide reliable service support for enterprise or home network environments.

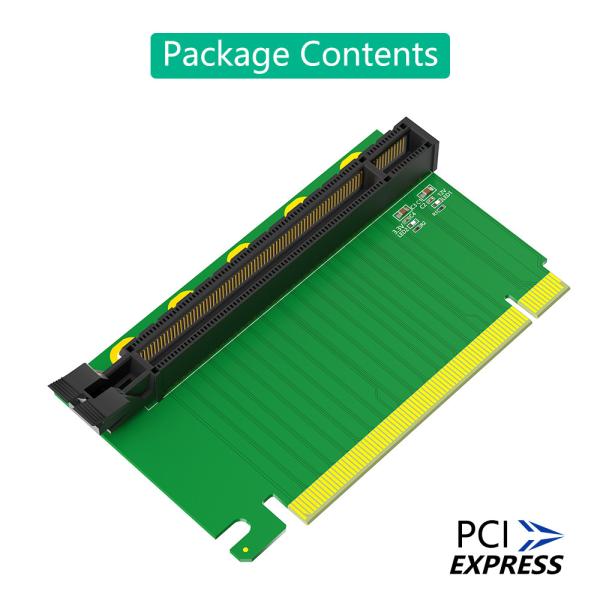

Package contents:

1X PCI-E 16X Male to Female Adapter
