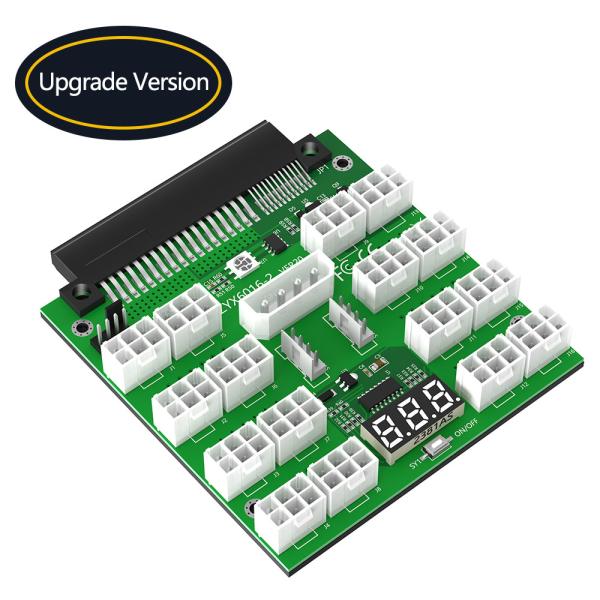

Upgrade Version ATX 16x 6Pin Power Supply Breakout Board 16 Ports 12V PCI-E 6Pin Server Power Supply Breakout Board Synchronization Connector For (Daier) 750W 1100W 1600W 2000W 2400W.

Product specifications:

Product Name: Power Supply Breakout Board Adapter for ETH/Bitcoin Mining.

This board is only suitable for (Daier) brand PSU and the following model listed:

Output Power: 12V.

PCB Color: Green.

Applicatioin: for mining graphics card power.

1.Maximum Support up to 12Amp / 2400Watts.

2.Electronic on/off switch. Retains its state.

3.Breakout boards is done by connecting the interconnect cable from PSU 1 to PSU2, PSU 2 to PSU 3, and so on.

4.16PCIe ports, for 6pin connectors.

5.On-board LED voltage meter display.

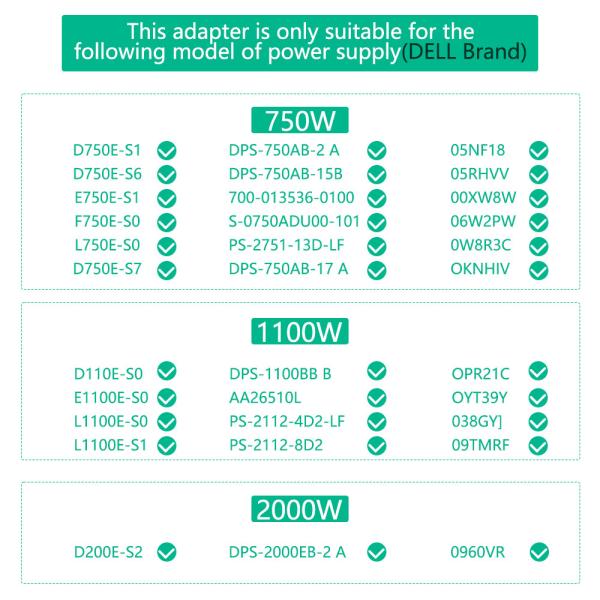

6.Confirmed Power Supply Compatibility List:

750 Watt Platinum Rated 94% Efficiency 110-240V:D750E-S1.DPS-750AB-2 A.05NF18.

D750E-S6,DPS-750AB-15B,05RHVV.

E750E-S1,700-013536-0100,00XW8W.

F750E-S0,S-0750ADU00-101,06W2PW.

L750E-S0,PS-2751-13D-LF,0W8R3C.

750w Watt Titanium Rated 96% Efficiency 200-240v:D750E-S7, DPS-750AB-17 A, OKNHJV.

1100 Watt Platinum Rated 94% Efficiency 110-240V:D110E-S0, DPS-1100BB B, OPR21C.

E1100E-S0,AA26510L,0YT39Y.

L1100E-S0,PS-2112-4D2-LF,038GYJ.

L1100E-S1,PS-2112-8D2,09TMRF.

1050w @ 100-120V input.

1100W @ 200-240V input.

2000 Watt Platinum Rated 94% Efficiency 110-240V:D200E-S2, DPS-2000EB-2 A, 0960VR.

1000W @ 100-120V input. 1750w @ 200-205V.

Product Overview:

This product is a versatile and practical ATX power adapter, designed to meet the power supply adaptation needs of different power (Daier) power supplies and various devices. It can interface with (Daier) 18+12 pin power supply and has power outputs of 750W, 1100W
1600W, 2000W, and 2400W power supplies are stably connected and efficiently converted internally to output multiple types of power ports, including 16 ATX6Pin power ports, one large ATX4Pin power port, two small ATX4Pin power synchronization ports, and one small ATX4Pin 12V fan port. In addition, it is equipped with cool 5050RGB LED beads to add visual effects, with an independent power switch for easy control of power supply, and a power voltage display screen for real-time monitoring of port voltage. It is widely used in computer hardware expansion, server construction, and various electronic device fields that require multiple power interfaces.

Product Features

1. Wide power adaptability:

Carefully designed to adapt to (Daier) specific 18+12 pin power interface, and covering a variety of commonly used power sources such as 750W, 1100W, 1600W, 2000W, 2400W, etc., demonstrating strong compatibility. Its internal interface pins are strictly built according to the electrical specifications of (Daier) power supplies, using high-quality conductive materials to ensure a tight fit and good conductivity when connected to the corresponding(Daier) power supply. It can stably and efficiently receive input power, effectively avoiding various situations such as unstable power supply and insufficient power caused by interface mismatch or compatibility issues, laying a solid foundation for reliable power conversion and output in the future.

2. Rich port output configuration:

It has a rich variety of power port outputs and can convert 16 ATX6Pin power ports, which can meet the simultaneous use of multiple devices that require 12V power supply. For example, it provides sufficient power support for multiple high-end graphics cards, large capacity hard drives and other computer hardware components, greatly expanding the flexibility and scalability of power supply, and facilitating users to build complex electronic device systems.

Simultaneously providing a power port with a large ATX4Pin pin, suitable for specific devices that require high current power supply, ensuring their stable operation; The power synchronization ports of the two small ATX4Pin pins can be used for devices that require synchronized power signals, ensuring that they can coordinate and be consistent during operation; There is also a small ATX4Pin 12V fan port, specifically designed to provide stable 12V power for cooling devices such as chassis fans, ensuring the cooling needs of the equipment and maintaining a good working environment.

3. Cool and practical additional features:

Equipped with cool 5050RGB LED beads, through carefully designed circuit control, it can present a variety of colorful lighting effects, such as gradient, flashing, breathing lights, etc., not only adding unique visual charm to the device, creating a high-tech and personalized atmosphere, but also helping users intuitively judge whether the device is in power on working state to a certain extent.

The setting of an independent power switch facilitates users to flexibly control the power supply of the entire adapter board. With simple operation of the switch, it is easy to achieve power on and off. Whether it is daily use, maintenance, or power management for energy-saving purposes, it becomes more convenient and efficient, avoiding the inconvenience and potential risks caused by frequent plugging and unplugging of power cords.

The power supply voltage display screen can display the real-time and accurate power supply voltage values of each port, allowing users to keep track of the power supply situation at any time. During the start-up and operation of the device, users can promptly detect any abnormal voltage fluctuations by observing the display screen, and detect potential power supply issues in advance, so as to take corresponding measures quickly, such as checking device connections, troubleshooting power failures, etc., effectively ensuring the safe and stable operation of the device.

Product Structure and Interface Introduction

Power input interface:

Daier 18+12 Pin Interface: Strictly manufactured according to the interface standards of (Daier) power supplies, the internal 30 pins (18+12) are arranged neatly and orderly, with precise spacing. The pin material is made of high-quality copper alloy and has undergone special anti-oxidation treatment, resulting in a smooth surface, excellent conductivity, and durability. The interface is equipped with a sturdy buckle device, which can automatically lock when connected to a Daier power supply, ensuring a tight fit between the power cord and the interface. During the plugging and unplugging process, there will be a clear "click" sound to indicate that the connection is in place, effectively preventing accidental loosening and building the first line of defense for stable input of the power supply.

Power output port:

16 ATX6Pin power ports: all designed according to the universal ATX6Pin standard, with a scientifically reasonable internal pin layout. Each pin is made of high-purity metal material, which has excellent conductivity and wear resistance. The shell of each port is made of metal material, which not only has good mechanical strength, but also has been grounded, effectively shielding external electromagnetic interference, ensuring the stability of power supply and the integrity of data transmission (if related functions are involved). When connecting external devices, the size tolerance of the port is controlled within a very small range, ensuring smooth insertion and tight connection, facilitating user operation, and ensuring efficient and stable power transmission to various devices.

The power port of the large ATX4Pin pin: designed according to the large ATX4Pin standard, the internal pins are made of high-quality metal materials that can carry high currents, ensuring stable and reliable power supply for devices with high current requirements. The port casing is also grounded, with good electromagnetic shielding performance to ensure that the power supply process is not affected by external interference. Its external structural design is easy to plug and unplug high current plugs, and the connection is firm to prevent problems such as poor contact caused by looseness.

Two small ATX4Pin power synchronization ports: Built according to the small ATX4Pin standard, the internal pin layout takes into account the accuracy and stability of power signal transmission. Through reasonable circuit design, devices connected to these two ports can achieve power synchronization function. The metal casing of the port is grounded to ensure electromagnetic compatibility, smooth insertion and removal, and convenient for users to connect devices that require synchronous power supply, ensuring their coordinated operation.

A 12V fan port with a small ATX4Pin pin: designed specifically for fan devices, the small ATX4Pin pin port has internal pins that accurately adapt to the power supply requirements of the fan, stably outputting 12V voltage to provide reliable power for chassis fans, radiator fans, and other devices. The port shell is grounded and has good anti-interference ability. When connecting the fan, it is easy to plug and unplug and the connection is stable, ensuring the stable operation of the fan and providing strong support for device heat dissipation.

5050RGB LED beads:

Choose high-quality 5050RGB LED beads, which have advantages such as high brightness, rich colors, and low power consumption. Through a specially designed control circuit connected to the power supply circuit of the power adapter board, various lighting effects can be displayed according to preset programs or user operations. The circuit design ensures that the light beads will not interfere with other power supply functions during operation, ensuring stable operation of the entire adapter board.

Independent power switch:

Using high-quality micro switches or toggle switches (depending on the product design), its operation feels comfortable, the action is sensitive, and it has clear on/off gear feedback. The switch is connected to the main circuit of the power adapter board through a carefully designed internal circuit, which can accurately control the power on and off of the entire adapter board, ensuring reliable performance during frequent operation and providing users with a convenient and safe power control experience.

Power supply voltage display screen:

Using high-precision and high-definition liquid crystal displays (LCD) or digital display screens (depending on the product design), with good viewing angle and brightness adjustment functions (if necessary), it is convenient for users to clearly view voltage values in different environments. It is connected to the power supply line of the power adapter board through a professional voltage detection circuit internally, which can collect and display the current power supply voltage information of each port in real time and accurately. It also has high stability and anti-interference ability, ensuring the accuracy and reliability of the displayed data.

Performance advantages:

Efficient adaptation and resource utilization: By accurately adapting to Daier specific power range of power sources, efficient utilization of these power resources is achieved, avoiding problems such as power waste or insufficient power supply caused by power mismatch. Effectively converting its power into various types of power port outputs enables Daier power supplies to better serve a variety of devices, whether in computer hardware integration environments or server construction scenarios, fully tapping into its power supply potential and improving overall energy utilization efficiency.

Meeting the needs of diverse power supply scenarios: With rich and diverse power port configurations, it has strong universality and scalability, and can meet the needs of different types and quantities of devices for different power interfaces. In computer hardware upgrades and renovations, it is convenient to provide suitable power supply interfaces for newly added hardware components; When building servers or complex electronic device systems, it is sufficient to meet the power supply requirements of various devices, without the need to worry about finding suitable power sources and sufficient power supply interfaces, greatly expanding the product's applicability and facilitating users to flexibly configure power supply solutions according to actual needs.

Stable power supply ensures the operation of equipment: With advanced circuit design and reliable port manufacturing processes, the voltage of each output port is ensured to be stable and reliable. During long-term use, compared to some ordinary power supply equipment, the risk of equipment failure caused by voltage fluctuations can be reduced by [30]% Whether it is the daily operation of various conventional electronic devices or in high load server working environments, it can effectively ensure the stable operation of equipment, reduce equipment damage, data loss and other situations caused by power supply problems, lower maintenance costs, and extend equipment service life.

Convenient operation and fault warning: The independent power switch allows users to easily control the power supply status, with simple and convenient operation. At the same time, the 5050RGB LED beads can serve as power on indicators and create a personalized atmosphere. The power supply voltage display screen presents the voltage situation in real time, making it easy for users to detect abnormalities in a timely manner. This design, which combines convenient operation and fault warning functions, enables users to manage power more autonomously and efficiently during use, prevent power related issues in advance, and enhance the overall user experience.

Usage method

1.Connect power input:

Firstly, confirm that the power supply of (Daier) corresponding power (750W, 1100W, 1600W, 2000W, 2400W) is in the off state. Connect one end of the power cord equipped with the power supply accurately to the corresponding interface of the power supply, and align the other end with the(Daier) 18+12 pin power input interface of the ATX power adapter board. Carefully check whether the pins correspond one by one, and then slowly and steadily insert until a clear "click" sound is heard, indicating that the power cord is firmly connected to the adapter board to avoid loosening, virtual connection, etc., ensuring that the power can be smoothly input into the adapter board.

2.Connect external devices:

Select the appropriate power output port for connection based on the type of equipment and power requirements that require power supply. For example, to power multiple graphics cards, the power plugs of the graphics cards can be plugged into the idle ATX6Pin power ports to ensure that the plugs are tightly attached to the ports; For devices that require high current power supply, use the power port with a large ATX4Pin pin for connection; If there are devices that require power synchronization, connect them to the power synchronization ports of the two small ATX4Pin pins; And cooling devices such as chassis fans are connected to the 12V fan port of the small ATX4Pin pin to ensure a secure connection and stable power support for all devices.

3.Use power switch and check voltage and lighting effects:

After completing the device connection, if you need to turn on the power supply, you can gently press or toggle the independent power switch to power on the power adapter board. At this time, the cool 5050RGB LED beads will light up and present the preset lighting effect (which can be personalized according to the product manual). At the same time, you can observe the current power supply voltage values of each port by observing the power supply voltage display screen to confirm whether the voltage is within the normal range (the normal voltage range of different ports depends on their respective standards and equipment requirements). During the operation of the equipment, it is also necessary to regularly check the voltage display screen, pay attention to whether there are any abnormal fluctuations in voltage, and adjust the lighting effect of the light beads according to personal preferences. If you need to turn off the power, operate the power switch again to make it in the off state.

4.Power supply inspection and abnormal handling:

During the operation of the equipment, pay attention to the working status of the equipment, observe whether there is smoke, odor, abnormal sound, etc., and at the same time, combine the value of the power supply voltage display screen to determine whether the power supply is normal. If any abnormality is found in the device or the voltage display is abnormal, the independent power switch should be immediately turned off, the power supply should be cut off, and then the connection between the device and the power adapter port of the power adapter board should be carefully checked for firmness. Check whether the device itself has any faults. If necessary, further check whether the Daier power supply and other components of the adapter board are working properly. After the problem is solved, turn on the power again for use.

Applicable scenarios:

Computer hardware upgrade and expansion: With the increasing demand for computer use, users often need to upgrade their computer hardware, such as adding higher performance graphics cards, more hard drives, additional cooling fans, etc. This ATX power adapter can be paired with Daier corresponding power supply, utilizing its rich power ports to provide sufficient and stable power supply for newly added hardware, meeting the power requirements after hardware upgrades, ensuring that various components of the computer can work together, improving the overall performance of the computer, and meeting the high performance requirements of application scenarios such as gaming, graphic design, video editing, etc.

Server setup and power management: During the server setup process, it is necessary to provide stable and diverse power interfaces for multiple server modules, such as CPUs, hard disk arrays, and cooling systems. This power adapter board, with its various types of power ports, can reasonably distribute the power of Daier power supplies, provide reliable power supply for various modules, ensure the stability and reliability of servers under high load operation, meet the strict requirements for stable operation of servers in data centers and other places, and facilitate unified power management and maintenance through independent power switches. With the help of power voltage display screens, the power supply situation is monitored in real time to ensure the safety of server power supply.

Complex electronic equipment system integration: In some complex electronic equipment system integration projects, multiple types of equipment with different power supply requirements are often involved, such as monitoring equipment, automation control equipment, communication equipment, etc. This product can be used as a centralized power supply solution, utilizing (Daier) power input to provide suitable power supply for these devices through different power ports, simplifying power supply lines, improving the stability and manageability of the power supply system, ensuring the stable operation of the entire electronic device integration system, facilitating unified device maintenance and management for users, and the cool 5050RGB LED beads can also add unique visual effects to the device system.

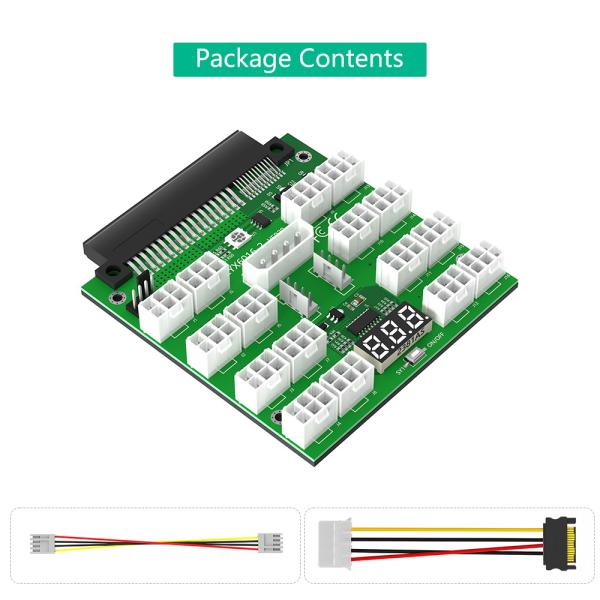

Package Contents:

1 x Board Adapter.

1x 4Pin Cable.

1x SATA to Molex 4Pin Cable.

1x Quick Installation Guide.
