2 In 1 Combine M.2 NGFF Key B & MSATA SSD To 2.5 SATA3 Adapter With Plastic Enclosure.

Product specifications:

1.Support full size mSATA SSD.

2.Support NGFF M.2 Key B SATA-bus SSD.

3.support 4 sizes NGFF M.2 Socket ssD: type 2230/ 22421 2260/ 22x80.

4. Transparent to the operating system and does not require any software drivers.

5.Support Hi-Speed SATA3/ 6Gbps mass storage interface.

Product Overview:

This SSD to SATA3.0 adapter with a shell that supports dual SATA protocols is like a sophisticated storage wizard, creating diverse storage possibilities in limited space and accurately meeting the pursuit of cost and performance balance by computer manufacturers and customers. It innovatively adopts a cross design, with a compact layout but powerful functionality, carrying two different types of slots that both support SATA protocol. The SSD1 slot of NGFF (M.2) KEY-B embraces four sizes of SSDs, 2230/2242/2260/2280mm, with wide compatibility, providing users who pursue ultimate performance and diverse capacity with rich choices; The SSD2 slot focuses on mSATA full-size SSDs, opening the door for upgrading old devices or specific scenario applications. The unique SSD selection toggle switch is like a magic wand, allowing users to switch freely between NGFF and mSATA storage worlds, making it easy to control. The external plastic shell not only perfectly fits the SATA2.5-inch hard drive in size and seamlessly embeds into the reserved positioning hole of the chassis, making installation convenient and efficient, but also becomes a powerful assistant for computer manufacturers to enhance competitiveness in the market trend at an affordable price.

Product Features

1. Innovative Cross Cross Dual Slot Layout:

Unlike traditional parallel slot designs, the cross cross layout of this adapter board takes space utilization to new heights. The two slots are tightly interwoven but do not interfere with each other, fully utilizing every inch of board space. This not only meets the user's demand for simultaneous installation of different types of SSDs, but also makes the overall size of the adapter board more compact, suitable for more chassis environments. Especially for compact mini chassis, all-in-one machines and other devices, it is undoubtedly an excellent storage expansion solution.

In terms of electrical performance, this layout has been carefully optimized to ensure the shortest signal transmission lines and minimal interference, providing a solid guarantee for the stable operation of SSDs. Whether it is the high-speed read/write NGFF SSD or the highly compatible mSATA SSD, they can quickly establish a stable connection after insertion, and data transmission is smooth like silk, effectively avoiding problems such as signal attenuation and transmission errors caused by unreasonable layout.

2. Widely compatible dual SSD slots:

The SSD1 slot accurately adapts to four sizes of NGFF (M.2) KEY-B SSDs, 2230/2242/2260/2280mm, thanks to its deep interpretation and exquisite craftsmanship of the SATA protocol. Each pin inside is finely polished and made of highly conductive metal material to ensure a tight and stable connection with the SSD gold finger. From mini SSDs commonly used in lightweight laptops to high-capacity SSDs favored by high-performance desktop computers, you can find a place to settle down here, fully unleashing the performance potential of SSDs of different sizes and meeting diverse storage needs.

The SSD2 slot focuses on mSATA full-size SSDs, providing a direct solution for the modernization upgrade of old devices. Through special adaptive design, mSATA SSD ensures a tight fit and stable and reliable signal transmission after insertion. Whether it's early laptops or some industrial control computers, simply adding this adapter board can easily embrace the high-speed storage experience of the SSD era and extend device lifespan.

3. Convenient SSD switching function:

When users face storage needs in different scenarios, the SSD selection toggle switch on the adapter board becomes the key to controlling the overall situation. With a gentle tap, you can freely switch between NGFF and mSATA SSDs, easily selecting the storage device you need to use at the moment. When testing the performance of different SSDs, flexibly allocating storage resources according to different application scenarios (such as gaming, office, design, etc.), or alternating between old devices and new SSDs to meet compatibility requirements, there is no need for tedious hardware disassembly and reinstallation, making the operation convenient and efficient, saving users a lot of time and energy.

4. Accurately adapted plastic casing:

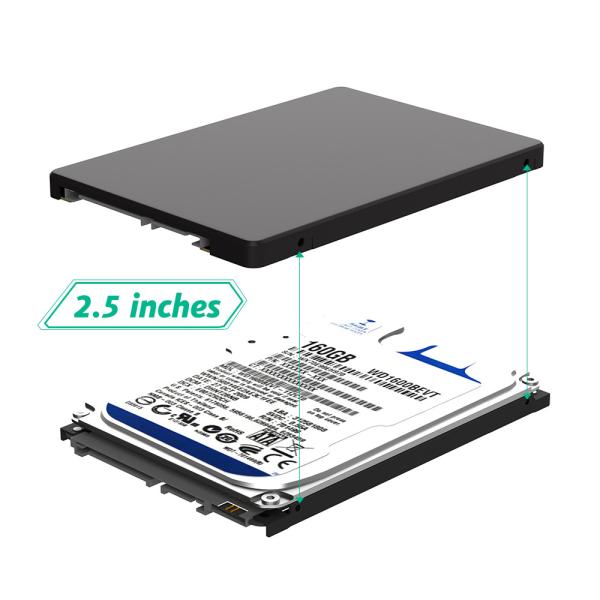

The design of the external plastic shell is truly exquisite. Its size is exactly the same as the SATA 2.5-inch hard drive, which means that when installed in the chassis, it can be precisely embedded into the reserved 2.5-inch hard drive positioning hole as customized. Using high-quality plastic materials, it has good insulation performance and mechanical strength, effectively resisting static interference and external collision damage to the adapter board. At the same time, the surface of the shell has been finely processed, creating a beautiful and elegant appearance. This not only enhances the overall texture of the product, but also adds a neat and orderly aesthetic to the interior of the chassis.

5. Ultra high cost-effectiveness advantage:

In the fiercely competitive computer accessory market, this product stands out with its affordable price. For computer manufacturers, this is a powerful weapon to control costs and increase profit margins. On the premise of ensuring product quality and performance, the affordable price allows customers to achieve diversified expansion of computer storage systems at a lower cost, meeting the personalized needs of different users for storage capacity and read/write speed, enhancing the attractiveness and competitiveness of the product in the market, and easily occupying a dominant position in the market.

Product Structure and Interface Introduction

NGFF (M.2) KEY-B SSD1 slot:

Using high-precision molds for stamping and forming, the slot size accuracy is extremely high, and the fit with the SSD gold finger is almost perfect. The metal pins inside the slot are finely polished and surface gold-plated to further enhance conductivity and have good oxidation resistance, effectively preventing poor contact problems after long-term use. The edge design has a soft guiding angle to assist in the smooth insertion of the SSD. At the same time, the internal elastic buckle structure is cleverly designed. Once the SSD is inserted into place, it automatically locks to prevent loosening, providing a solid guarantee for the stable operation of the SSD.

MSATA SSD2 slot:

The internal structure is specifically optimized for mSATA full-size SSDs, ensuring a tight fit and stable signal transmission after insertion through precise size design and special fixing devices. The pins are made of high-quality metal materials to ensure stable and reliable signal transmission. The slot shell is made of high-strength engineering plastic, which has good insulation performance and mechanical strength, effectively resisting damage to the slot caused by static interference and external collision. The plug-in design is tightly fitted and can automatically lock after insertion to prevent loosening, ensuring the safe use of SSDs.

SSD selection toggle switch:

High quality mechanical switches are selected, with smooth hand feel, reliable action, excellent electrical lifespan, and can withstand frequent opening and closing operations. Its shell design conforms to ergonomics and is easy for users to operate. Whether it is the feedback of finger movement force or the layout of switch position, it fully considers the convenience of use. The internal circuit is closely connected to the storage switching control system of the adapter board, which can quickly and accurately achieve the switching function between the two SSDs.

Plastic casing:

The plastic shell is formed through precision injection molding technology, with dimensional tolerances controlled within a very small range, ensuring complete consistency with SATA2.5-inch hard drives. The internal structure design of the shell is reasonable, providing good protection space for the adapter plate and internal components. At the same time, through special buckles and fixing devices, it is tightly combined with the adapter plate to prevent loosening. The surface has been sandblasted, which not only looks beautiful, but also increases the feel and enhances the user experience of the product.

Performance advantages:

Ultimate space utilization and diversified storage expansion: The cross shaped dual slot layout combined with extensive compatibility provides computer manufacturers with unprecedented storage expansion flexibility. Whether it's producing mini hosts, laptops, or traditional desktop computers, two different types of SSDs can be cleverly arranged within limited chassis space to meet users' complex needs for storage capacity, read/write speed, device compatibility, and other aspects, easily creating personalized high-performance storage systems and enhancing product differentiation competitiveness.

Efficient and convenient operation and resource optimization: The SSD selects a toggle switch for convenient operation, making it intelligent and convenient for users to control the adapter and SSD. Users can not only flexibly switch between SSDs according to their actual needs, but also understand the device status in real-time through indicator lights, as if equipping the device with a thoughtful manager. This intelligent control method effectively reduces the uncertainty caused by storage device issues, enhances the sense of security and control during use, allows users to fully devote themselves to work or entertainment, and optimizes the efficiency of storage resource utilization.

Accurate installation adaptation and production efficiency improvement: The precise matching of plastic casing and SATA2.5-inch hard drive size brings great convenience to chassis installation. Computer manufacturers do not need to adjust the chassis structure or design special installation methods during the production process. They only need to follow the installation process of a conventional 2.5-inch hard drive to easily install the adapter board, greatly improving production efficiency, reducing production costs, and ensuring that the product can be quickly introduced to the market to meet market demand.

Cost control and strengthening market competitiveness: The affordable price advantage allows computer manufacturers to take the initiative in fierce market competition. On the premise of ensuring product performance, the cost of raw material procurement has been reduced, allowing customers to provide more storage functions of computer products to end users at lower prices, enhancing market competitiveness, increasing product sales and profit margins, and achieving sustainable development.

Usage method

1. SSD installation:

For the SSD1 slot, pick up the SSD that meets the size requirements of 2230/2242/2260/2280, align its golden finger with the NGFF (M.2) KEY-B SSD1 slot of the adapter board, pay attention to the correct insertion direction, and slowly insert with moderate force until the SSD is fully inserted into the slot. At this point, the elastic buckle inside the slot will automatically fasten the SSD, and the screw can be used to secure the SSD to the stud of the adapter card, ensuring that it is firmly fixed. Make it tightly adhere to the SSD.

For the SSD2 slot, pick up the mSATA full-size SSD, align its golden finger with the SSD2 slot, slowly insert it, and then fix the screw to secure the SSD to the stud of the adapter card, ensuring that it is firmly fixed. Make it tightly adhere to the SSD.

2. Pre startup inspection:

After installing the SSD, carefully check whether the adapter board is tightly connected to the SSD, whether the buckle is securely fixed to the SSD, and whether there is any looseness, misalignment, or other issues. Meanwhile, observe whether other components inside the chassis are obstructed by foreign objects. If everything is normal, check the indicator lights on the adapter board, confirm that the device status is normal, and prepare to start the computer.

3. Usage and monitoring:

After starting the computer, pay attention to whether the system starts normally and whether there are any error messages. During the operation of the computer, the working status of the SSD, such as temperature and read/write speed, can be monitored through the system's built-in hardware monitoring tools or third-party software. If the SSD is found to be unstable, overheated, or frequently reporting errors, it should be stopped immediately to check whether the connection between the SSD and the adapter board is loose, whether the gold fingers are oxidized, whether there are electromagnetic interference sources inside the chassis, and to identify and solve potential faults to ensure stable operation of the computer. If you need to switch between SSDs, simply gently toggle the SSD selection switch on the adapter board to easily achieve the switching operation.

Applicable scenarios:

In the field of computer manufacturing, computer manufacturers often need to flexibly configure storage systems according to the needs of different users in the production process of laptops, desktops, and other computer machines. This adapter allows them to easily and quickly install two different types of SSDs within limited chassis space, and achieve flexible switching through toggle switches, meeting users' diverse requirements for storage capacity and read/write speed, and enhancing the product's market competitiveness. For example, in the production of high-performance gaming laptops, high-capacity NGFF SSDs can be used to install games, while mSATA SSDs are used to store system files, allowing for flexible switching based on game startup and daily office needs, enhancing the overall performance experience.

Old equipment upgrade and renovation market: For DIY enthusiasts or ordinary users who want to improve computer storage performance, this adapter board provides a simple and effective solution. They can easily upgrade their existing single SSD system to a dual SSD system, switching between different SSDs according to different usage scenarios (such as gaming, office, design, etc.), improving the overall performance of the computer, extending its lifespan, and without spending too much cost. For example, replacing the mechanical hard drive of an old laptop with this adapter board and mSATA SSD, while using NGFF SSD to expand storage capacity, can rejuvenate old devices.

	Definition of Data Interface (7-pin)
	Stitch	Stitch	Definition
	1	GND Ground	Grounding, usually connected to the negative pole.
	2	A Transmit	Positive signal interface for data transmission.
	3	A Transmit	Data transmission negative signal interface.
	4	GND Ground	Grounding, usually connected to the negative pole.
	5	B-Receive	Data receiving negative signal interface.
	6	B-Receive	Data receiving positive signal interface
	7	GND Ground	Grounding, usually connected to the negative pole.

Definition of Power Interface (15 Pin)
Stitch	Signal	Line color	Definition
1	+3.3VDC	Orange	DC 3.3V positive power supply pin
2	+3.3VDC	Orange	DC 3.3V positive power supply pin.
3	+3.3VDC	Orange	DC 3.3V positive power pin, pre charged, paired with the second circuit.
4	GND	Black	Grounding, usually connected to the negative pole, paired with the first circuit.
5	GND	Black	Grounding, usually connected to the negative pole, paired with the second circuit.
6	GND	Black	Grounding, usually connected to the negative pole, paired with the third circuit.
7	+5VDC	Red	DC 5V positive power pin, pre charged, paired with the second circuit.
8	+5VDC	Red	DC 5V positive power supply pin.
9	+5VDC	Red	DC 5V positive power supply pin.
10	GND	Black	Grounding, usually connected to the negative pole, paired with the second circuit.
11	Optional	Black	Reserved pins.
12	GND	Black	Grounding, usually connected to the negative pole, paired with the first circuit.
13	+12VDC	Yellow	DC 12V positive power pin, pre charged, paired with the second circuit.
14	+12VDC	Yellow	DC 12V positive power supply pin.
15	+12VDC	Yellow	DC 12V positive power supply pin.

Package Includes:

1 x PCBA Adapter.

1 x Screw Driver.

4X M2 sliver Screw.

4X M2 Black screw.

1x standoff.
