Full-size NGFF M.2 B Key/mSATA SSD to 2.5 SATA3 Adapter 2 in 1 with Plastic Enclosure.

Product specifications:

1.Support full size mSATA SSD.

2. Support NGFF M.2 Key B SATA-bus SSD.

3.Support 4 sizes NGFF M.2 Socket ssD: type 2230/ 2242/ 2260/ 22x80.

4. Transparent to the operating system and does not require any software drivers.

5.Support Hi-Speed SATA3/ 6Gbps mass storage interface.

Product Overview:

This "2-in-1 SSD adapter card" that supports dual SATA protocols - hard drive to SATA 3.0 with a shell SSD adapter - is a practical tool in the field of computer storage, accurately meeting the urgent needs of computer manufacturers and customers for efficient and low-cost storage solutions. It adopts a simple and exquisite parallel dual slot design, with two key slots supporting SATA protocol arranged in an orderly manner on a limited board surface. Among them, the SSD1 slot of NGFF (M.2) KEY-B is like a versatile storage master, fully accepting four common sizes of SSDs under SATA protocol, 2230/2242/2260/2280mm. Whether it is a lightweight and compact mini version or a high-capacity and high-performance flagship version, it can seamlessly integrate and unleash its potential; The SSD2 slot, which is adjacent to it, focuses on mSATA full-size SSDs, opening up a green channel for upgrading old devices or specific scenario applications. The SSD placed on the adapter board has a toggle switch, just like a master key. With a gentle turn, users can freely shuttle between the two storage camps of NGFF and mSATA and choose according to their preferences. The external matching plastic shell not only fits perfectly with the SATA2.5-inch hard drive size and is precisely embedded in the reserved positioning hole of the chassis for convenient installation, but also helps computer manufacturers easily control costs with an affordable price tag, stand out in the market, and bring valuable storage experience to end users.

Product Features

Efficient and practical parallel dual slot layout:

Abandoning complex structures and adopting parallel design with dual slots, this SATA3.0 hard drive adapter achieves ultimate simplicity and efficiency in space utilization. Two slots stand side by side without interfering with each other, making it easy for users to distinguish and operate intuitively, while ensuring the overall stability of the adapter board. In terms of electrical performance, parallel layout optimizes the signal transmission path, reduces interference caused by line crossings, and enables data to shuttle between SSD and motherboard at high speed and stability. Whether it is high-intensity data reading and writing or long-term stable operation, it can provide a solid operating foundation for different types of SSDs, ensuring the smoothness of storage work.

Widely compatible dual SSD slots:

The SSD1 slot, with its exquisite craftsmanship and deep adaptation to SATA protocol, is precisely compatible with NGFF (M.2) KEY-B SSDs in four sizes: 22 * 30/22 * 42/22 * 60/22 * 80mm. Each metal pin inside the slot is finely polished and made of high-quality conductive material to ensure a tight and reliable connection with the SSD gold fingers. This means that whether upgrading storage for ultra-thin laptops pursuing ultimate portability or expanding massive capacity for high-performance desktops, it can easily meet the diverse storage capacity and performance needs of users.

The SSD2 slot focuses on mSATA full-size SSDs, providing a convenient channel for the modernization transformation of old devices. By using a special adaptation structure, mSATA SSD ensures a tight fit and stable data transmission after insertion. For early laptops, industrial computers, and other devices that used mSATA interfaces, simply installing this adapter board can quickly integrate into the high-speed storage trend of the SSD era, rejuvenate, and greatly expand the device's service life and application scenarios.

Convenient SSD switching control:

When facing scenarios with different storage requirements, the SSD selection toggle switch on the adapter board becomes the "magic wand" in the user's hand. With a gentle tap, you can quickly switch between NGFF and mSATA SSD modes, freely choosing the most suitable storage device for the moment. Whether testing the performance of different SSDs, flexibly allocating storage resources based on different application areas (such as gaming, office, design, etc.), or switching between old devices and new SSDs as needed to meet compatibility requirements, there is no need for cumbersome hardware disassembly and reinstallation steps. The operation is convenient and efficient, saving users valuable time and energy and making storage management easy and effortless.

Precision adapted plastic casing:

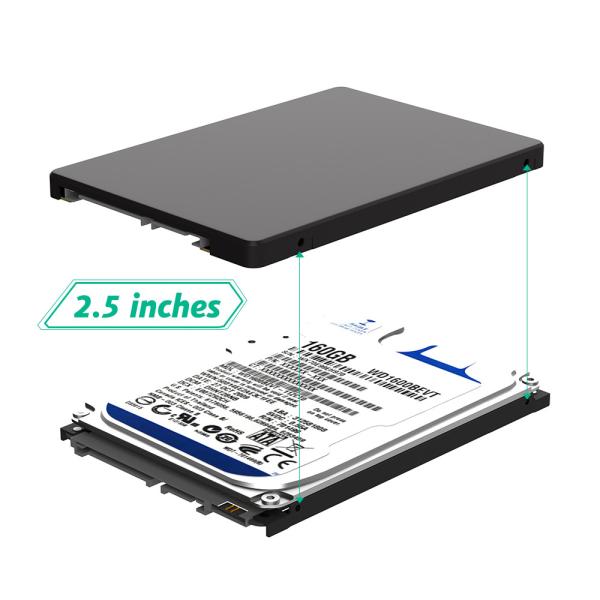

The design of the external plastic shell is truly exquisite. Its size is no different from that of a 2.5-inch SATA hard drive, which allows it to be accurately embedded into the reserved 2.5-inch hard drive positioning hole like a customized component during the installation process of the chassis. Using high-quality plastic material, it has good insulation performance and mechanical strength, effectively resisting static interference and external collision damage to the adapter board. At the same time, the surface of the shell has undergone delicate treatment, which is beautiful and generous. It not only enhances the overall texture of the product, but also creates a clean and orderly visual effect for the inside of the chassis, demonstrating professional quality.

Value for money advantage:

In the fiercely competitive computer accessory market, this product dominates with its affordable price. For computer manufacturers, this is undoubtedly a powerful 'weapon' to control costs and increase profit margins. On the premise of ensuring excellent product quality and performance, affordable prices enable customers to achieve diversified expansion of computer storage systems at a lower cost, meet the personalized needs of different users for storage capacity and read/write speed, and thus be highly attractive and competitive in the market, helping products quickly open up sales channels and win market share.

Product Structure and Interface Introduction

NGFF (M.2) KEY-B SSD1 slot:

Stamped and formed by high-precision molds, ensuring extremely high dimensional accuracy of the slot and almost perfect fit with SSD gold fingers. The metal pins inside the slot are finely polished and the surface is gold-plated to further enhance conductivity and have good oxidation resistance, effectively preventing poor contact problems after long-term use. The edge design has a soft guiding angle to assist in the smooth insertion of the SSD. At the same time, it has a built-in elastic buckle structure that automatically locks the SSD once it is inserted into place, preventing loosening and providing a solid guarantee for the stable operation of the SSD.

MSATA SSD2 slot:

The internal structure is specifically optimized for mSATA full-size SSDs, ensuring a tight fit and stable signal transmission after insertion through precise size design and special fixing devices. The pins are made of high-quality metal materials to ensure stable and reliable signal transmission. The slot shell is made of high-strength engineering plastic, which has good insulation performance and mechanical strength, effectively resisting damage to the slot caused by static interference and external collision. The plug-in design is tightly fitted and can automatically lock after insertion to prevent loosening, ensuring the safe use of SSDs.

SSD selection toggle switch:

High quality mechanical switches are selected, with smooth hand feel, reliable action, excellent electrical lifespan, and can withstand frequent opening and closing operations. Its shell design conforms to ergonomics and is easy for users to operate. Whether it is the feedback of finger movement force or the layout of switch position, it fully considers the convenience of use. The internal circuit is closely connected to the storage switching control system of the adapter board, which can quickly and accurately achieve the switching function between the two SSDs.

Plastic casing:

The plastic shell is formed through precision injection molding technology, with dimensional tolerances controlled within a very small range, ensuring complete consistency with SATA2.5-inch hard drives. The internal structure design of the shell is reasonable, providing good protection space for the adapter plate and internal components. At the same time, through special buckles and fixing devices, it is tightly combined with the adapter plate to prevent loosening. The surface has been sandblasted, which not only looks beautiful, but also increases the feel and enhances the user experience of the product.

Performance advantages:

1.Excellent space optimization and storage expansion: The parallel dual slot layout combined with extensive compatibility endows computer manufacturers with powerful storage expansion capabilities. Whether it's creating a compact and portable mini computer or assembling a high-performance desktop computer, two different types of SSDs can be cleverly placed in a limited chassis space, easily meeting users' complex needs for storage capacity, read/write speed, device compatibility, and other aspects, helping to create personalized and high-performance storage systems, significantly enhancing product differentiation competitiveness.

2.Efficient and convenient control experience and resource allocation: The SSD selects a toggle switch for convenient operation, making the user's control of the adapter and SSD intelligent and efficient. Users can not only flexibly switch between SSDs according to their actual needs, but also understand the device status in real-time through indicator lights, as if equipping the device with a thoughtful manager. This intelligent control method effectively reduces the uncertainty caused by storage device issues, enhances the sense of security and control during use, allows users to fully devote themselves to work or entertainment, and achieves optimal allocation of storage resources.

3.Precise installation adaptation and soaring production efficiency: The precise matching of plastic casing and SATA2.5-inch hard drive size brings great convenience to chassis installation. Computer manufacturers do not need to adjust the chassis structure or design special installation methods during the production process. They only need to follow the installation process of conventional 2.5-inch hard drives to easily install adapter boards, greatly improving production efficiency, reducing production costs, and ensuring that products can be quickly introduced to the market and meet market demand in a timely manner.

4.Strict cost control and a leap in market competitiveness: The affordable price advantage allows computer manufacturers to seize the opportunity in fierce market competition. On the premise of ensuring product performance, the cost of raw material procurement has been reduced, enabling customers to provide end users with computer products with more storage functions at lower prices, enhancing market competitiveness, increasing product sales and profit margins, and achieving sustainable business success.

	Definition of Data Interface (7-pin)
	Stitch	Stitch	Definition
	1	GND Ground	Grounding, usually connected to the negative pole.
	2	A Transmit	Positive signal interface for data transmission.
	3	A Transmit	Data transmission negative signal interface.
	4	GND Ground	Grounding, usually connected to the negative pole.
	5	B-Receive	Data receiving negative signal interface.
	6	B-Receive	Data receiving positive signal interface
	7	GND Ground	Grounding, usually connected to the negative pole.

Definition of Power Interface (15 Pin)
Stitch	Signal	Line color	Definition
1	+3.3VDC	Orange	DC 3.3V positive power supply pin
2	+3.3VDC	Orange	DC 3.3V positive power supply pin.
3	+3.3VDC	Orange	DC 3.3V positive power pin, pre charged, paired with the second circuit.
4	GND	Black	Grounding, usually connected to the negative pole, paired with the first circuit.
5	GND	Black	Grounding, usually connected to the negative pole, paired with the second circuit.
6	GND	Black	Grounding, usually connected to the negative pole, paired with the third circuit.
7	+5VDC	Red	DC 5V positive power pin, pre charged, paired with the second circuit.
8	+5VDC	Red	DC 5V positive power supply pin.
9	+5VDC	Red	DC 5V positive power supply pin.
10	GND	Black	Grounding, usually connected to the negative pole, paired with the second circuit.
11	Optional	Black	Reserved pins.
12	GND	Black	Grounding, usually connected to the negative pole, paired with the first circuit.
13	+12VDC	Yellow	DC 12V positive power pin, pre charged, paired with the second circuit.
14	+12VDC	Yellow	DC 12V positive power supply pin.
15	+12VDC	Yellow	DC 12V positive power supply pin.

Applicable scenarios:

Computer manufacturing production line: In the production process of laptops, desktops, and other computer machines, computer manufacturers often need to flexibly configure storage systems according to the needs of different users. This adapter allows them to easily and quickly install two different types of SSDs within limited chassis space, and achieve flexible switching through toggle switches, meeting users' diverse requirements for storage capacity and read/write speed, and enhancing the product's market competitiveness. For example, in the production of lightweight office laptops, the compact NGFF SSD can be used to install the operating system, while the mSATA SSD is used to store daily office files. It can be flexibly switched according to different usage scenarios to enhance the overall performance experience.

Old equipment upgrade and renovation workshop: For DIY enthusiasts or ordinary users who want to improve computer storage performance, this adapter board provides a simple and effective solution. They can easily upgrade their existing single SSD system to a dual SSD system, switching between different SSDs according to different usage scenarios (such as gaming, office, design, etc.), improving the overall performance of the computer, extending its lifespan, and without spending too much cost. For example, replacing the mechanical hard drive of an old laptop with this adapter board and mSATA SSD, while using NGFF SSD to expand storage capacity, can rejuvenate old devices.

Package Includes:

1 x PCBA Adapter.

1 x Screw Driver.

4X M2 sliver Screw.

4X M2 Black Screw.

1x standoff.
