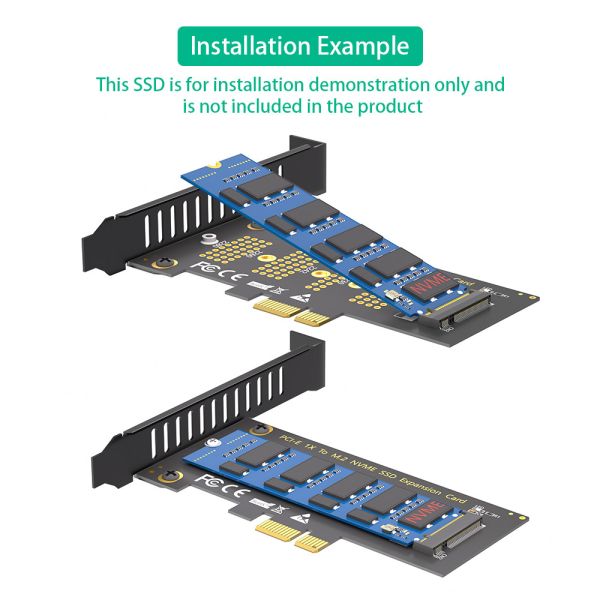

M.2 NVMe SSD NGFF TO PCIE X1 adapter card M Key interface card Support PCI Express 3.0 x1 Support NVMe SSD 2230-2242-2260-2280 Size.

Product specifications:

Name: PCIE 3.0 X4 NVMe Expansion Riser.

Support: NVMe m.2 SSD (various PCIE protocols).

Not support: m.2 NGFF disk (for SATA protocol).

Support Slot: Support PCIE X1 X4 X8 X16.

Product advantages:

1, High-speed signal enhancement technology;

2, PCIE3.0 GEN3 full speed design;

3, not stuck, the motherboard self-test does not delay;

4, with large capacity tantalum capacitor constant voltage filtering.

Package Content:

M.2 NVMe SSD NGFF TO PCIE X1 adapter card.

2X M.2 screw.

1x metal profile bracket1.

1x screwdriver.

1x metal profile bracket screw.

NVME Protocol SSD Adapter Product Introduction:

With the rapid development of data storage technology, the volume of data is growing explosively, and the demand for high-speed and stable data storage and transmission solutions is becoming increasingly urgent. Both enterprise level data centers and individual users pursuing ultimate performance are constantly seeking more efficient and reliable storage solutions. The NVME protocol SSD adapter that we have developed and repeatedly tested is carefully crafted to meet this urgent need, committed to breaking through performance bottlenecks and providing users with excellent user experience in data processing.

Product Core Architecture and Design Philosophy:

This adapter is designed specifically to meet the SSD access requirements of the NVME protocol, with the core being its NGFF (M.2) Key-M slot that supports the NVME protocol. This slot adopts advanced circuit design and precise manufacturing technology, specially designed for KEY-M SSDs compatible with NVME protocol. In the design process, full consideration was given to the stability and efficiency of signal transmission. By optimizing the circuit layout and selecting high-quality electronic components, the integrity and accuracy of the signal during transmission were ensured. This design concept aims to solve the adaptation difficulties caused by different interface specifications and size differences, and provide users with a convenient storage upgrade path. Whether it's upgrading the storage of old devices or expanding the high-performance storage of new devices, both can be easily achieved.

Key features of the product:

1. Wide SSD size compatibility: Supports NVME protocol KEY-M SSDs in four size formats: 2230mm, 2242mm, 2260mm, and 2280mm. The current market has a wide range of SSD size specifications, and different device types and usage scenarios have different requirements for SSD size. For example, in devices with limited space such as small laptops and mini consoles, SSDs of 2230mm or 2242mm are more suitable; In devices such as workstations and servers that require high storage capacity, SSDs with a size of 2260mm or 2280mm can perform better. Our adapter, with this feature, can adapt to various mainstream SSDs, whether it is small devices with strict space requirements or workstations pursuing large capacity storage, they can find suitable matching solutions, greatly expanding the product's applicability.

2. High performance output interface: The output port of the adapter adopts PCI-E 3.0 1X Gold Finger. The PCI-E 3.0 1X interface has high-speed data transmission capability, with a theoretical bandwidth of up to 8Gbps. The golden finger part is made of high-quality metal materials, processed by special techniques, and has good conductivity and oxidation resistance, ensuring stable signal transmission and strong anti-interference ability. This interface supports full speed transmission, fully leveraging the high-speed performance advantages of NVME protocol SSDs to achieve fast data reading and writing. In high-definition video editing scenarios, it can quickly load and process massive amounts of video materials; During the loading process of large-scale games, the loading time can be significantly reduced, allowing players to quickly enter the game world.

3. Multi slot compatibility: It has excellent compatibility and can adapt to slots with PCI-e 1X, 4X, 8X, and 16X on the motherboard. There are differences in the specifications of PCI-e slots on different motherboards, and traditional adapter cards can often only adapt to slots of specific specifications, which greatly limits the upgrading and expansion of devices. And our adapter breaks this limitation by using unique circuit design and intelligent recognition technology to automatically adapt to slots of different specifications. Users do not need to worry about the mismatch between motherboard slots and adapter cards, and can flexibly choose slots according to their own motherboard configuration, providing great convenience for device upgrades. Whether it is a regular home motherboard or a professional server motherboard, it can be easily adapted.

4. Status indicator function: The adapter is equipped with LED indicator lights. Through the indicator light, users can real-time understand the working status of the adapter, such as data transmission status, device connection status, etc. During data transmission, the indicator light will flash according to the data transmission rate and traffic, allowing users to intuitively understand the progress of data transmission. When the device is connected normally, the indicator light will remain on continuously; If there is a connection failure or device abnormality, the indicator light will prompt in a specific flashing pattern. In scenarios such as device debugging and troubleshooting, indicator lights can provide users with intuitive information feedback, helping them quickly locate problems and improve work efficiency. For example, during server maintenance, technicians can quickly determine the working status of adapter cards and SSDs through indicator lights, and promptly identify and solve problems.

Key interfaces:

1. NVMe Protocol: The Non Volatile Memory Host Controller Interface Specification (NVMe) is a high-performance storage protocol based on flash storage. Compared to the traditional AHCI protocol, the NVME protocol has lower latency and can complete data read and write operations in a short period of time. At the same time, it also has higher IOPS (input/output operations per second), which can handle a large number of concurrent data requests, significantly improving the read and write performance of SSDs. In enterprise level data processing, the NVME protocol can quickly respond to a large number of business data requests and improve business processing efficiency; In the daily use of individual users, it can also significantly improve the computer's startup speed, software startup speed, and so on.

2. NGFF (M.2) Key-M slot: The M.2 interface is a new host interface solution that has a smaller size and higher transmission speed compared to traditional SATA interfaces. The NGFF (M.2) Key-M slot is designed specifically for SSDs with NVME protocol, ensuring data transfer rate while maintaining a compact size, meeting the needs of modern devices for lightweight and high-performance. Its compact design makes the internal space layout of the device more reasonable, which is conducive to the miniaturization and integration development of the device, and also provides more space and possibilities for the heat dissipation design of the device.

3. PCI-E 3.0 1X: The third-generation high-speed serial computer expansion bus standard. The PCI-E 3.0 1X interface has a high data transmission bandwidth, providing physical channel support for high-speed data transmission of SSDs and is a key interface technology for achieving fast storage. Compared with the previous two generations, PCI-E 3.0 has made significant improvements in transmission speed, signal integrity, and can better support the operation of high-speed devices. Its high-speed transmission characteristics enable SSDs to fully leverage their performance advantages and provide users with a smooth data processing experience.

Product advantages:

1. Ultimate performance release: By adapting to the NVME protocol and working together with the PCI-E 3.0 1X interface, the high-performance potential of SSDs can be fully unleashed, achieving high-speed and stable data transmission. In terms of data reading, it can achieve speeds far exceeding traditional storage devices, quickly loading large files and programs; In terms of data writing, it can also quickly complete storage operations for large amounts of data. This high-speed and stable data transmission performance significantly improves the system's response speed and data processing capabilities. Whether in a multitasking environment or running large professional software, it can provide users with a smooth operating experience.

2. Flexible configuration options: Multi slot compatibility and support for multiple SSD sizes allow users to flexibly configure according to their own device situation and needs. For users who pursue ultimate performance, they can choose high-performance high-capacity 22 * 80mm SSDs, such as small laptops or mini consoles. Users can choose compact 22 * 30mm SSDs and install them on the appropriate bolts of the adapter. Whether upgrading existing devices or building new storage systems, it can easily meet the diverse needs of different users.

3. Convenient maintenance and troubleshooting: The design of LED indicator lights provides users with a convenient means of monitoring device status. During the operation of the device, users can always check the working status of the device through the indicator lights. Once a fault occurs, users can quickly determine the type and location of the fault based on the prompts of the indicator light, reducing the difficulty of equipment maintenance and troubleshooting. This not only saves users' time and energy, but also improves the availability and stability of the device, bringing users a better user experience.

Application scenarios:

1. Workstations and servers: In the application scenarios of workstations and servers, the performance and stability requirements for data storage are extremely high. Workstations are typically used to handle complex design tasks, scientific calculations, etc., requiring fast reading and processing of large amounts of data. The server is responsible for the data storage and processing tasks of the core business of the enterprise, and the security and stability of the data are crucial. Our adapter can meet the fast read and write requirements of large amounts of data, providing efficient support for server data processing, storage and backup work, and ensuring the stable operation of business. For example, in servers in the financial industry, they can quickly process large amounts of transaction data; In the workstations of research institutions, complex data analysis and simulation calculations can be supported.

2. Creative design work: For creative design work such as video editing and 3D modeling, fast data reading and writing are crucial. In the process of video editing, it is necessary to frequently load and process high-definition video materials. If the storage speed is slow, it will cause lag and delay, affecting creative efficiency. By using our adapter with high-performance SSD, we can significantly reduce material loading and rendering time, allowing creative designers to create more smoothly. In the field of 3D modeling, it is also possible to quickly load complex model files, preview and adjust model effects in real-time, and improve creative efficiency and quality.

3.Gamers: In the gaming industry, fast game loading speed and smooth running experience are the goals pursued by players. Adapting adapter cards to high-speed SSDs can significantly improve game loading speed and reduce lag. In large-scale online games, it is possible to quickly enter the game scene and avoid missing battle opportunities due to long loading times; In single player games, players can also immerse themselves in the game world faster and enjoy smoother game graphics and operation experience.

Product Summary:

Our NVME protocol SSD adapter provides users with a professional and efficient storage expansion solution with its excellent design, wide compatibility, outstanding performance, and convenient status indication function. Both professional data processing scenarios and individual users pursuing ultimate performance can derive value from this product. Choose our adapter and embark on a new chapter of efficient storage, making data processing easier and faster.
