M.2 NGFF PCI-e SSD to PCI Express 3.0 x4 Host Adapter Card - Support M.2 PCIe (NVMe or AHCI) Type 2242 2260 2280.

Introduction:

1.Allows user to use standard PCIE bus M.2 SSD to PCIe x4 in the desktop or Laptop.

2.Transparent to the operating system and does not require any software drivers.

Product specifications:

1.Does not support B Key ,B+M Key M.2 SATAIII SSD, only Supports M.2 Key M Card Type.

2.M.2 SSD to PCIe X4 adapter.

3.M.2 Specification Revision 1.0.

4.Support 2242/2260/2280 type M.2 Card dimension.

5.Support M.2 Socket 3 PCI-e-based SSD Module.

6.Support PCIe Gen3 x4.

7.Supports any OS like Windows, Mac and Linux.

8. Supports industrial operating temperature range: -40 - 85 ºC.

Product overview:

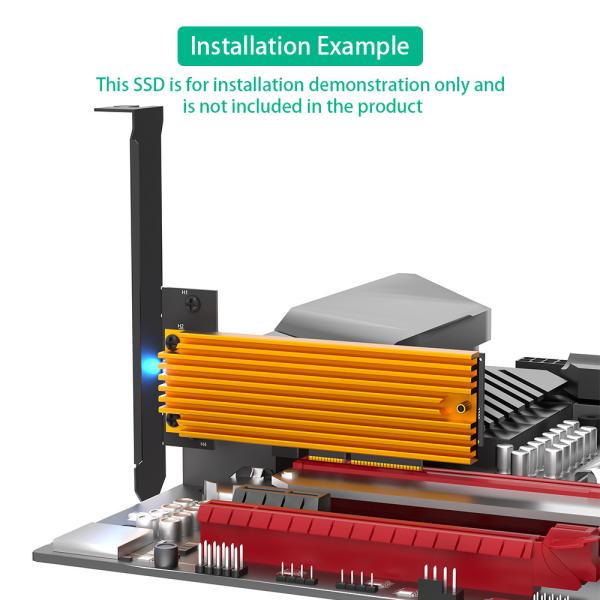

This hard drive adapter board is a high-performance storage device connectivity solution that connects NGFF (M.2) Key M interface hard drives with PCI-E X4 3.0 interface, providing users with powerful data storage and transfer capabilities.

Product Features:

1.Excellent interface compatibility.

Equipped with NGFF (M.2) Key M slot, it is widely compatible with various hard drives that use this interface, providing users with great flexibility in hard drive selection.

Can be transferred to the PCI-E X4 3.0 interface, fully leveraging the high-speed transmission advantages of the PCI-E interface. The PCI-E X4 3.0 interface theoretically provides up to 4Gbp/s bandwidth, which significantly improves data transfer speed compared to traditional SATA interfaces. This enables the hard drive to read and write data faster, meeting the high demand for data transfer speed in application scenarios.

2.Multi size hard drive support:

The product supports three common hard drive sizes: 2242mm, 2260mm, and 22 * 80mm. Whether pursuing small and portable devices or systems that require larger storage capacity, users can choose the appropriate size of hard drive for installation according to their actual needs. This multi size support enhances the versatility of the product and is suitable for various types of devices and application scenarios.

3.Efficient heat dissipation design:

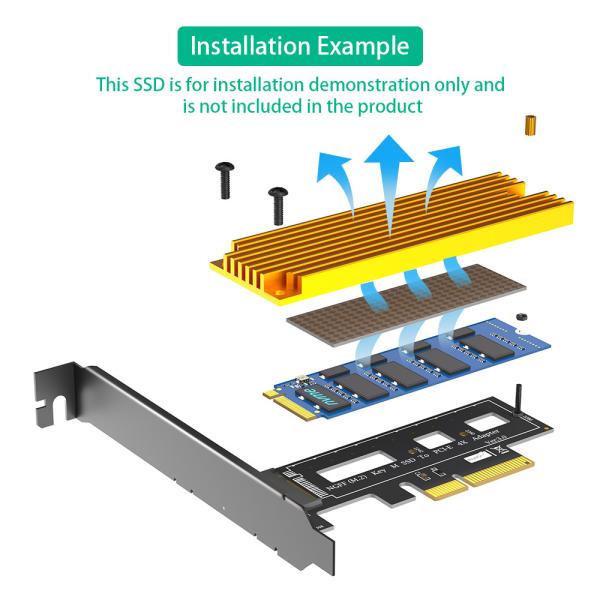

Above the adapter board, there are professional hard drive cooling pads and heat sinks. The heat dissipation pad can effectively conduct the heat generated by the hard drive, while the heat sink quickly dissipates the heat through air cooling or other heat dissipation methods.

Good heat dissipation performance can ensure that the hard drive maintains a stable operating temperature during long-term operation, preventing performance degradation, data loss, and even hardware damage caused by high temperatures. This is particularly important for devices that require continuous operation, extending the lifespan of the hard drive and improving system reliability.

4.Wide temperature adaptability:

The product can operate normally in extreme temperature environments ranging from -40 degrees Celsius to 85 degrees Celsius. This feature makes the adapter board suitable for various harsh working environments, such as industrial control, outdoor equipment, vehicle systems, etc.

In low-temperature environments, the electronic components and hard drives of the product can maintain good performance and will not malfunction due to cold. In high temperature environments, the cooling system can effectively dissipate heat and ensure the stable operation of the hard drive. This wide temperature adaptability provides reliable protection for users' data storage in different environments.

5.Stable and reliable performance:

Using high-quality materials and advanced manufacturing processes to ensure that the product has good electrical performance and mechanical stability. ​

After strict testing and quality control, it can operate stably under various complex working conditions, providing users with long-term reliable data storage services. ​

Whether in high-performance computing, data centers, or personal computers, it can meet users' high requirements for data storage.

Package contents:

1.PCI express 4x to M Key adapter x1.

2.Low Profile Bracket x1.

3. High Profile Bracket x1.

4. 1x Screw Driver.

5. M2 screw/nut x 2.

6. heatsink x1.

7.Thermal pad x1.
