Product Description:

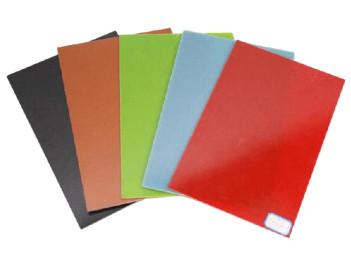

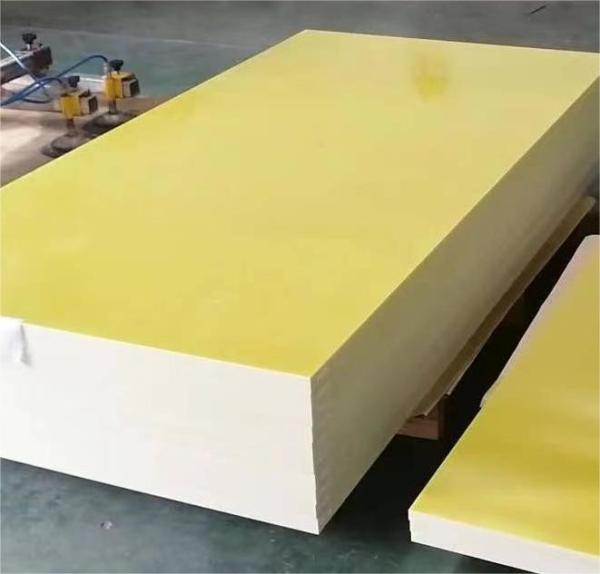

Our Electrical Insulation Plate is an ideal material for applications requiring electrical insulation and mechanical strength. It is specially designed for high voltage insulation. This high voltage insulation board is highly reliable, and can withstand high voltage up to 35kv in oil at 90℃ with parallel breakdown voltage (BDV). It also has a vertical BDV of 11.8kv/mm in oil at 90℃ and a vertical compression strength of ≥350MPa. The surface of the board is smooth and free of any significant defects. We provide different sizes of our Electrical Insulation Plate, including 1220x2040/1020x1220.

If you need high voltage insulation, our Electrical Insulation Plate is the perfect choice for your application. Our Insulating Electrical Board is highly reliable and provides great electrical insulation and mechanical strength. It can be used in a wide range of applications due to its exceptional performance in high voltage insulation.

Choose our Electrical Insulation Plate for your high voltage insulation needs. We guarantee that you will get a high quality insulating electrical board with great electrical insulation and mechanical strength. Our Electrical Insulation Plate is available in different sizes, so you can find the perfect size for your application.

Features:

• Product Name: Electrical Insulation Board
• Dielectric Constant: ≤5.5
• Characteristics: Good Electricals Stability And High Mechanical Strength
• Vertical BDV: ≥11.8kv/mm In Oil Of 90℃
• Parallel BDV: ≥35kv In Oil Of 90℃
• Shape: Plate/Sheet
• Electric Insulation Material: Yes
• Insulating Electrical Board: Yes
• Electric Insulation Material: Yes
• Electric Insulation Board: Yes

Technical Parameters:

Applications:

Electrical Insulation Plate, also known as Insulating Electrical Board, is widely used in electronics and electrical engineering. G-10 Insulation Board is a kind of Electrical Insulation Plate that is produced in China with a smooth surface and no significant defect. It has a Parallel Breakdown Voltage (BDV) of ≥35kv when tested in oil of 90℃, and it has a Vertical Compression Strength of ≥350MPa. The shape of the G-10 Insulation Board is in the form of a plate or sheet with a thickness ranging from 0.2mm to 30mm.

The G-10 Insulation Board is an excellent choice for electrical insulation applications due to its high breakdown voltage and excellent compression strength. It is perfect for applications that require an insulated board with a smooth surface and no significant defect, such as in the automotive, aerospace, and telecommunications industries. The G-10 Insulation Board is also widely used in the construction industry due to its ability to provide effective insulation against moisture and heat.

The G-10 Insulation Board is an excellent choice for anyone looking for a reliable electrical insulation product that offers superior performance and reliability. With its smooth surface, no significant defect, and high breakdown voltage, the G-10 Insulation Board is the perfect choice for any electrical insulation application. It is also a great choice for applications that require a reliable and durable product with a low-cost solution.

Customization:

• Model Number: G-10
• Place of Origin: China
• Parallel BDV: ≥35kv In Oil Of 90℃
• Water Absorption: ≤0.04%
• Characteristics: Good Electricals Stability And High Mechanical Strength
• Shape: Plate/Sheet
• Vertical compression strength: ≥350MPa

Our Electrical Insulation Board is made of high quality electrical insulation material. It is a G10 plate used for electrical insulation, with good electricals stability and high mechanical strength. It offers high parallel BDV ≥35kv in oil of 90℃, and low water absorption ≤0.04%. In addition, it has a high vertical compression strength ≥350MPa.

Support and Services:

At our company, we provide technical support and services for Electrical Insulation Board to ensure its efficiency and proper functioning. We provide professional advice and guidance on selecting the right materials and procedures for the product. Our experienced team is trained to provide the best customer service and can provide you with information about proper maintenance and operation of the product. We also offer installation services for the product, as well as troubleshooting and repair services if needed. We can also provide regular maintenance and inspection services to ensure that your product is working correctly and safely.

Our team of professionals is ready to provide you with any assistance you may need to ensure that your Electrical Insulation Board is installed and functioning properly. We are committed to providing you with the highest level of customer service and satisfaction and will work hard to ensure that you are satisfied with our products and services. If you have any questions or concerns, please do not hesitate to contact us.

FAQ:

Q1: What is Electrical Insulation Board?

A1: Electrical Insulation Board is a kind of electrical insulation material which is made of fibre glass reinforced laminate.

Q2: What is the model number of Electrical Insulation Board?

A2: The model number of Electrical Insulation Board is G-10.

Q3: What is the place of origin of Electrical Insulation Board?

A3: The place of origin of Electrical Insulation Board is China.

Q4: What are the features of Electrical Insulation Board?

A4: The features of Electrical Insulation Board are high strength, good insulation performance, high temperature resistance and good machinability.

Q5: What are the applications of Electrical Insulation Board?

A5: The applications of Electrical Insulation Board include motor insulation, transformer insulation, electrical insulation and other related insulation applications.
