22mm Triangle Led Aluminum Profile Anodized Surface With Black Sliver White Fixture
22mm Triangle Led Aluminum Profile Anodized Surface With Black Sliver White Fixture
22mm Triangle Led Aluminum Profile Anodized Surface With Black Sliver White Fixture
22mm Triangle Led Aluminum Profile Anodized Surface With Black Sliver White Fixture
22mm Triangle Led Aluminum Profile Anodized Surface With Black Sliver White Fixture
22mm Triangle Led Aluminum Profile Anodized Surface With Black Sliver White Fixture
22mm Triangle Led Aluminum Profile Anodized Surface With Black Sliver White Fixture
22mm Triangle Led Aluminum Profile Anodized Surface With Black Sliver White Fixture
Specifications
Brand Name :
ADO
Model Number :
AD-C012
Certification :
CE ROHS
Place of Origin :
China
MOQ :
10pcs
Price :
Negociation
Payment Terms :
PayPal, T/T, Western Union
Supply Ability :
10000 pcs / per day
Delivery Time :
5-7 days
Packaging Details :
100 pcs One Carton
Width :
22mm
Shape :
Tri-angle
Finished :
Anodized
Installation :
Surface Mounted
Material :
6063 Alloy
Fixture Color :
Black Sliver White
Description

22mm Corner LED Alumium Profile Anodized Surface Black Tri-angle 6063 Alloy

1. Description:

Ado LED Aluminum Profile is widely used for tie-in furniture, under cabinet,shelves, drywall, wooden partitions, the led flexible strips and rigid strips can be installed into it. The housing is aluminum 6063 aluminum alloy, with anodized aluminum for housing surface, the lenth is from 0.2m-3m, different length can be customized, The PC diffuser cover are available for clear, opal, and forsted. installation is recessed mounted and surface mounted.

2. Technical Data:

Cover Option Clear, Opal, Frosted cover
Installation Recessed, surface mounted, suspended
Size Different sizes up to 80 types, also can customize new design
Operating Temperature Range -30°C~60°C (-22°F~140°F)
Flammability V2 Fire Rating for PC Cover
UV Stability Ageing resistance
Heat Stability Under 100°C
UL94 Rating UL94V2
Grade of Aluminium 6063-T5 Anodizing
Heat Transmission properties x gK(/J01x88.0 si taeh cfiiceps muinimulA °C)
Packing Aluminum profile and cover separately packed,
or pre-installed with extra cost

3. Aluminum LED Profile Parameter:

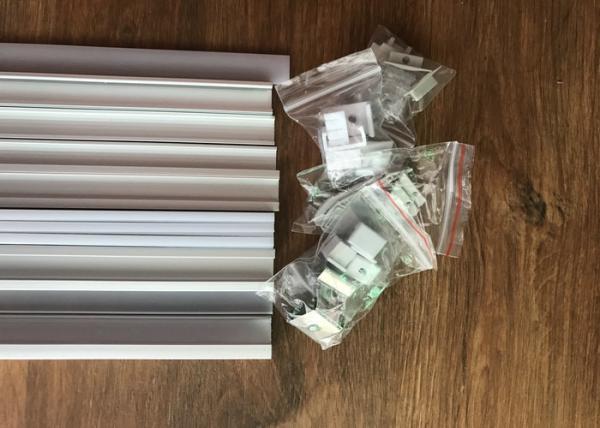

A Set Contents Led Aluminum Profile + PC Diffuser(Accessories are out of count)
Grade 6000 series
Temper T5
Color Silver(Other anodised colours on request)
Length 2m/2.5m/3m in stock(under 6m can be cut and customized)
Diffuser Choices Opal/Milky/Frosted/Clear(PMMA)

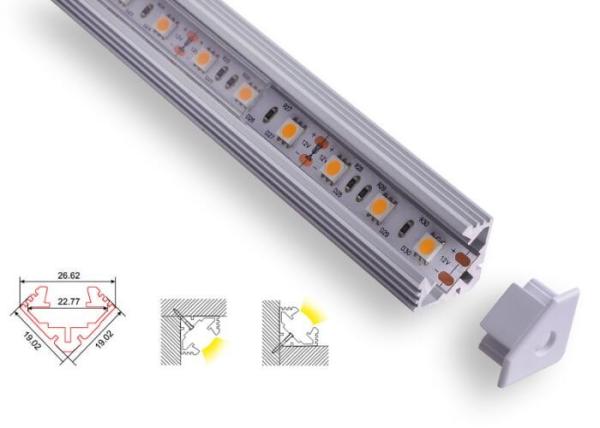

Dimensions 19.02*22.77mm
Max strip width 20mm
Weight 50PCS/CTN (2m length, ALU profile + Diffuser) , 23.80KGS/CTN
LED Strip Life 5 Million Hours
Power consumption <14.4W/m
Supply ability 3000meters/week



4. Aluminum Profile Advantages:

1. High-purity aluminum embossing or glossy reflectors, light refraction, utilization more efficient.

2. Designed for Flexible and hard led strips

3. Accessories are well-quipped.

4. Using both the hot and cold processing, have very strong corrosion resistance.

5. Standard lengths : 0.5m, 1.0m, 1.5m, 2.0m, 2.5m. Other customized length also be acceptable.

6. Perfect for back lighting and edge lighting applications.



5. Application:

1. Widely used for home decoration use, hotels, clubs, shopping malls

2. Architectural decorative lighting, boutique atmosphere lighting

3. Extensively applied in Backlighting, concealed lighting, channel letter lighting

4. Emergency & security lighting, advertisement sign lighting

5. Decorative lights for holiday, event, show exhibition

6. Features:

1. Aluminum profile can dissipate heat much better.

2. Provide three types of PC cover: Transparent cover & diffused cover & white Cover

3. Designed for flexible led strips.

4. Can be recessed mounted and surface mounted & Suspension mounted

5. High quality aluminum profile makes flex strip more elegant.

7. FAQ:

Q1. Can I get samples for led aluminum profile?
A1: 15cm-1M free samples could be offered for checking quality.


Q2: Can we order customized length over 3 meters?
A2: Sure, the MOQ need 1000pcs, and shipment only by Sea.


Q3: Do you offer complete light with strip/power supply?
A3: Yes, we also produce led strips&power supplier, welcome inquiry.


Q4: Do you have white or black color for the aluminum profile?
A4: Yes, it need to be customized, MOQ is 1000 meters.


Q5: Do you supply aluminum profile with the led strips and power supply?
A5: Of course, just need to add the labor cost for installing the led strips.

22mm Triangle Led Aluminum Profile Anodized Surface With Black Sliver White Fixture
