Small Led Slim Panel Light Square 6000k 4 Dimension With Pure Light Color
Small Led Slim Panel Light Square 6000k 4 Dimension With Pure Light Color
Small Led Slim Panel Light Square 6000k 4 Dimension With Pure Light Color
Small Led Slim Panel Light Square 6000k 4 Dimension With Pure Light Color
Small Led Slim Panel Light Square 6000k 4 Dimension With Pure Light Color
Small Led Slim Panel Light Square 6000k 4 Dimension With Pure Light Color
Small Led Slim Panel Light Square 6000k 4 Dimension With Pure Light Color
Small Led Slim Panel Light Square 6000k 4 Dimension With Pure Light Color
Specifications
Brand Name :
ADO
Model Number :
AD-EPR-SPAL-18W
Certification :
ROHS CE FCC 3C
Place of Origin :
China(mainland)
MOQ :
One Carton
Price :
Negotiation
Payment Terms :
PayPal, Western Union, T/T, L/C
Delivery Time :
5 - 8 work days
Packaging Details :
20 pieces in one carton
Model :
AD-EPR-SPAL-18W
CCT :
6000K
LED Chip :
SMD2835
Shape :
Square
Material :
Aluminum
Power :
18W
Description

18w Square Recessed Mounted LED Slim Panel Light Aluminum White 6000K SMD2835

1. Description:

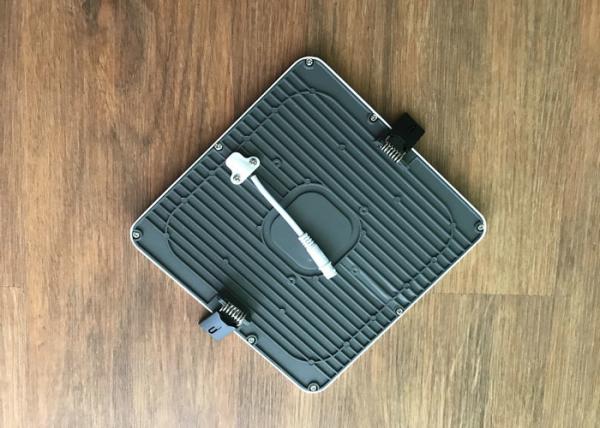

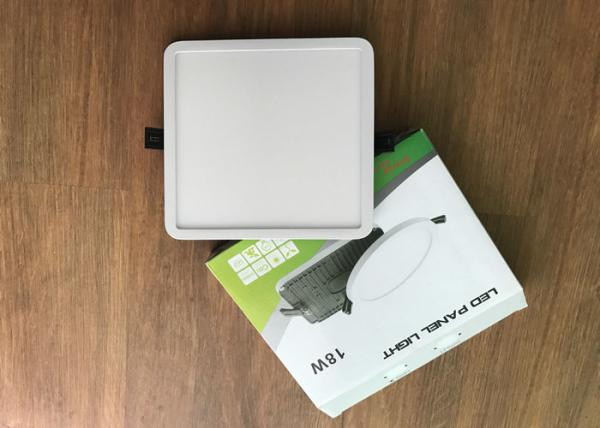

Our led slim panel light has round and square shape. The square shape has 4 different dimension, it is 90*90mm, 145*145mm, 175*175mm and 225*225mm. Power is 6w, 12w, 18w, and 24w. The housing material is die-casting aluminum, it can bring good heat dissipation. The housing color is white, also it can customize other electroplating color, like sliver, black, gold, chrome, brown and other colors you like. Another great advantage is that the housing eage is very narrow and smaller, this makes the lighting area is bigger than old led panel light. The lighting area is about 80%, more light from it, so the light output is higher than same size panel light. This is why our slim panel light is popular. Also the led driver is an important part for our slim led panel light. It is isolated, so it is safety. And IC constant current smart project, stable and long life. Defective rate is very very low.

2. Specification:

Voltage AC85-265V
Model AD-EPR-SPAL-18W
Power 18W
CCT 3000K 4000K 6000K
CRI 80Ra
LED Chip SMD2835
Lumen 1600LM
LED Driver IC constant current wide voltage
IP Level IP20
Material Aluminum


3. Technical Data:

Size(D*H) 175*8mm
Cutout size 155mm
Material Aluminum(fixture)+PMMA(LGP)
Beam angle 120°
Operation temperature -20℃~+60℃
Lighting Distance 1-4meters
Mounting height 2-3meters
Place of Origin China
Warranty 2 years
Approval mark CE RoHs
Power factor PF≧0.9
Light guide plate(LGP) brand Japan Mitsubishi
LGP thinkness 3mm
LGP technology Dot Laser
LGP light transmittance 90%
Lifespan: (LM80) 30000H


4. Features:

1. Good color rendering, soft light, uniform light spot, pure light color
2. Approval with CE, RoHS certificate and ISO 9001 quality system standards.
3. High-Luminous efficiency, 80-90Lumens/W

4. Energy-saving and environment-friendly Led Lamp

5. Dimmable type:dimmable/non-dimmable


5. Application Places:

4000K Daylight-quality Neutral/Natural White light makes products pop, shows true-to-life colors.

Commercial Applications: Showrooms • Apparel Stores • Bookstores • Office Supply and Stationary Stores • Offices • Hallways • Cafeterias • Waiting Rooms and more

Residential Applications: Kitchens • Bathrooms • Rec Rooms • Finished Basement Areas

6. Our Services:

We have nothing to offer but excellent quality, reasonable prices, fastest production time,good customer services and the efforts to benefit the environment. What we can promise are:

1. To reply to your emails in 30 mins, if not, we will inform you in advance when we can.
2. To stand on call 24 hour a day, 7 days a week, we all can speak fluent and authentic English.
3. To take care of your requests professionally with nearly 10 years' experience in LED industry.
