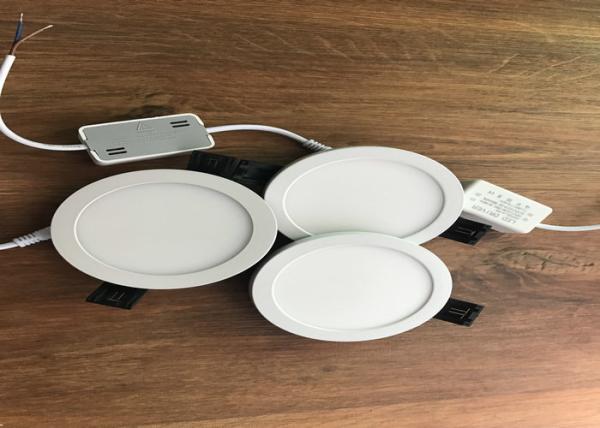

Recessed Dimmable Led Panel Light 4000k 80ra 500lm With Isolated Ic Driver
Recessed Dimmable Led Panel Light 4000k 80ra 500lm With Isolated Ic Driver
Recessed Dimmable Led Panel Light 4000k 80ra 500lm With Isolated Ic Driver
Recessed Dimmable Led Panel Light 4000k 80ra 500lm With Isolated Ic Driver
Recessed Dimmable Led Panel Light 4000k 80ra 500lm With Isolated Ic Driver
Recessed Dimmable Led Panel Light 4000k 80ra 500lm With Isolated Ic Driver
Recessed Dimmable Led Panel Light 4000k 80ra 500lm With Isolated Ic Driver
Recessed Dimmable Led Panel Light 4000k 80ra 500lm With Isolated Ic Driver
Specifications
Brand Name :
ADO
Model Number :
AD-ERP-PAL-6W
Certification :
ROHS CE FCC 3C
Place of Origin :
China(mainland)
MOQ :
One Carton
Price :
Negotiation
Payment Terms :
PayPal, Western Union, T/T, L/C
Delivery Time :
5 - 8 work days
Packaging Details :
100 pieces in one carton
Warranty :
2 years
Installation :
Recessed Mounted
Dimmable :
Yes
Driver :
Isolated IC driver
CRI :
90Ra
Diameter :
90mm
Description

Dimmable LED Panel Light 6w 12w 18w 24w Recessed Mounted 4000K 80RA 500LM

1. Description:

Dimmable LED Panel Light now is used very widely, and the triac dimmable led panel light is used more common. It is using a dimmable led driver to make the panel light lamp's light brighness can be adjusted by the original dimmer and switch. The led panel light can be brighter or darker by the dimmer. Which is easy to install, no need to change other wires. So the dimmable led driver quality is very important, it is the key point to decide the led panel light's quality and long life. Our Dimmable led panel light is adopting high quality dimmable led driver, which can pass CE, TUV and SAA.

2. Specification:

Shape: Round
Beam angle: 120°
IP rank: IP20

Model: AD-EPR-PAL-6W

Input Voltage: AC85-265V

Power: 6W

Size(mm): φ90*H8mm

Cutout size: 70mm

Rated lifetime: 50.000 hours

Housing Color: Powder painted white color

Housing Material: Aluminum

Operation temperature: -20℃~+60℃

Type: Smart IC Isolated constant current

Dimmable: Yes

LGP thinkness: 3mm
LGP technology: Dot Laser
LGP light transmittance: 90%

3. LED Chip Information:

LED Brand: Taiwan Epistar
LED Chip: SMD2835
LED Type: 0.2W
LED Lumen: 24-26LM
LED Quantity: 30pcs
CCT: 3000K / 4000K /6000K
Lumen: 500LM
Color Rendering Index: 80RA
Life Span 50,000 hours

4. Advantages:

1. Dimmable LED Driver is Isolated IC Constant Current, it is cover temperature protection, and anti-lightning strike, also cooling by free air circuit protection. It is very intelligent and stable project.

2. LED Chip is from Taiwan Epistar, it is SMD2835. The led light souce lumen is 22-24LM, power is 0.2w,
high brightness with low decay. High CRI more than 80Ra.

3. This dimmable led panel light is that the housing edge is very narrow, it makes the lighting area is bigger than old panel light, the lighting area is more than 90%, then lighting brightness is higher than old led panel light.

5. Other Model Item:
Model Shape Color Size (D*H) Cut-out Size
AD-EPR-PAL-6W Round W, WW, NW Φ90*H8mm 70mm
AD-EPR-PAL-12W Φ145*H8mm 125mm
AD-EPR-PAL-18W Φ175*H8mm 155mm
AD-EPR-PAL-24W Φ225*H8mm 205mm

6. Features:

1. High quality with CE,RoHS / TUV and other certificates.

2. Easy installation

3. Instant soft light with no dark spot

4. 90% Lighting Area

5. Lower heating during operation

7. Shipping & Delivery:

1. Shipping Time by Express: 3 - 7 days by DHL / UPS / Fedex

2. Shipping Time by Sea: Nearly one month

3. Delivery for samples: 3 - 5 days

4. Delivery for Bulk order: 15 - 20 work days

8. Application:

1. Commercial complexes / exhibition hall
2. School, Colleges & Universities
3. Hospital / Classrooms / Underground Park


9. FAQ:

Q1: Can we get support if we have our own market position?
A1: Please inform us your detailed market demand,we will discuss and propose helpful suggestion for you, to find the best solution for you.

Q2: Is there any cheap shipping cost to import to our country?
A2: For small order,express will be the best.And for bulk order,sea ship way is best but take much time.

For urgent orders,we suggest via air to airport.


Q3: How many days will samples be finished?And how about the mass production?
A3: Generally 5-7 days for samples making. The leading time of mass production will depend on the quantity.


Q4: What is your trade assurance?
A4: 100% product quality protection
100% product on time shipment protection
100% payment protection for your covered amount
