Specifications
Brand Name :
ADO
Model Number :
AD-SPN04-5W
Certification :
CE ROHS
Place of Origin :
China
MOQ :
One Carton
Price :
Negotiation
Payment Terms :
T/T, Paypal, Western Union
Supply Ability :
10,000 pcs per day
Delivery Time :
3-7 work days
Packaging Details :
100 Pieces One Carton
Voltage :
DC12V
Power :
5Watt
Lumen :
400LM
Material :
Aluminum
CCT 3000K :
Yes
Driver :
Dimmable
Description

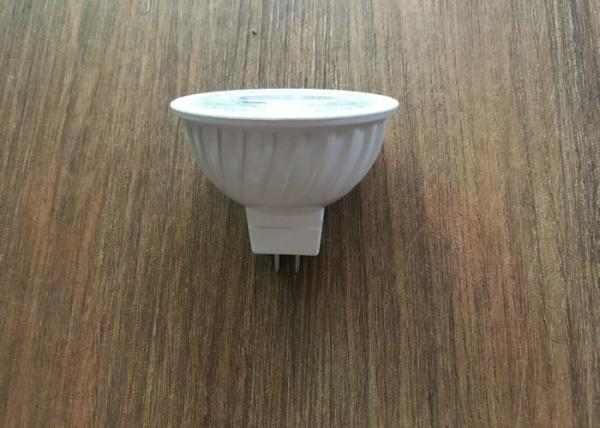

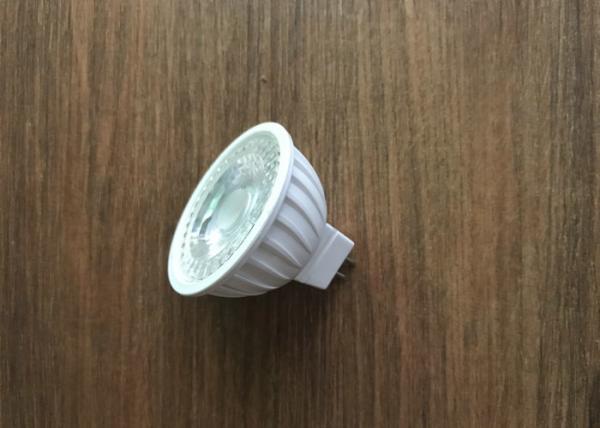

Dimmable DC12V 5Watt LED Spot Bulbs MR16 400LM Aluminum 3000K

1. Description:

This LED Spot Bulbs are made of led driver, led chip, aluminum housing, base, and optical lens, each part is important, which can consist of a good quality product.

1. This LED Spot bulbs Light housing color is white, material is die-casting material. The housing color also can be black.
2. LED Driver is Isolated IC Constant Current Wide Voltage AC85-285V, which is more safer. prevent from short circuit. It is very intelligent and stable project.
3. LED Chip is from Taiwan Epistar, it is SMD2835. The led light souce lumen is 22-24LM, power is 0.2w,
high brightness with low decay. It brings high efficiency of our led spot bulbs, up to 5W for 400LM.

4. The aluminum housing bring good heat dissipation, coolling effect is great.

5. The base is MR16, also can make GU10, E27, international base, can replace old lamps.

6. Optical lens make the beam angle is different, can choose from 30 degree, 45 degree, 60 degree,

2. Advantages:

1. Environmental-friendly: No UV or IR radiation, low heat radiation, mercury free, no polluting materials in the process of using;

2. Made of super brightness LED from quality Taiwan and USA chips. And special optical design.
8.The best service for transparent led candle lighting .

3. New high efficiency constant current drive for transparent led candle lighting

4. Energy-saving: Saving 80% power than traditional incandescent lamp

5. Easy to installation, shock proof and concussion-proof
6. No danger of broken glass

7. Solid-state, high shock / vibration resistant

3. Technical Data Sheet:

Model number AD-SPN05-5W
Power 5W
Lumen 400LM
Input voltage DC12V
Base MR16
LED brand Epistar
LED light source 1W
LED Quantity 5pcs
Beam Angle 30 degree
LED Type SMD3030
Color temperature(K) 2700K 4000K 6000K
CRI(Ra) 80Ra
Shell material Aluminum
Lamp Size(mm) 50*53mm
IP rating IP20
Life span(hour) 30000 hours
Warranty 2 years
Place of Origin China
LED Driver IC constant current

4. Packing:

Packing Size Quantity
28*28*30cm 100pcs
54*28*39cm 200pcs
54*33*37cm 300pcs


5. Application:

1. Basic commercial lighting
2. Hotel lighting, shopping lighting

3. Home lighting

4. Holiday decaration lighting

5. Store lighting

6. Features:

1. Voltage: AC220V, AC110V, AC85-265V, DC12V, AC12V

2. Power: 3W, 4W, 5W, 7W

3. Color temperature: 2700-3000K, 4000-4500K, 6000-6500K

4. LED Type: COB 1W, 3W, 5W and 7W, SMD5050, SMD2835 and SMD3030

5. CRI: 80Ra or 90Ra

6. Dimmable and non dimmable version are optional

7. Beam Angle: 30 degree, 38 degree, 45 degree, 60 degree, 120 degree,

8. Housing color: white, black, grey, sliver

9. Base: GU10, MR16, E27, GU5.3

10. Material: Aluminum, Ceramic, PC.

11. Packing: Neutral white box, Neutral color box, Customize box.

12: 2 Year warrannty and 3 years warranty
