Anti Glare LED Ceiling Panel Light 18W 3 colors changing 230mm 100LM/W ABS Black housing 3mm LGP IP42 home lighting
Anti Glare LED Ceiling Panel Light 18W 3 colors changing 230mm 100LM/W ABS Black housing 3mm LGP IP42 home lighting
Anti Glare LED Ceiling Panel Light 18W 3 colors changing 230mm 100LM/W ABS Black housing 3mm LGP IP42 home lighting
Anti Glare LED Ceiling Panel Light 18W 3 colors changing 230mm 100LM/W ABS Black housing 3mm LGP IP42 home lighting
Anti Glare LED Ceiling Panel Light 18W 3 colors changing 230mm 100LM/W ABS Black housing 3mm LGP IP42 home lighting
Anti Glare LED Ceiling Panel Light 18W 3 colors changing 230mm 100LM/W ABS Black housing 3mm LGP IP42 home lighting
Anti Glare LED Ceiling Panel Light 18W 3 colors changing 230mm 100LM/W ABS Black housing 3mm LGP IP42 home lighting
Anti Glare LED Ceiling Panel Light 18W 3 colors changing 230mm 100LM/W ABS Black housing 3mm LGP IP42 home lighting
Anti Glare LED Ceiling Panel Light 18W 3 colors changing 230mm 100LM/W ABS Black housing 3mm LGP IP42 home lighting
Anti Glare LED Ceiling Panel Light 18W 3 colors changing 230mm 100LM/W ABS Black housing 3mm LGP IP42 home lighting
Anti Glare LED Ceiling Panel Light 18W 3 colors changing 230mm 100LM/W ABS Black housing 3mm LGP IP42 home lighting
Anti Glare LED Ceiling Panel Light 18W 3 colors changing 230mm 100LM/W ABS Black housing 3mm LGP IP42 home lighting
Specifications
Brand Name :
ADO
Model Number :
AD-PL-2511-18W
Certification :
CE/CB/ROHS/EMC
Place of Origin :
China(mainland)
MOQ :
One Carton
Price :
Negotiation
Payment Terms :
PayPal, Western Union, T/T, L/C
Delivery Time :
5 - 8 work days
Packaging Details :
47*33.5*48.5CM 40pcs 20kg
Type :
Grille Design
LED Driver :
Built in、Non-isolated、Constant current
LED Chip :
SANAN 2835 81*2PCS
Installation :
surface/suspended mounted
Size :
Φ230*25MM
Lumen :
100LM/W
Beam Angle :
120°
CRI :
80Ra
Material :
ABS
Color Temp :
3 colors chaning by dial switch
Description
Anti Glare LED Ceiling Panel Light 18W 230mm 3 colors chaning 100LM/W ABS Black housing 3mm LGP IP42 home lighting ​



1. Anti Glare flat panel led ceiling light Optic&Electric Parameter :

Optic&Electric Parameter
Power 18W
Driver Non-isolated,Constant current,Built-in
transfer efficiency ≥0.92
Input Voltage AC85-277V 50/60Hz
Output DC70-120V 200MA
Power Factor ≥0.96
LED Brand SANAN 2835
Color 3000-6500K
Lighting Effect ▲ 160-170LM/W
LED QTY 81*2PCS
Luminous Flux ▲ 1700-1900LM
Ra ▲ ≥80
Beam Angle 120º
Operating Temperature -40℃-50℃
Theory of Lighting LED Sidelit+LGP+Reflecting film
Whole Light Effect ▲ 100LM/W


2. Anti Glare flat panel led ceiling light Material& Physical Parameter:

Material& Physical Parameter
Material ABS injection molding
Surface Treatment Spray white/Sand black/Other
LGP 3.0MM Nanometer
Diffuser Plate 1.2MM PS
Light's Body ▲ Mold injection molding
Material of bottom ▲ ABS
Installation Way Surface Ceiling/Suspension Wire
Smart Mode Change color by dial color switch
Material of Strip Light High thermal conductivity aluminum substrate
Product's Size Φ230*25MM
Carton's Size 47*33.5*48.5CM
Package Way Natural Package/ Customize Package
N.W ( KGS) 0.46kg
QTY/CTN 40PCS
Certification CE/CB/ROHS/EMC
IP Rating IP42


3. Features:

1. 3 colors can be changed by dial color switch
2. 3 colors can be changed by dial wall switch
3. The sizes are: Φ230*25MM, Φ300*25MM, Φ400*25MM, Φ500*27MM, Φ600*27MM, Φ750*27MM
4. 18w, other powers are 24w, 30w, 40w, 50w, and 70w.
5. The fixture color can be white and black.
6. The color temperature is 3000K-6500K.
7. Installation: can be surface mounted and suspended mounted.


4. Other Models:

Model Size(mm) Lumen
AD-PL-2511-18W Φ230*25MM ±1800LM
AD-PAL66-B-24W Φ300*25MM ±2400LM/W
AD-PAL66-C-30W Φ400*25MM ±3000LM/W
AD-PAL312-B-40W Φ500*27MM ±4000LM/W
AD-PAL312-C-50W Φ600*27MM ±5000LM/W
AD-PAL612-B-70W Φ750*27MM ±7000LM/W



5. Product Certifications:


1,Product Patent No.:ZL202130302456.X
2,TUV-CB Certification
3,TUV-CE Certification
4,ERP Certification
5,FCC Certification

6. Environmental Requirement:

Storage Temperature -40℃to+70℃
Storage Humidity 10%RH to80% RH
Working Temperature -20℃to+40℃
Working Humidity 10%RH to90% RH

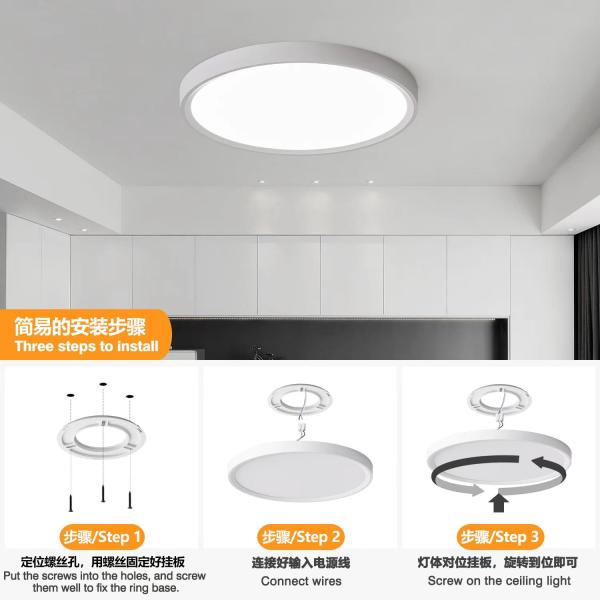

7. Surface Mounted Installation:

Anti Glare LED Ceiling Panel Light 18W 3 colors changing 230mm 100LM/W ABS Black housing 3mm LGP IP42 home lighting


8. Product detail display:

Anti Glare LED Ceiling Panel Light 18W 3 colors changing 230mm 100LM/W ABS Black housing 3mm LGP IP42 home lighting

Anti Glare LED Ceiling Panel Light 18W 3 colors changing 230mm 100LM/W ABS Black housing 3mm LGP IP42 home lighting

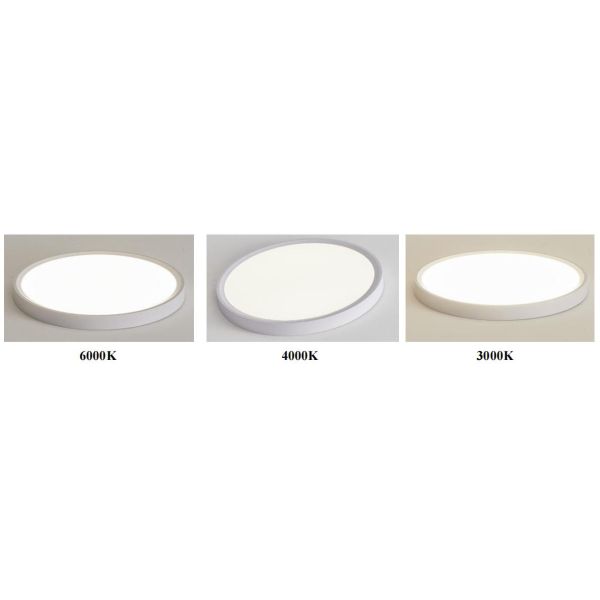

9. Lighting Effect:
Anti Glare LED Ceiling Panel Light 18W 3 colors changing 230mm 100LM/W ABS Black housing 3mm LGP IP42 home lighting

10. Optical Parameter Display

Anti Glare LED Ceiling Panel Light 18W 3 colors changing 230mm 100LM/W ABS Black housing 3mm LGP IP42 home lighting

Anti Glare LED Ceiling Panel Light 18W 3 colors changing 230mm 100LM/W ABS Black housing 3mm LGP IP42 home lighting
